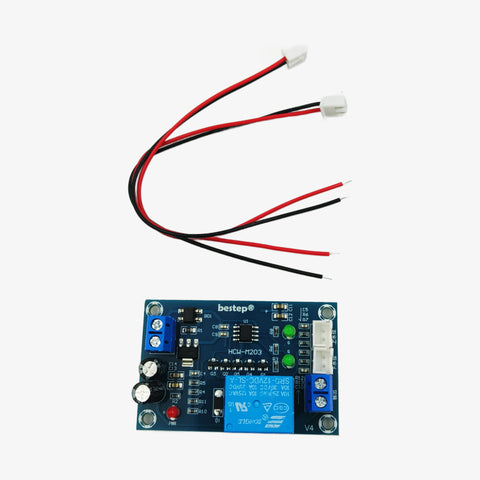

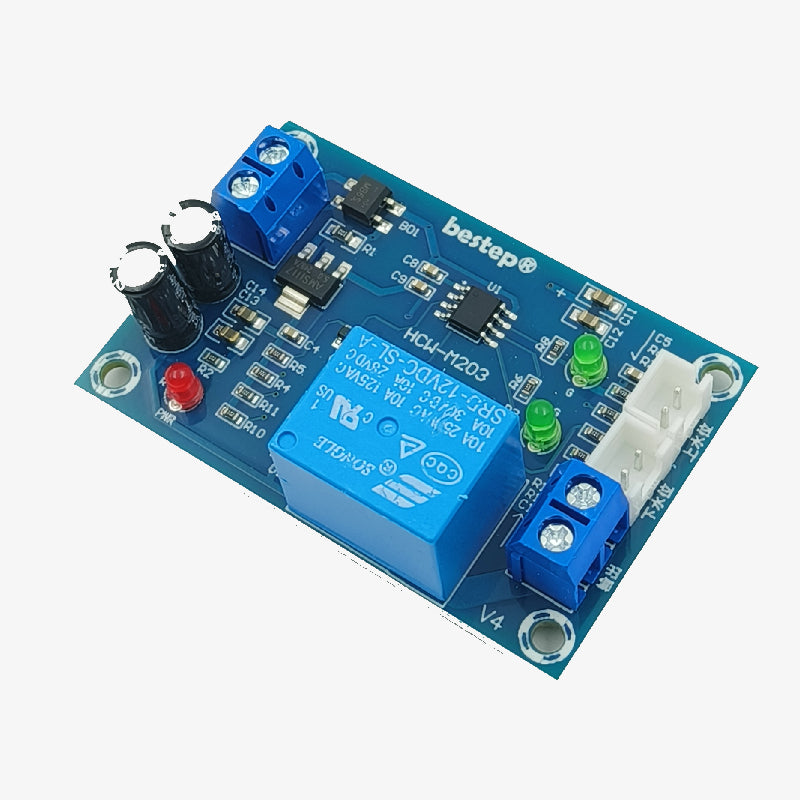

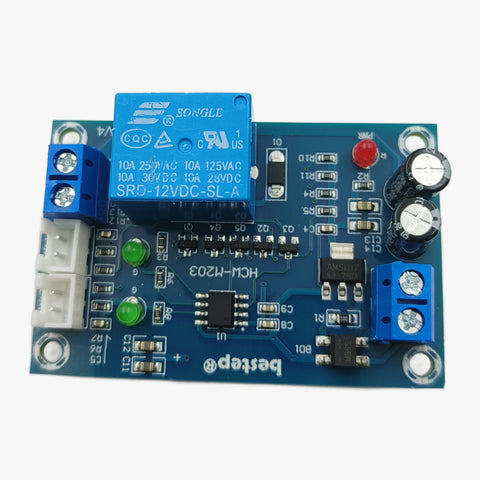

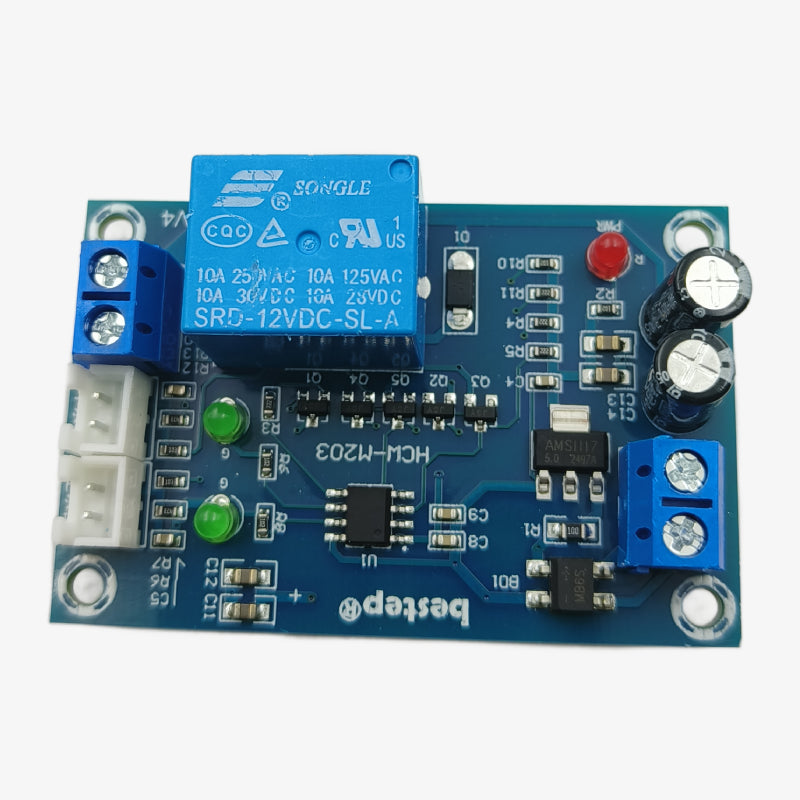

XH-M203 12V 10A Water Level Controller Module

XH-M203 12V 10A Water Level Controller Module is an automatic water level control system designed to manage water pumps based on tank levels. It operates on 12V DC and supports up to 10A load, making it suitable for controlling small to medium pumps. The module automatically turns the pump ON or OFF depending on water level detection, helping prevent overflow and dry running. It is widely used in home water tanks, overhead tanks, and industrial water systems.

Features:

1. Automatic water level detection and pump control
2. Supports up to 10A load for pump operation
3. 12V DC operation for stable performance
4. Prevents tank overflow and dry running
5. High reliability and stable switching performance
6. Easy installation with sensor probe connections
7. Compact design suitable for control panels

Specifications:

• Product Type: Water Level Controller Module
• Model: XH-M203
• Operating Voltage: 12V DC
• Max Load Current: 10A
• Control Type: Automatic Level Detection
• Relay Type: Onboard Relay
• Sensing Method: Conductive Water Level Sensor
• Mounting Type: Panel Mount or Enclosure

Applications:

• Water tank level automation systems
• Automatic pump control in homes and buildings
• Overhead and underground water tank management
• Industrial water level control systems
• Agriculture irrigation water management
• DIY automation and control projects

Package Includes:

1 × XH-M203 12V 10A Water Level Controller Module
