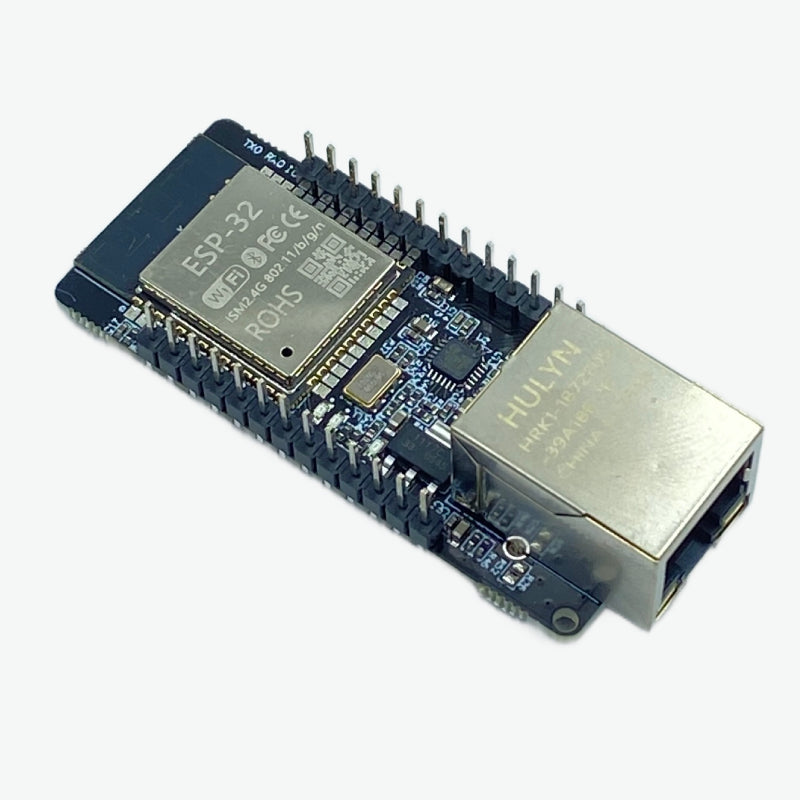

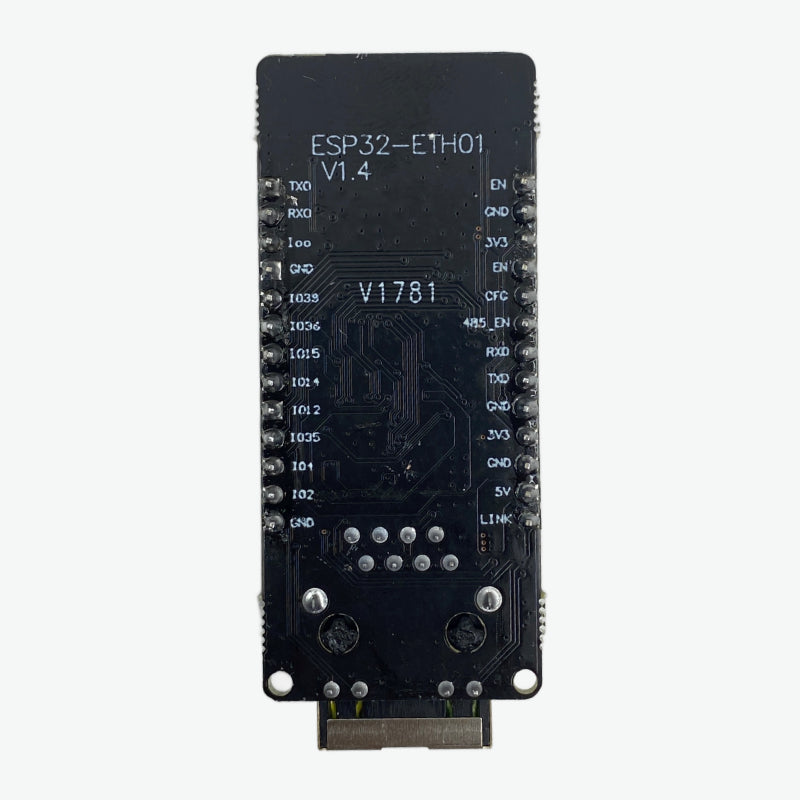

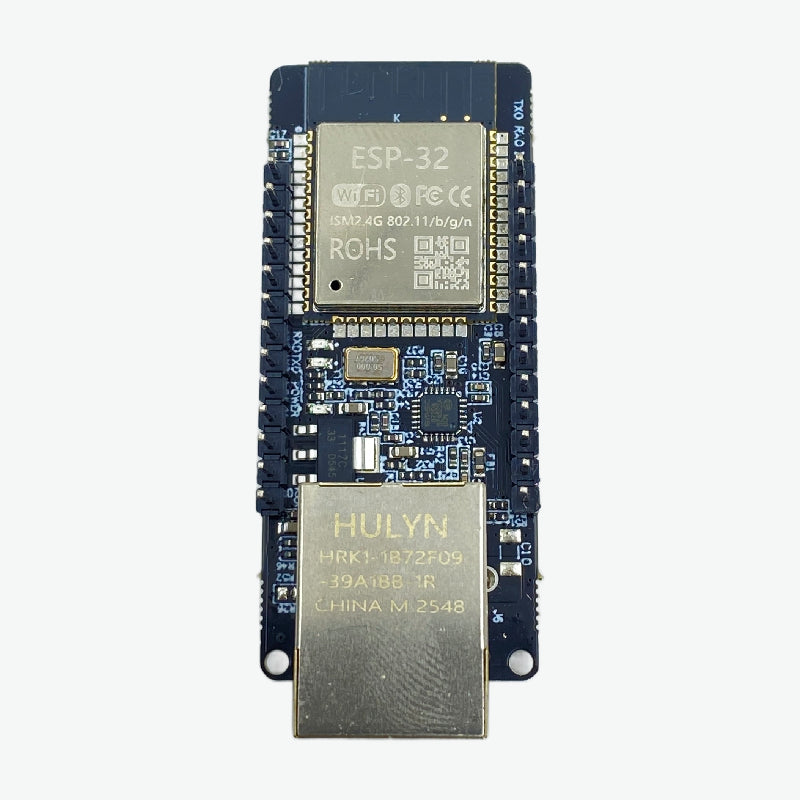

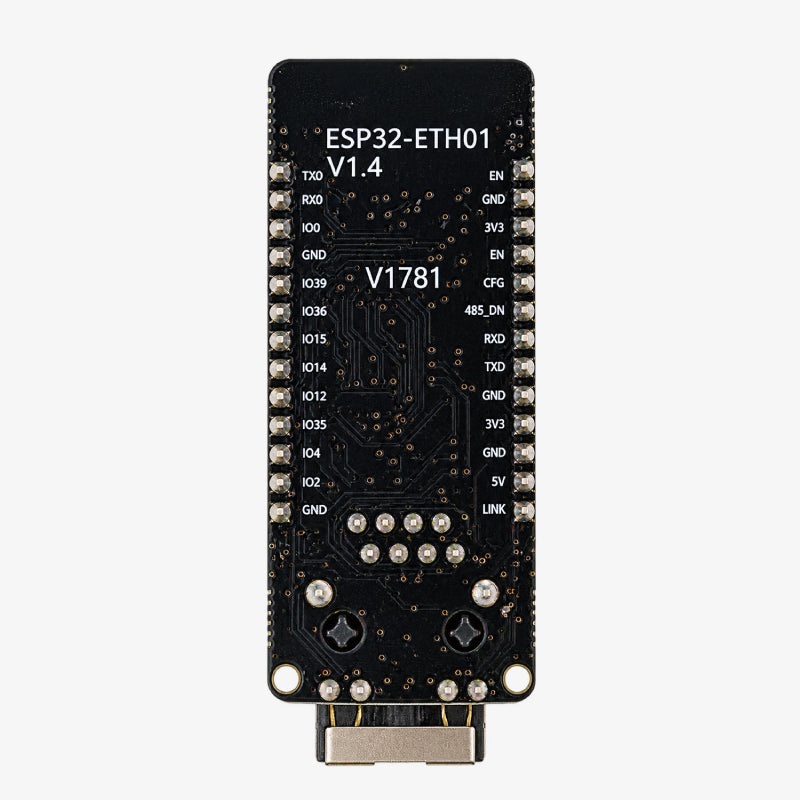

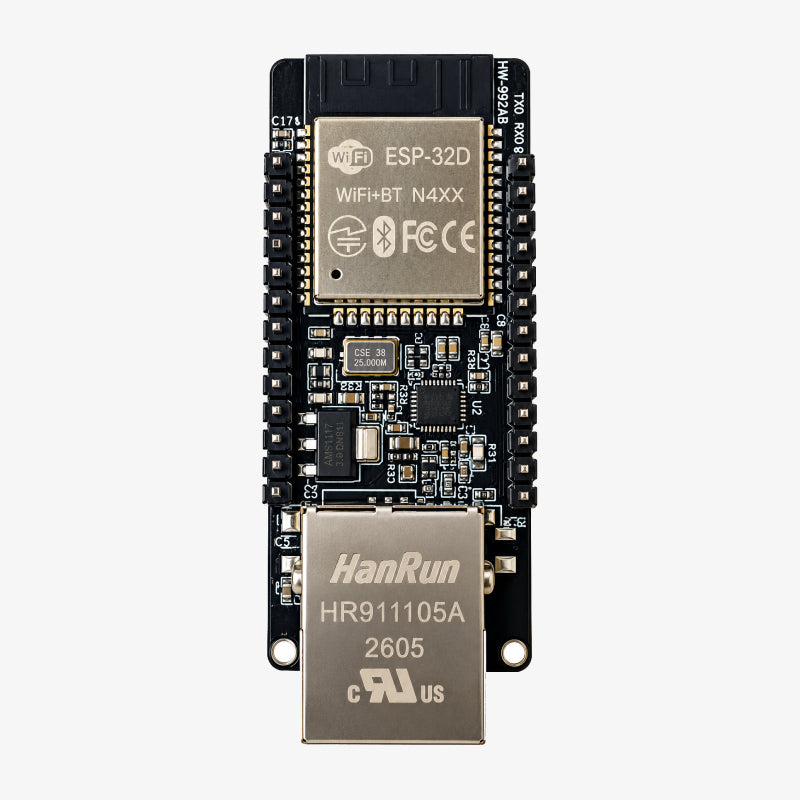

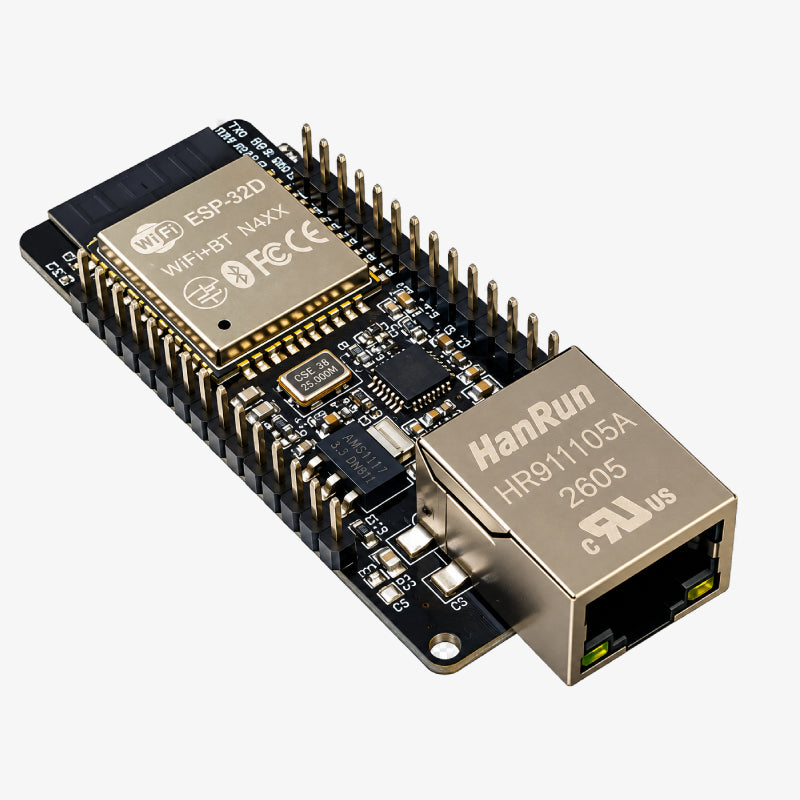

WT32-ETH01 Serial to Ethernet Module
SKU:
MOD-QC5677
Availability:
Out Of Stock
-
- Rs. 792.00
- Unit price
- per
Subtotal:
Rs. 792.00
Description
xWT32-ETH01 Serial to Ethernet Module is designed to enable reliable serial-to-Ethernet and wireless communication using ESP32, making it suitable for industrial networking and IoT applications. Ideal for data transmission, remote monitoring, and embedded networking projects.
Features:
- RJ45 Ethernet Port (10/100Mbps)
- WiFi and Bluetooth 4.2 Support
- High-Speed UART Communication
- Multiple Network Modes (TCP/UDP)
- Supports OTA Firmware Upgrade
- Advanced Security Protocols
- Flexible Power Input (3.3V / 5V)
- Suitable for Industrial and IoT Applications
Specifications:
| Parameter | Value |
|---|---|
| RF Certification | FCC / CE / RoHS |
| WiFi Protocol | 802.11 b/g/n |
| WiFi Frequency | 2.4 – 2.5 GHz |
| Bluetooth | v4.2 BR/EDR + BLE |
| Ethernet Port | RJ45 (10/100 Mbps) |
| Serial Baud Rate | 80 – 5,000,000 bps |
| Flash Memory | 32Mbit |
| Operating Voltage | 3.3V / 5V |
| Working Current | 80mA (Average) |
| Supply Current | ≥500mA |
| Operating Temperature | -40°C to +85°C |
| Network Protocol | IPv4, TCP / UDP |
| WiFi Modes | Station / SoftAP / Combo / P2P |
| Security | WPA / WPA2 / WPS |
| Encryption | AES / RSA / ECC / SHA |
| Firmware Upgrade | OTA Supported |
| Configuration | AT Commands |
Package Includes:
1 x WT32-ETH01 Serial to Ethernet Module
