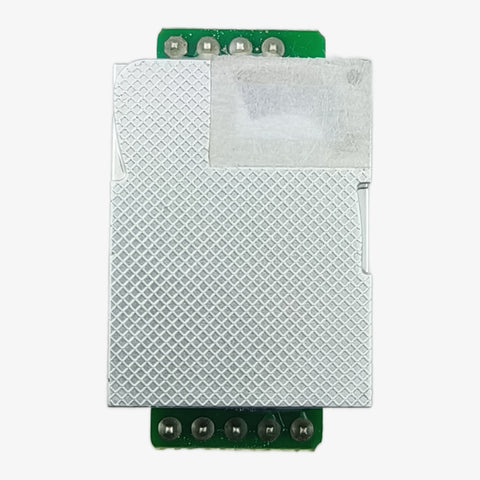

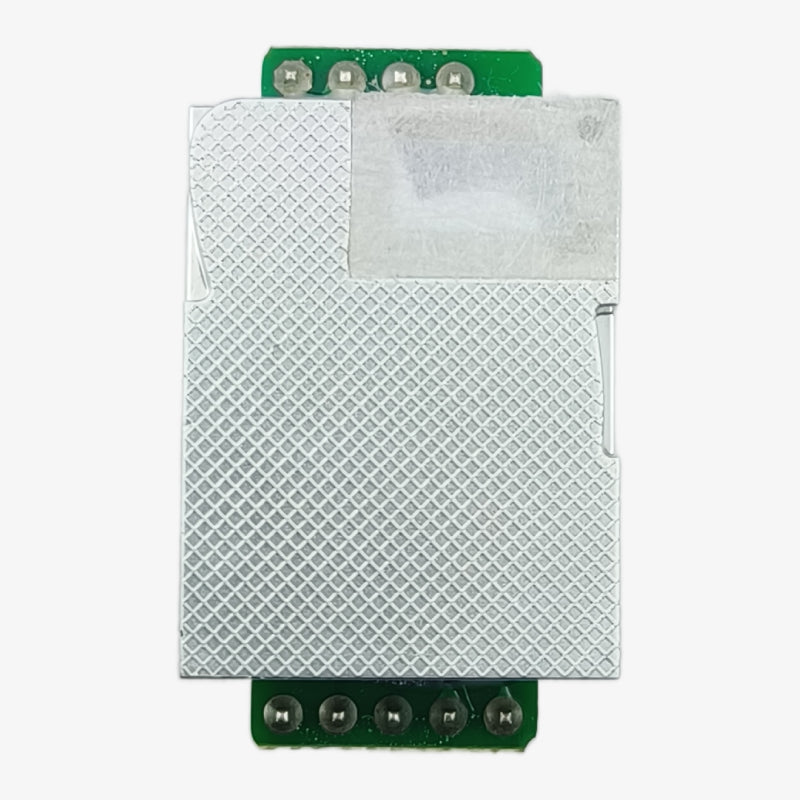

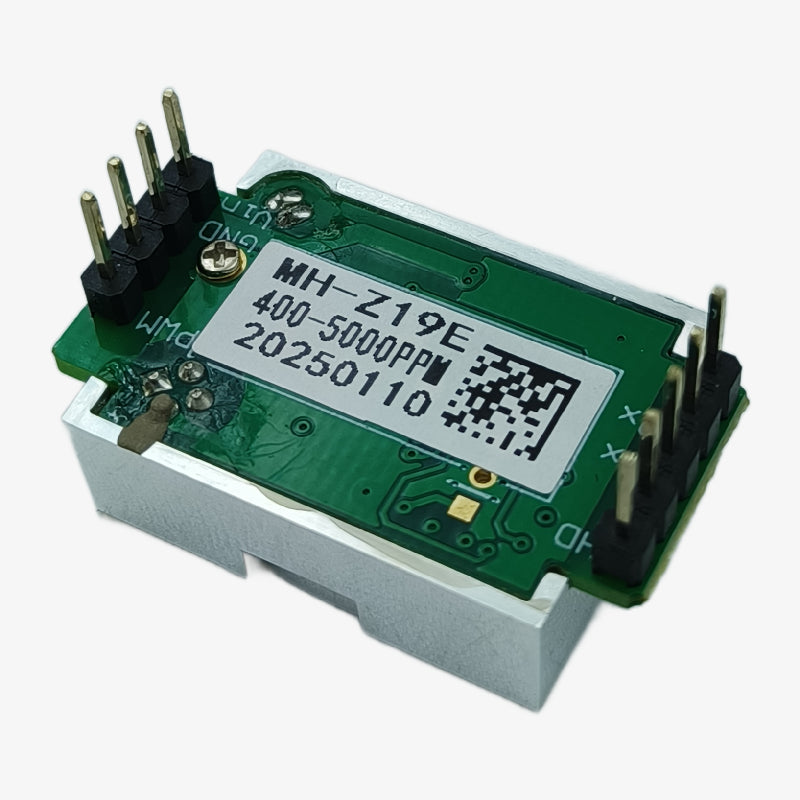

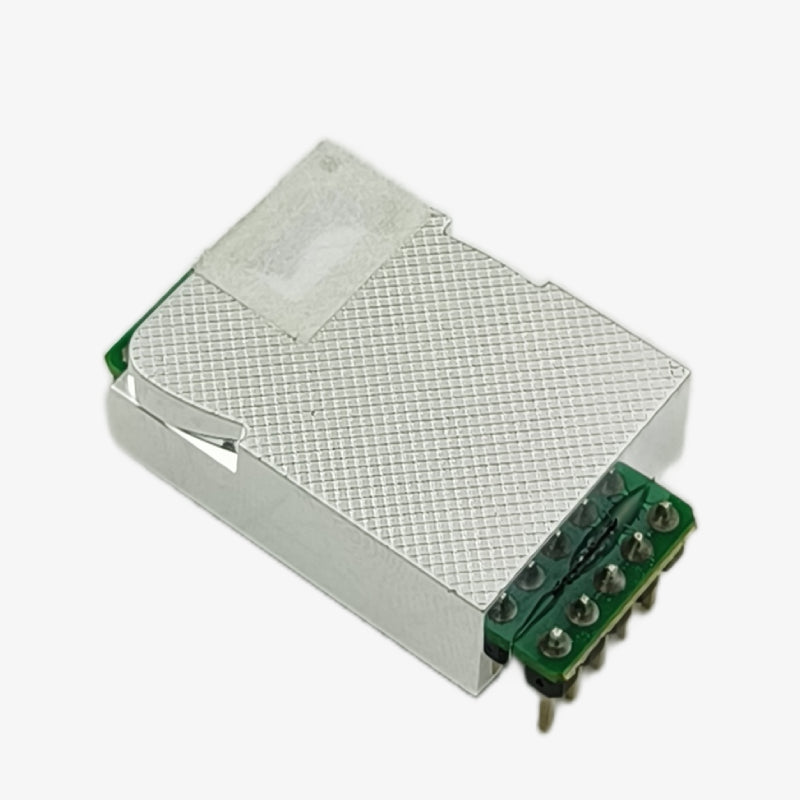

Winsen MH-Z19E NDIR CO2 Sensor Air Quality Monitoring
SKU:
MOD-QC5061
Availability:
Out Of Stock
-
- Rs. 1,530.00
- Unit price
- per
Subtotal:
Rs. 1,530.00
Description
xWinsen MH-Z19E NDIR CO2 Sensor for Indoor Air Quality Monitoring is high-precision NDIR CO₂ sensor designed for accurate indoor air quality detection. Ideal for HVAC systems, smart home devices, and environmental monitoring applications.
Features:
- NDIR (Non-Dispersive Infrared) CO₂ Detection Technology
- High Accuracy and Long-Term Stability
- Built-in Temperature Compensation
- Supports UART and PWM Output
- Low Power Consumption
- Fast Response Time
- Compact and Easy Integration
- Automatic Baseline Calibration (ABC)
Specifications:
| Parameter | Value |
|---|---|
| Brand | Winsen |
| Model | MH-Z19E |
| Detection Gas | CO₂ |
| Measurement Range | 0 – 5000 ppm |
| Output Signal | UART / PWM |
| Operating Voltage | 4.5V – 5.5V |
| Average Current | < 60mA |
| Peak Current | 150mA |
| Accuracy | ±(50ppm + 5%) |
| Warm-up Time | 3 minutes |
| Response Time | < 120s |
| Operating Temperature Range | 0°C to +50°C |
| Operating Humidity Range |
0 – 95% RH (Non-condensing) |
Package Includes:
1 x Winsen MH-Z19E NDIR CO2 sensor for indoor air quality monitoring
