Double Side PCB Prototype Board 50x70mm for ESP8266/ESP32/ESP12 Double Side PCB Prototype Board 50x70mm for ESP8266/ESP32/ESP12

QC0503

5 In stock

Rs. 228.00
-
+
Rs. 228.00
(inc. GST)

One problem with SMD components is that if we want to connect them to another board you always have to solder them to a PCB and even then, if there is less than perfect soldering then your whole module wont work as intended and you might even end up frying it. To aid rapid prototyping and testing this PCB Breadboard for WiFi module ESP8266 is available which lets you do the rapid prototyping work without must hustle. It takes out the pins of the SMD package and let it be available to be used with jumper cables to be connected with other components like sensors and other peripherals like motors and actuators. This also allows better testing and verification of the system you developed to be deployed in final product and you can also test different modules be desoldering the last one and soldering the new one on it.

Specifications

  • 5cm*7cm PCB Size
  • Low cost breakout PCB
  • 38 pins on SMD Package for support to ESP8266, ESP-32 and ESP-12
  • Double Side PCB

Product Description

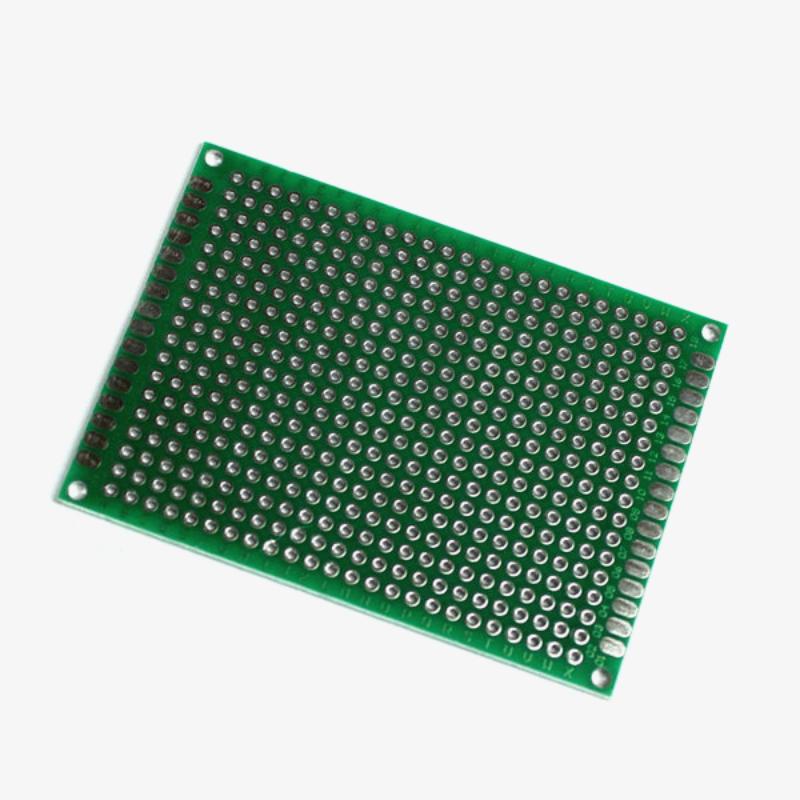

WiFi ESP8266 Double Side Prototype PCB Breadboard 50x70mm

As you can see on the figure above just like a breadboard there are internally connected rows on the PCB which can be easily used to connect more than one connection to a pin at once for rapid prototyping.

Package Contents

1× Double Side Prototype PCB Breadboard 50x70mm

One problem with SMD components is that if we want to connect them to another board you always have to solder them to a PCB and even then, if there is less than perfect soldering then your whole module wont work as intended and you might even end up frying it. To aid rapid prototyping and testing this PCB Breadboard for WiFi module ESP8266 is available which lets you do the rapid prototyping work without must hustle. It takes out the pins of the SMD package and let it be available to be used with jumper cables to be connected with other components like sensors and other peripherals like motors and actuators. This also allows better testing and verification of the system you developed to be deployed in final product and you can also test different modules be desoldering the last one and soldering the new one on it.

Specifications

  • 5cm*7cm PCB Size
  • Low cost breakout PCB
  • 38 pins on SMD Package for support to ESP8266, ESP-32 and ESP-12
  • Double Side PCB

Product Description

WiFi ESP8266 Double Side Prototype PCB Breadboard 50x70mm

As you can see on the figure above just like a breadboard there are internally connected rows on the PCB which can be easily used to connect more than one connection to a pin at once for rapid prototyping.

Package Contents

1× Double Side Prototype PCB Breadboard 50x70mm
