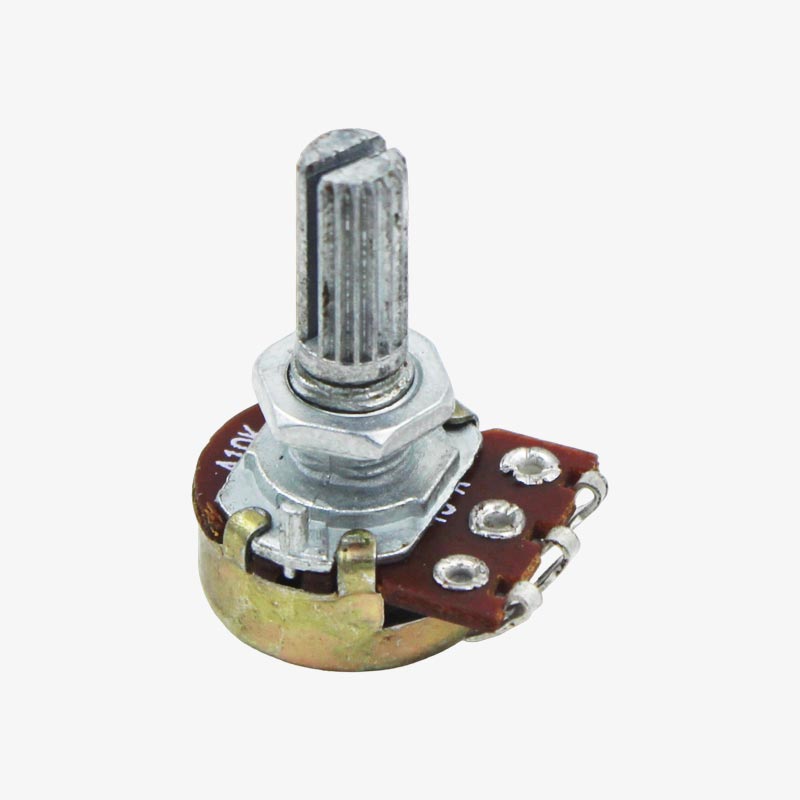

10K Ohm Potentiometer - Large 3 Pin 15mm Potentiometer 10K Ohm Potentiometer - Large 3 Pin 15mm Potentiometer

QC0527

20 In stock

Rs. 15.00
-
+
Rs. 15.00
(inc. GST)

Potentiometers are very useful in changing the electrical parameters of a system. It is a resistive type potentiometer which you can use to change RC constant of a circuit, changing the voltage level at comparator, changing the audio output volume, changing the brightness of any LCD screen, even measuring the rotary movement if it is used as a transducer, controlling the precise movement of servo motors and other control applications. This potentiometer is a rotary type resistive potentiometer where the wiper moves along the circular path and the total resistance of the resistive part is 10kΩ. It’s a 3-pin single turn type rotary potentiometer so you can not control ultra precise applications with it.

Specifications

  • Rotary type shaft potentiometer
  • 15mm shaft length
  • Total Resistance 10kΩ

Product Description

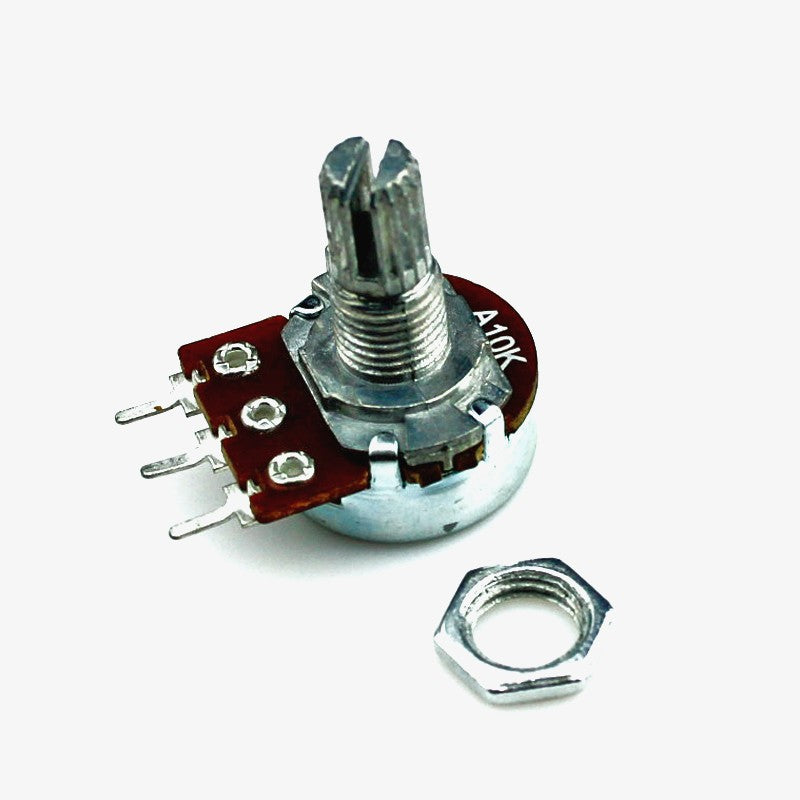

WH148 Single Potentiometer B10K 3pin 15mm

You would have to connect it to a voltage supply at abovementioned pin and connect ground to GND pin and take the output from the middle pin as shown in figure above.

Package Contents

1× 10K Ohm single 3 pin potentiometer

1× Washer

1× Nut

Potentiometers are very useful in changing the electrical parameters of a system. It is a resistive type potentiometer which you can use to change RC constant of a circuit, changing the voltage level at comparator, changing the audio output volume, changing the brightness of any LCD screen, even measuring the rotary movement if it is used as a transducer, controlling the precise movement of servo motors and other control applications. This potentiometer is a rotary type resistive potentiometer where the wiper moves along the circular path and the total resistance of the resistive part is 10kΩ. It’s a 3-pin single turn type rotary potentiometer so you can not control ultra precise applications with it.

Specifications

  • Rotary type shaft potentiometer
  • 15mm shaft length
  • Total Resistance 10kΩ

Product Description

WH148 Single Potentiometer B10K 3pin 15mm

You would have to connect it to a voltage supply at abovementioned pin and connect ground to GND pin and take the output from the middle pin as shown in figure above.

Package Contents

1× 10K Ohm single 3 pin potentiometer

1× Washer

1× Nut
