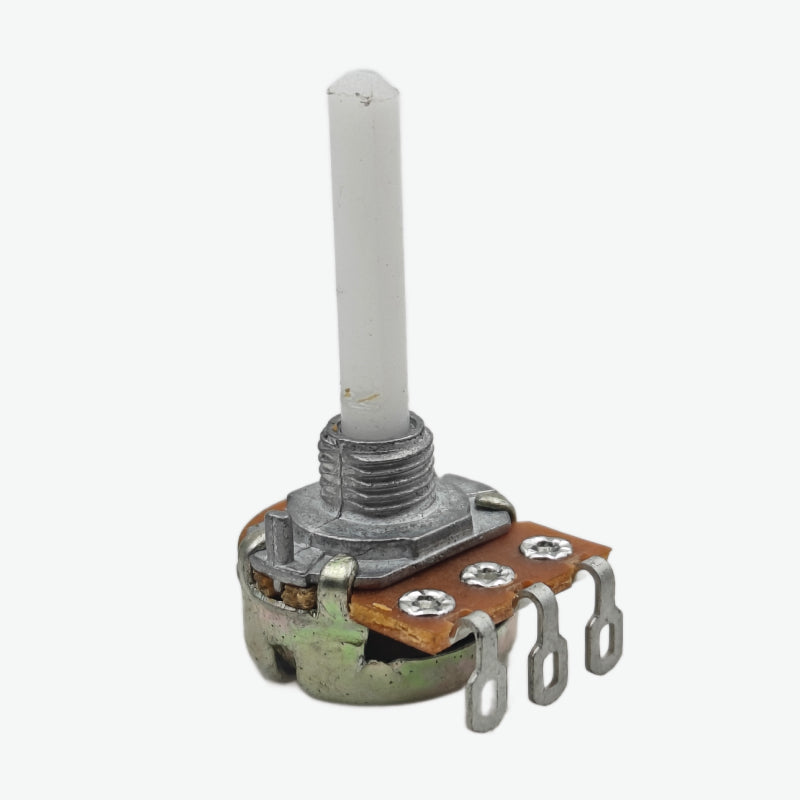

22K Ohm Potentiometer - Large 3 Pin 15mm Potentiometer
SKU:
CMP-QC0528
Availability:
189
In Stock
- Rs. 20.00
- Rs. 20.00
- Unit price
- per
Subtotal:
Rs. 20.00
Description
xPotentiometers are very useful in changing the electrical parameters of a system. It is a resistive type potentiometer which you can use to change RC constant of a circuit, changing the voltage level at comparator, changing the audio output volume, changing the brightness of any LCD screen, even measuring the rotary movement if it is used as a transducer, controlling the precise movement of servo motors and other control applications. This potentiometer is a rotary type resistive potentiometer where the wiper moves along the circular path and the total resistance of the resistive part is 22kΩ. It’s a 3-pin single turn type rotary potentiometer so you can not control ultra precise applications with it.
Specifications
- Rotary type shaft potentiometer
- 15mm shaft length
- Total Resistance 22kΩ
Product Description
You would have to connect it to a voltage supply at above mentioned pin and connect ground to GND pin and take the output from the middle pin as shown in figure above.
Package Contents
1× 22K Ohm 3 pin potentiometer
1× Nut
