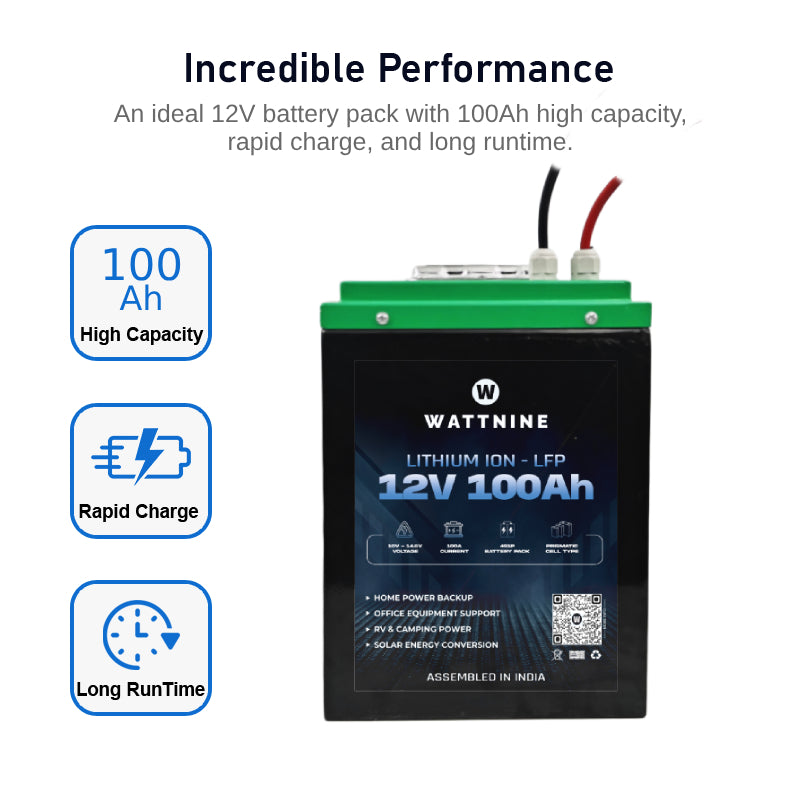

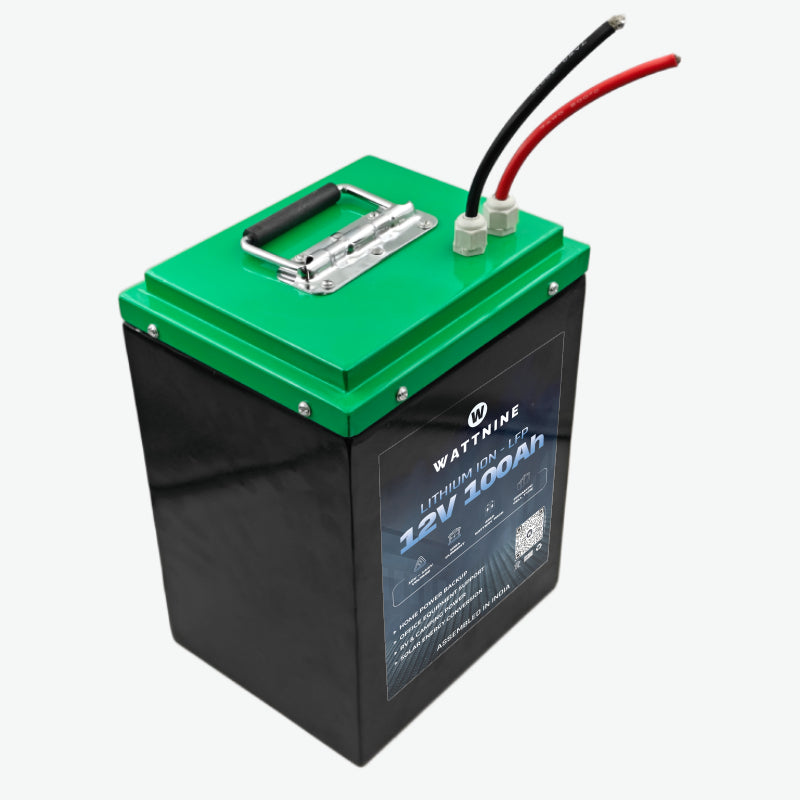

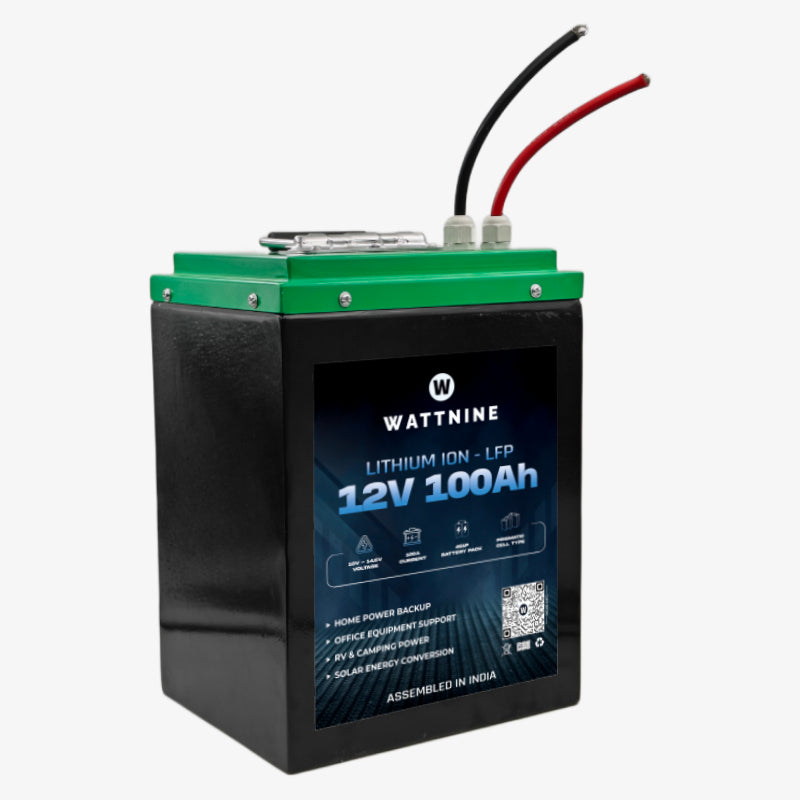

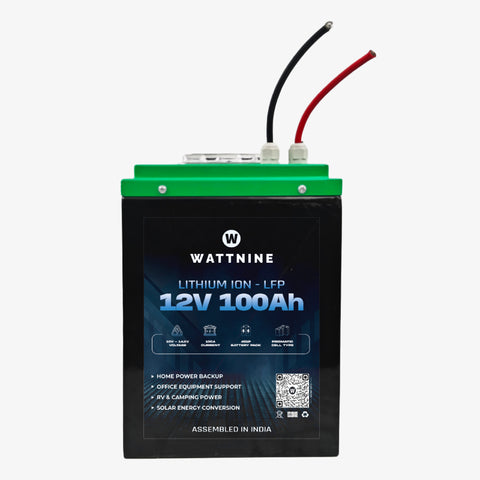

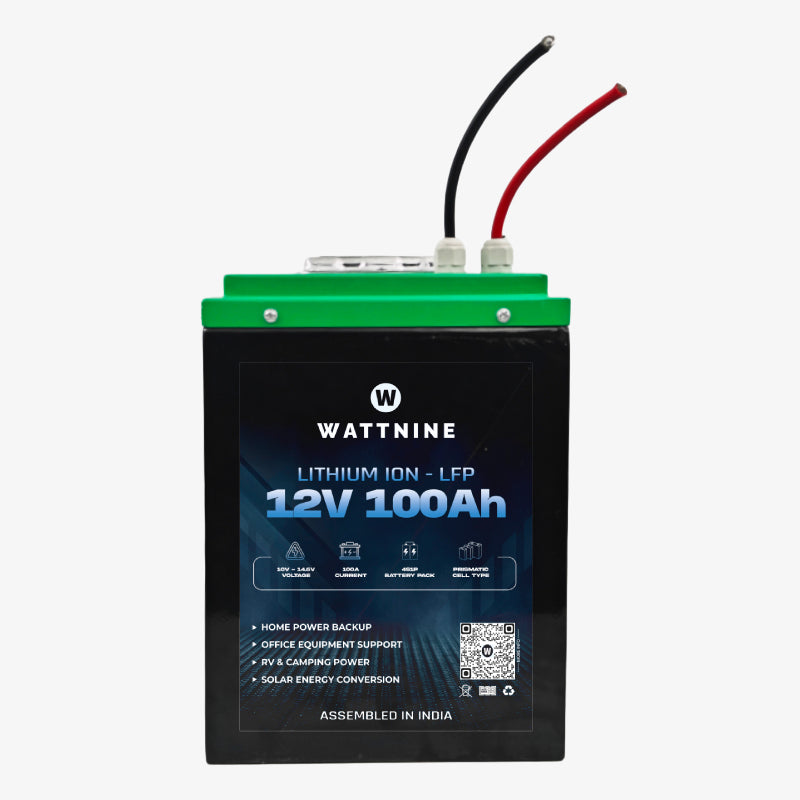

WATTNINE® 12V 100Ah Lithium LiFePO4 Battery Pack Prismatic Cell for Solar or Inverter

This Lithium Iron Phosphate (LiFePO4) Rechargeable Battery Pack has a nominal voltage of 12.8V and consists of prismatic cells configured in a 4S1P arrangement. This 12V 100Ah Lithium Inverter battery offers a high capacity of 100Ah, making it ideal for solar energy storage and inverter applications. It includes a built-in Battery Management System (BMS) that ensures protection against overcharging, over-discharging, and short circuits.

Datasheet / Specification

Specifications of 12V 100Ah Lithium LiFePO4 Battery Pack:

1. Charging Voltage - 14.6V
2. Charging Current - 20A
3. Nominal Pack Voltage - 12.8V
4. Capacity - 100Ah
5. Continuous Discharge Current - 50A
6. Peak Discharge Current - 100A

Protection (Included BMS)

• Short Circuit Protection
• Overvoltage Cut-off - 14.6V
• Undervoltage Cut-off - 10V

Note: If the battery goes into deep sleep mode due to over-discharge, the BMS may disconnect the output. To reactivate the battery, an external power source of 12.8V must be provided to wake the BMS and restore normal operation.

Applications:

• Solar Energy Storage
• Power Backup for Inverters
• Off-Grid Energy Systems
• Electric Vehicles (EVs)
• Marine and RV Applications
• UPS Systems
• Industrial and Commercial Power Solutions

Warranty Terms:

This battery pack comes with a 1+2 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged.
