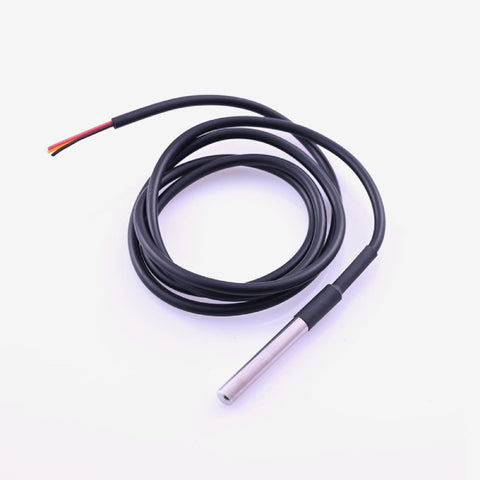

DS18B20 Waterproof Temperature Sensor Probe DS18B20 Waterproof Temperature Sensor Probe

QC0480

10 In stock

Rs. 148.00
-
+
Rs. 148.00
(inc. GST)

Temperature measurement in harsh environment like chemical storage, mines, deep soil wells is not easy and most of the temperature sensors can not withstand the intense heat and surrounding condition. This Waterproof DS18b20 Temperature Probe temperature sensor as the name suggests is waterproof and is suitable for use in harsh and dangerous environment. It can measure a wide range of temperature i.e. from -55°C to 125°C. This sensor works on 1 wire communication i.e it require only 1 wire and a pull up resistor to communicate data with the Microcontroller. As it comes in a small package so it can be used at various points to measure temperature.

DS18B20 Waterproof Temperature Sensor Probe Specifications

  • 0 to 5.5V Operating Voltage Range
  • Digital Output
  • 1 Wire Method of communication
  • Programmable output Resolution
  • Accuracy: 0.5°C

Product Description

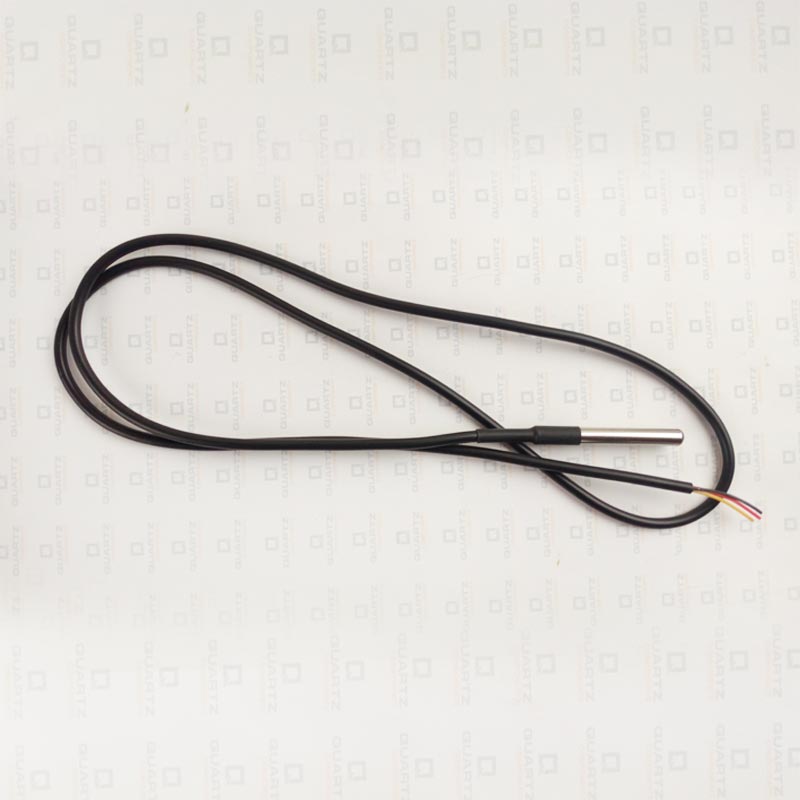

Waterproof DS18b20 Temperature Probe 18B20 Temperature Sensor

As this utilizes a 1 wire data transmission method, it has only three wires VCC, Data and GND. Connect them to the microcontroller or development board you are using and read the data with the help of the datasheet. But if you are using Arduino then there is library you can use to read the data.

Package Contents

1× Waterproof DS18b20 temperature probe 18B20 temperature sensor

Additional Resources

Datasheet of DS18B20 Temperature Sensor

Libraries and Example Project with Arduino

Temperature measurement in harsh environment like chemical storage, mines, deep soil wells is not easy and most of the temperature sensors can not withstand the intense heat and surrounding condition. This Waterproof DS18b20 Temperature Probe temperature sensor as the name suggests is waterproof and is suitable for use in harsh and dangerous environment. It can measure a wide range of temperature i.e. from -55°C to 125°C. This sensor works on 1 wire communication i.e it require only 1 wire and a pull up resistor to communicate data with the Microcontroller. As it comes in a small package so it can be used at various points to measure temperature.

DS18B20 Waterproof Temperature Sensor Probe Specifications

  • 0 to 5.5V Operating Voltage Range
  • Digital Output
  • 1 Wire Method of communication
  • Programmable output Resolution
  • Accuracy: 0.5°C

Product Description

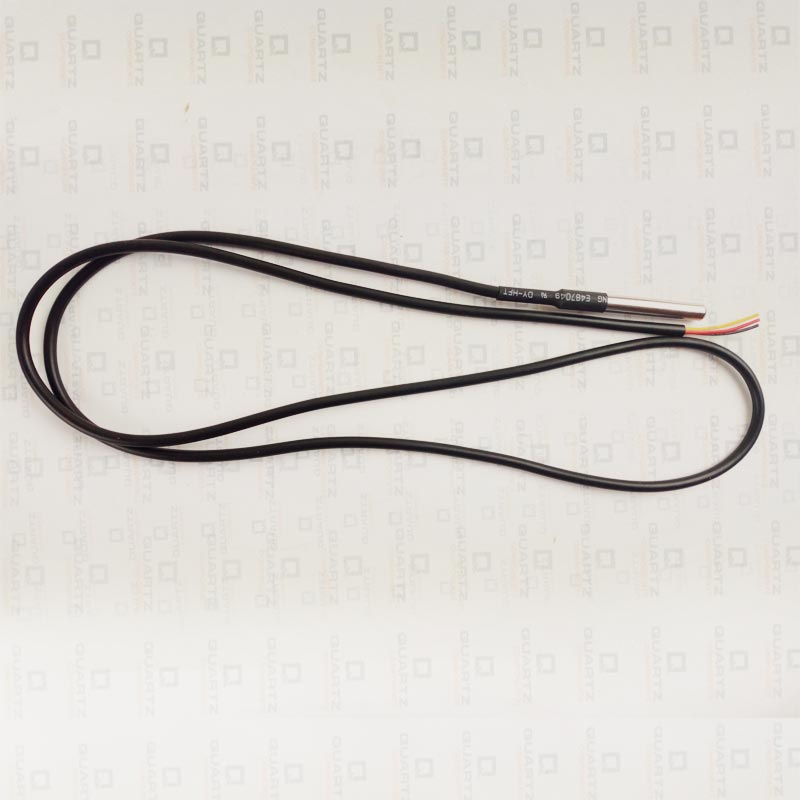

Waterproof DS18b20 Temperature Probe 18B20 Temperature Sensor

As this utilizes a 1 wire data transmission method, it has only three wires VCC, Data and GND. Connect them to the microcontroller or development board you are using and read the data with the help of the datasheet. But if you are using Arduino then there is library you can use to read the data.

Package Contents

1× Waterproof DS18b20 temperature probe 18B20 temperature sensor

Additional Resources

Datasheet of DS18B20 Temperature Sensor

Libraries and Example Project with Arduino
