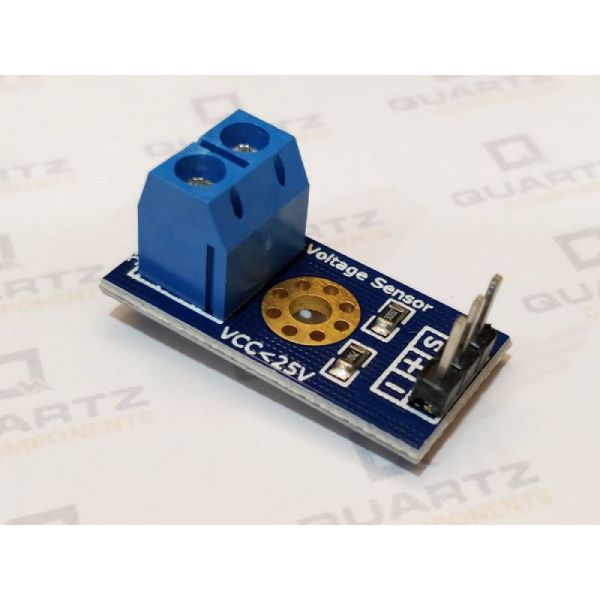

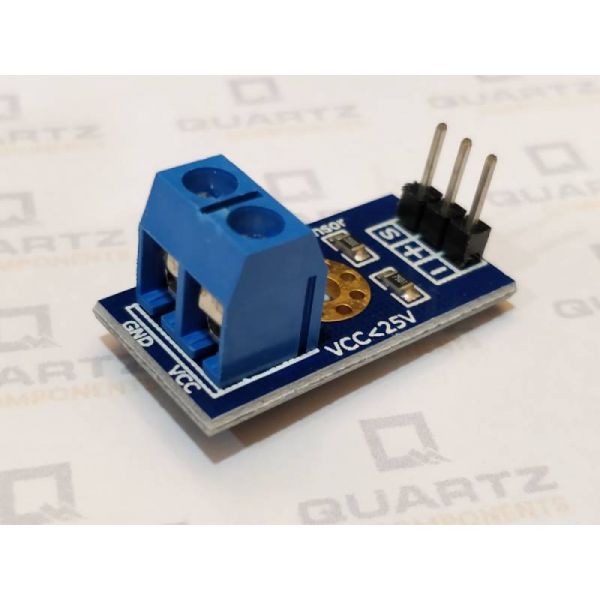

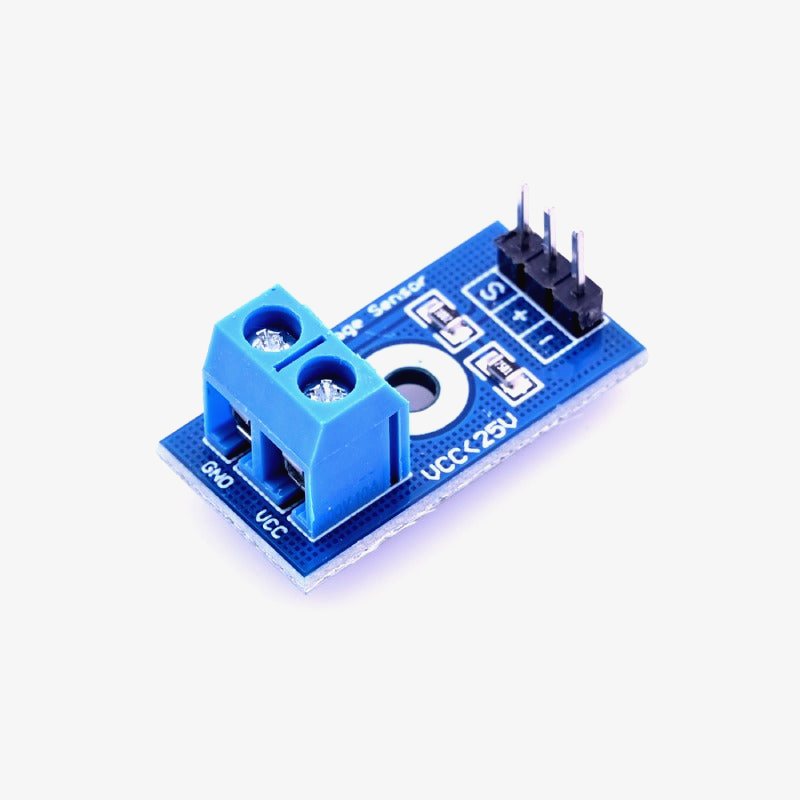

Voltage Sensor Module (0-25V) Voltage Sensor Module (0-25V)

QC0032

17 In stock

Rs. 117.00
-
+
Rs. 117.00
(inc. GST)

This is a basic Voltage Sensor module to measure the voltage across two terminals. The module operates in 5V and can measure voltage from 0V to 25V using a potential divider circuit. A pair of high precession resistors form a voltage divider circuit which converts the input 0-25V to 0-5V on the output pin of the sensor. This 0-5V can then be measured by a microcontroller like Arduino.



Do not supply more than 25V to this module as the output voltage will exceed 5V and damage the microcontroller.

Arduino AVR chips have 10-bit AD, so this module simulates a resolution of 0.00489V (5V/1023), so the minimum voltage of the input voltage detection module is 0.00489Vx5=0.02445V.



Specifications & Features

  • Input Voltage: 0 to 25V
  • Voltage Detection Range: 02445 to 25
  • Analog Voltage Resolution: 0.00489V
  • Needs no external components
  • Easy to use with Microcontrollers
  • Small, cheap and easily available
  • Dimensions: 4 × 3 × 2 cm



Package Includes

1×Voltage Detection Sensor Module



Additional Resources

Arduino Voltage Sensor Tutorial

This is a basic Voltage Sensor module to measure the voltage across two terminals. The module operates in 5V and can measure voltage from 0V to 25V using a potential divider circuit. A pair of high precession resistors form a voltage divider circuit which converts the input 0-25V to 0-5V on the output pin of the sensor. This 0-5V can then be measured by a microcontroller like Arduino.



Do not supply more than 25V to this module as the output voltage will exceed 5V and damage the microcontroller.

Arduino AVR chips have 10-bit AD, so this module simulates a resolution of 0.00489V (5V/1023), so the minimum voltage of the input voltage detection module is 0.00489Vx5=0.02445V.



Specifications & Features

  • Input Voltage: 0 to 25V
  • Voltage Detection Range: 02445 to 25
  • Analog Voltage Resolution: 0.00489V
  • Needs no external components
  • Easy to use with Microcontrollers
  • Small, cheap and easily available
  • Dimensions: 4 × 3 × 2 cm



Package Includes

1×Voltage Detection Sensor Module



Additional Resources

Arduino Voltage Sensor Tutorial
