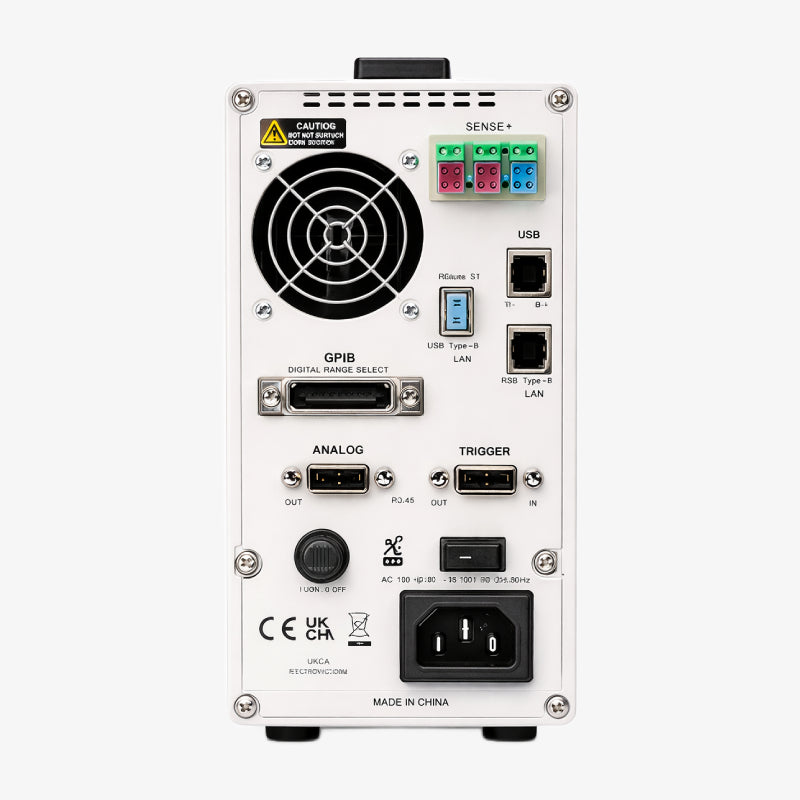

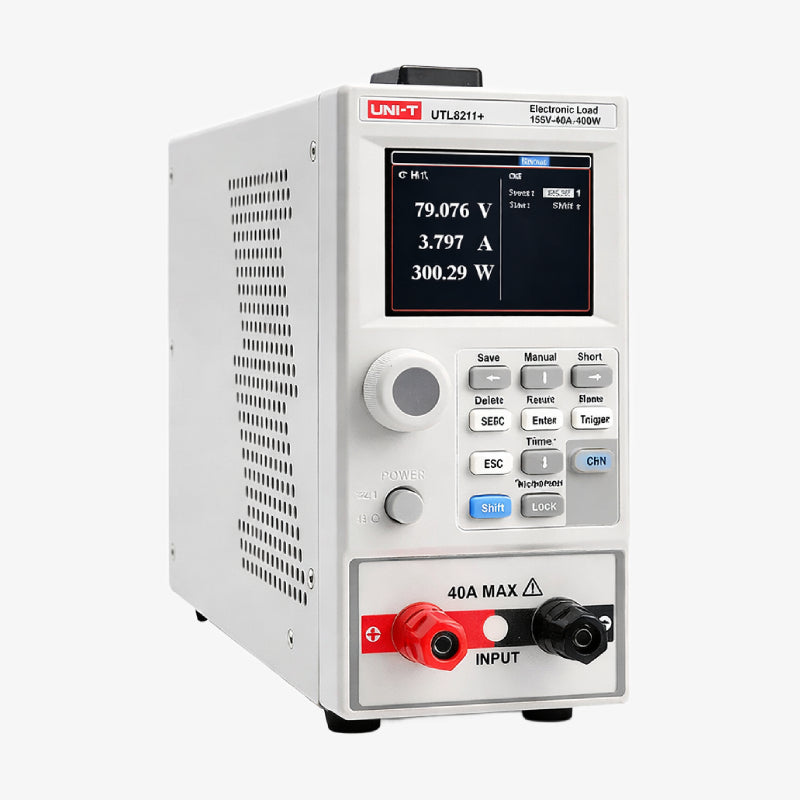

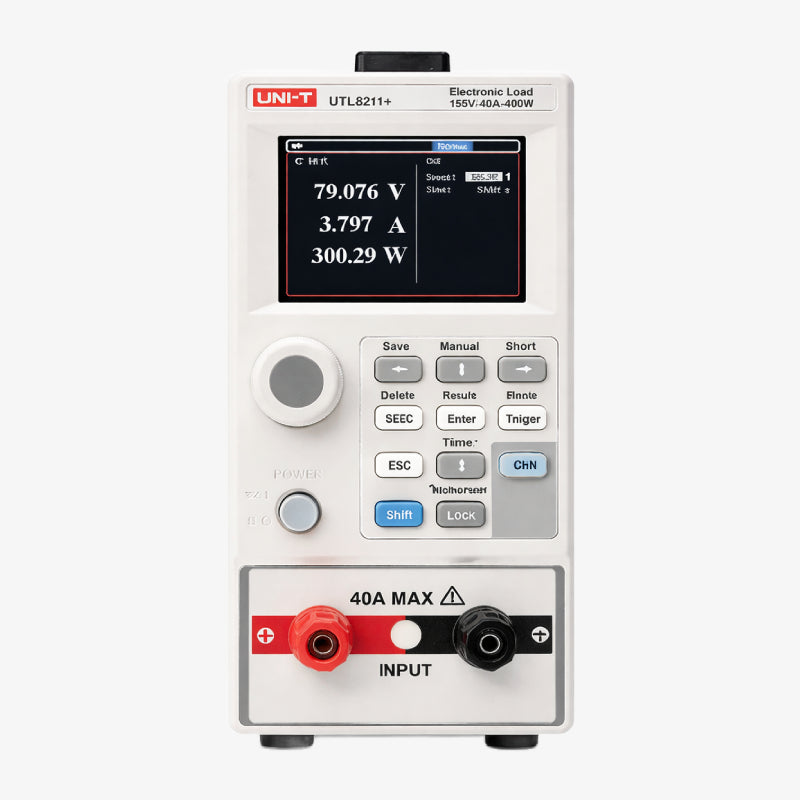

UNI-T UTL8211+ High-Precision Compact DC Electronic Load

UNI-T UTL8211+ High-Precision Compact DC Electronic Load is a versatile and high-precision DC electronic load instrument from UNI-T designed for testing and evaluating power supplies, batteries, adapters, and DC sources by simulating real-world load conditions, offering adjustable load modes, accurate measurement capabilities, robust performance in a compact form factor, and reliable operation for electronics labs, field testing, education, and industrial applications.

https://unitrend.oss-cn-hongkong.aliyuncs.com/uploads/attach/20250624/1032251480838ce9c718aca506253.pdf

Features:

1. High-precision DC load performance
2. Multiple adjustable load modes (CC, CV, CR, CP)
3. Compact and portable design
4. Clear digital display for easy reading
5. Stable and reliable operation
6. Overload and protection features
7. Suitable for lab, field, and industrial testing

Specifications:

• Product Type: DC Electronic Load
• Model: UTL8211+
• Display: Digital LCD
• 2.8-inch 24-bit true color LCD display
• UTL8211+: Single channel 150V /40A, 400W
• Maximum power 400W,maximum current 40A,maximum voltage 150V
• 4.8MHz Current-Voltage Synchronous ADC Sampling
• Single channel 400W
• 1mV/1mA measurement resolution
• Four basic operation modes CC, CV, CR, and CP
• Up to 5kHz dynamic current test
• Programmable current rise and fall rate
• Support short circuit(short)simulation function
• Support multi-mode battery discharge mode
• List mode, support automatic test, support quick uninstall
• Over-voltage, low voltage, over current, over power, overheat protection
• Power polarity reverse alarm
• Infinite servo, intelligent fan system
• Power off memory function
• Standard RS232 interface
• Standard SCPI protocol

• Applications: Power supply testing, battery testing, adapter evaluation, DC source characterization, electronics development and maintenance

Package Includes:

1 × UNI-T UTL8211+ High-Precision Compact DC Electronic Load
