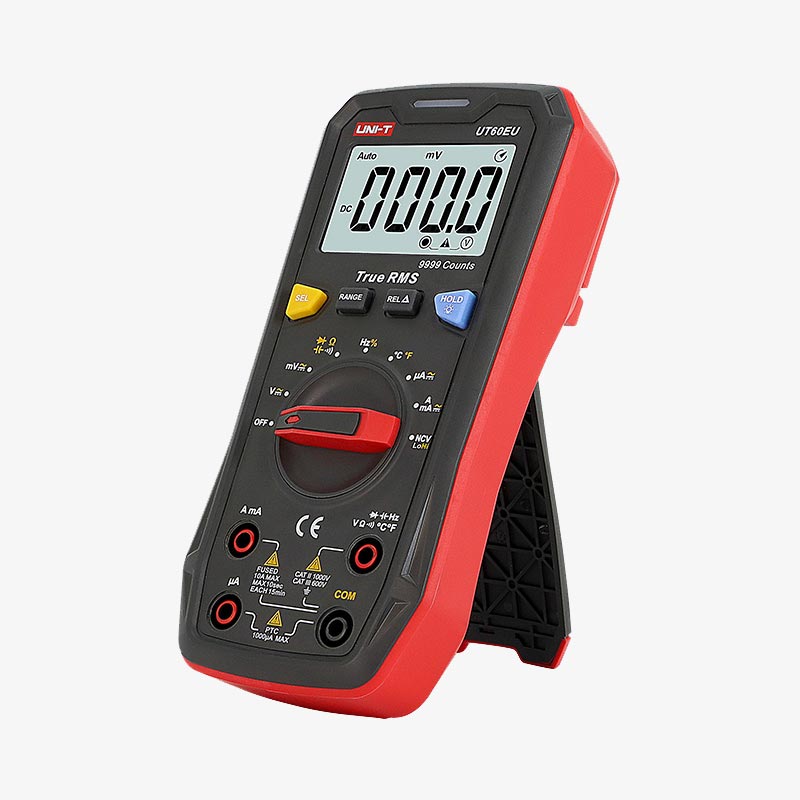

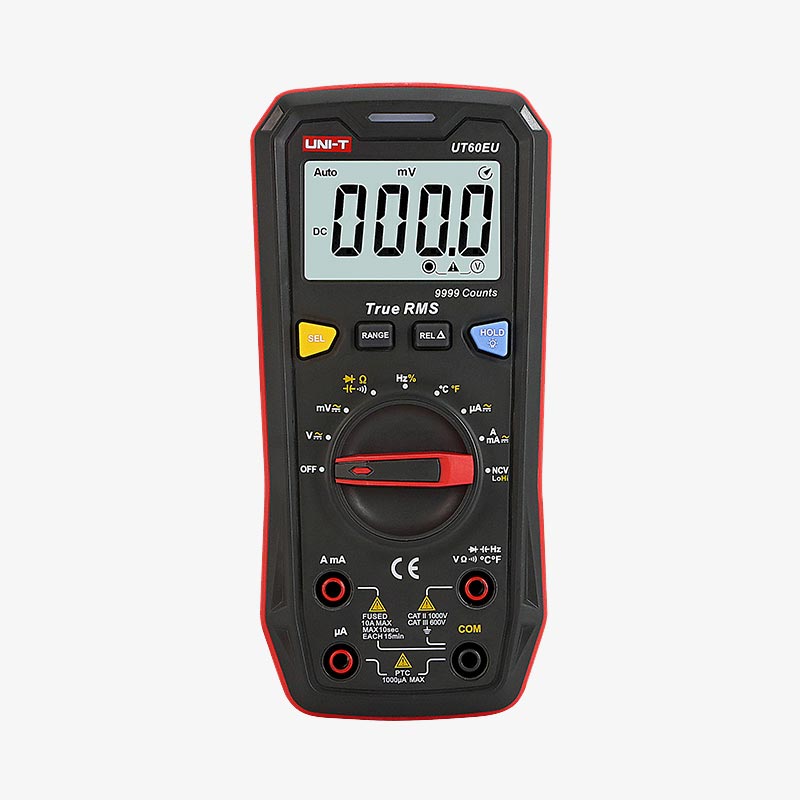

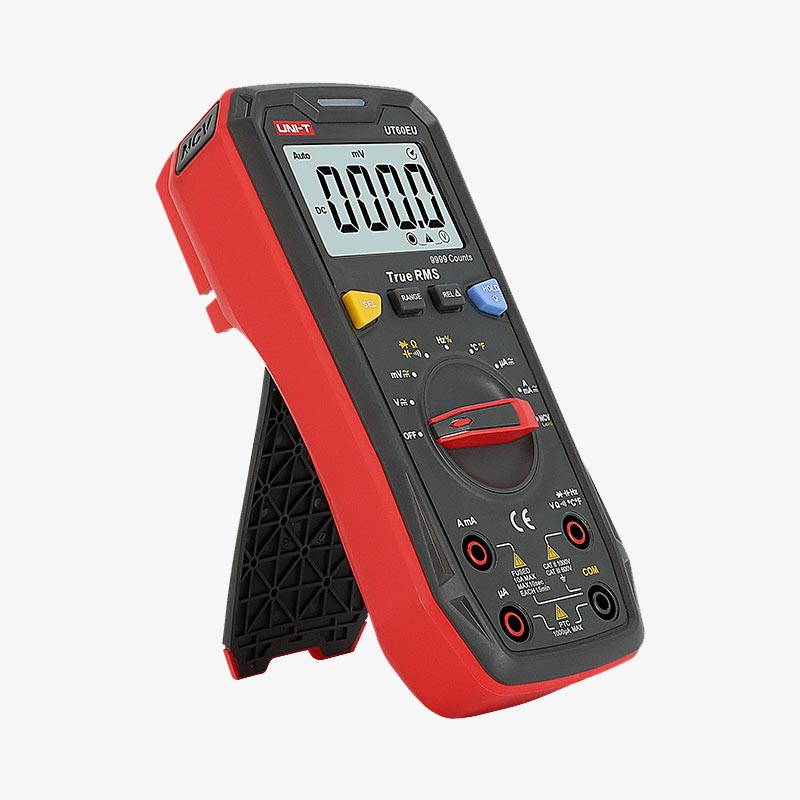

UT60 series digital multimeters provide True-RMS measurement, 9999-count resolution, non-contact voltage detection and many convenient features for users’ testing needs. These auto-ranged meters can measure up to 1000V AC/DC voltage, 10A AC/DC current and 100MΩ resistance. The easy-to-use interface with backlight enables you to detect equipment quickly even in dark places. This CE certified meter meets CAT II 1000V/CAT III 600V safety rating with rugged double-injection housing.
Features:
- True-RMS: Ensures accurate measurements even for non-sinusoidal waveforms.
- High Resolution: The 9999-count display provides precise and detailed results.
- Bluetooth Connectivity: Allows convenient wireless data transfer, enhancing efficiency.
- Duty Cycle Measurement: Measures duty cycles ranging from 0.1% to 99.9%.
- Diode/Continuity Test: Enables quick checks on diodes and verifies electrical continuity.
- Temperature Measurement: Measures temperatures between -40℃ to 1000℃ (-40°F to 1832°F).
- Non-contact Voltage Detection: Ensures user safety by detecting AC voltage without direct contact.
- Analog Bar and Data Hold: Visualizes measurements with an analog bar and supports data hold.
- Backlight with Relative Mode: Enhances visibility in low-light conditions, and relative mode aids in comparing measurements.
- Auto/Manual Range Selection: Automatically selects the appropriate measurement range or allows manual selection.
- Low Battery Indication: Alerts when the battery voltage drops below 3.6V.
- Three-Color LED Light Indicator: Provides quick visual cues for various functions.
- High Safety Standards: Complies with CAT II 1000V/CAT III 600V safety ratings.
Click Here for Data Sheet!
Specifications:
| Specifications | Range | UT60EU |
|---|---|---|
| DC Voltage | 9.999mV / 99.99mV / 999.9mV / 9.999V / 99.99V / 999.9V | ±(0.5%+3) |
| AC Voltage | 9.999mV / 99.99mV / 999.9mV / 9.999V / 99.99V / 999.9V | ±(0.8%+3) |
| DC Current | 999.9μA / 999.9mA / 9.999A / 10A | ±(0.8%+3) |
| AC Current | 999.9μA / 999.9mA / 9.999A / 10A | ±(1.0%+3) |
| Resistance | 999.9Ω / 9.999kΩ / 99.99kΩ / 999.9kΩ / 9.999MΩ / 99.99MΩ | ±(0.8%+2) |
| Capacitor | 9.999nF / 99.99nF / 999.9nF / 9.999μF / 99.99μF / 999.9μF / 9.999mF / 9.99mF (UT60EU/UT60BT) / 99.9mF (UT60S) | ±(4.0%+5) |
| Frequency | 99.99Hz - 9.999MHz | ±(0.1%+5) |
| Duty Cycle | 0.1 - 99.9% | ±(3%+5) |
| Temperature | -40℃ - 1000℃ / -40°F - 1832°F | ±4℃ / ±5℉ |
| Display Count | 9999 | 9999 |
| Auto Range | √ | |
| REL | √ | |
| NCV | √ | |
| Diode | √ | |
| Continuity Test | √ | |
| Acousto-optic Indication (NCV/continuity/battery power) | √ | |
| Low Battery Indication | ≤3.6V | √ |
| Data Hold | √ | |
| Auto Power Off | 15Min | √ |
| Operation Temperature | 0℃ - 40℃ | |
| Safety | CAT II 1000V / CAT III 600V |
Package Includes:
Test Leads, Digital Multimeter and User Manual.
