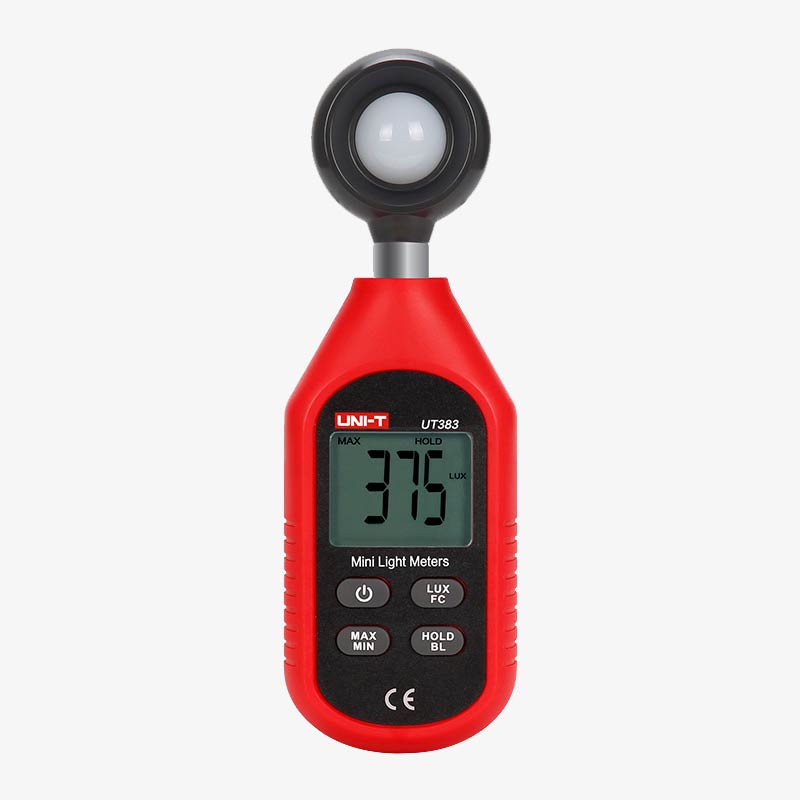

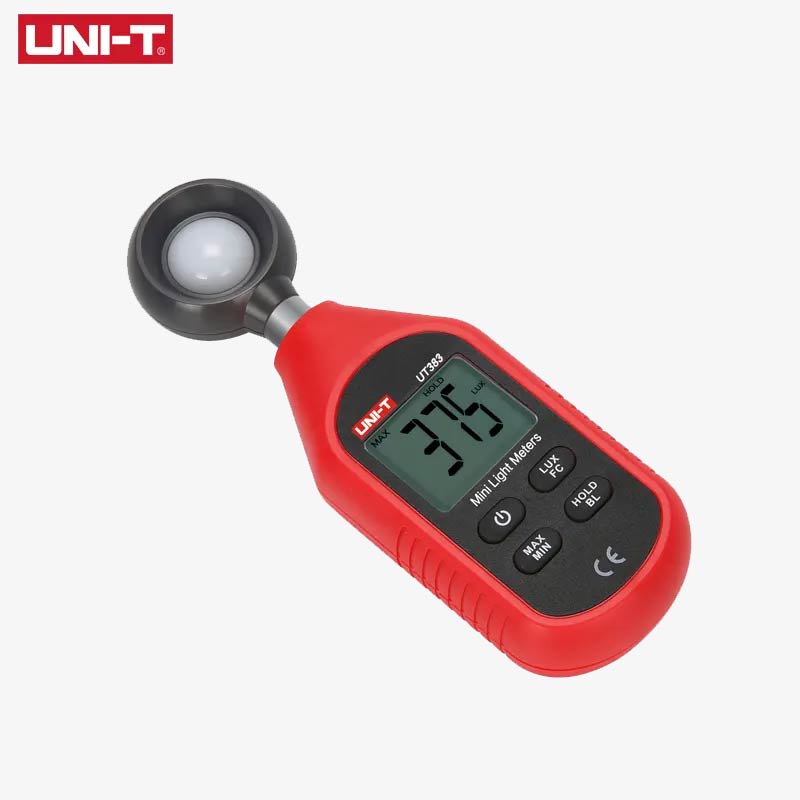

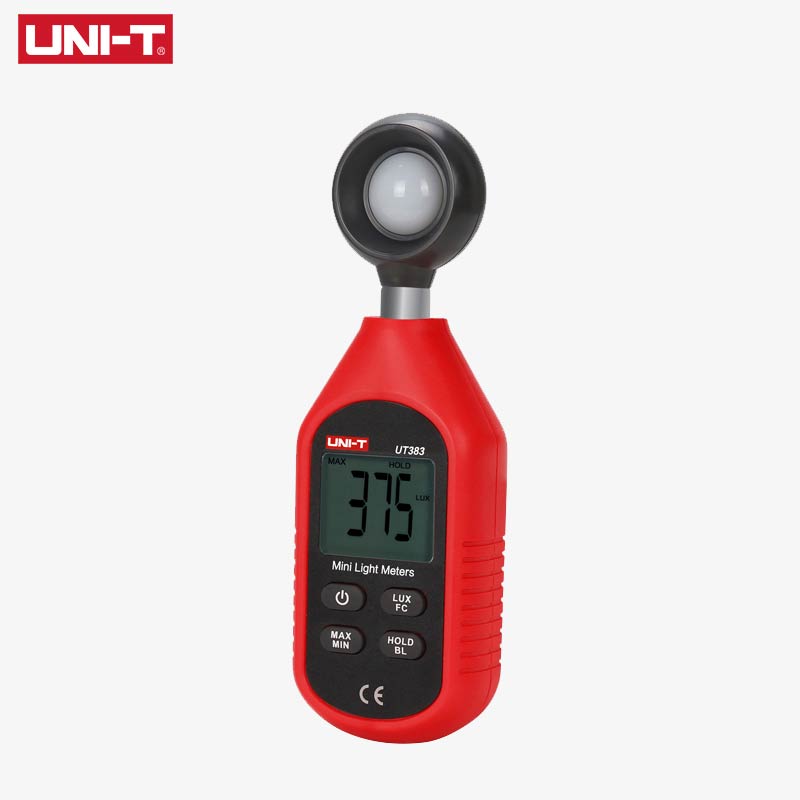

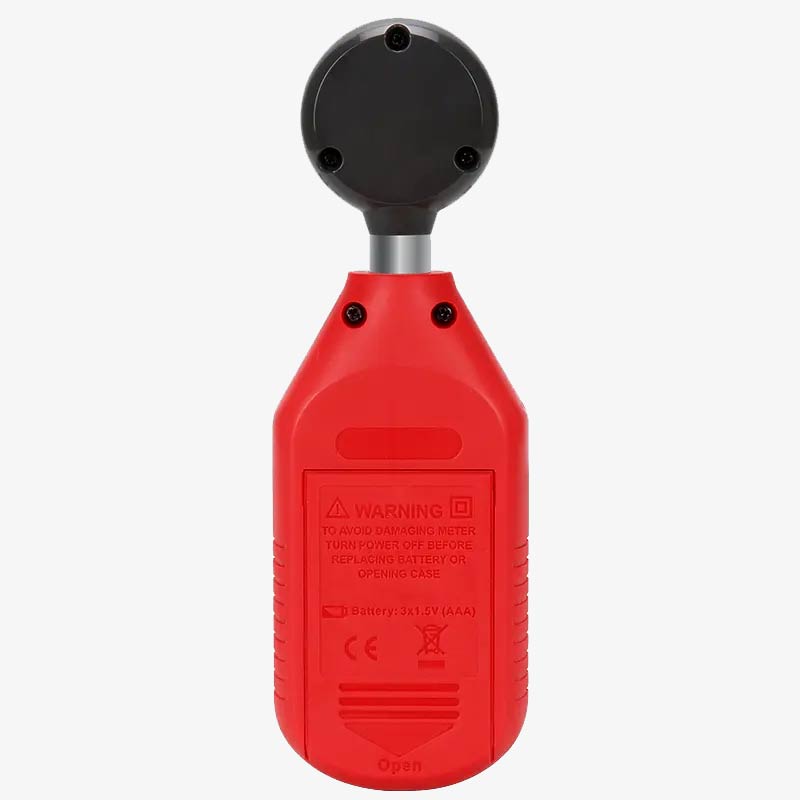

UNI-T UT383 Digital Mini Lux Light Meter

The UNI-T UT383 Mini Light Meter is a compact yet highly efficient instrument designed to measure light intensity with remarkable precision. Leveraging advanced photoelectric sensing technology and a dedicated operational amplifier chip, this device transforms ambient light into electrical signals. It then processes and displays the results on an LCD screen in either Lux or FC units. With its ability to provide real-time illumination readings, the UT383 is a valuable tool in various domains, including agriculture, meteorology, environmental protection, sports, scientific research, and public spaces. The UT383 effectively measures light intensity and presents the results in Lux or FC units on its screen.

Click Here for DataSheet

Specifications:

• Range:
  • Light Measurement: 0~9999 Lux (1 Lux resolution) / ≥10000 Lux (10 Lux resolution)
  • 0~9999 Fc (1 Fc resolution) / ≥10000 Fc (1 Fc resolution)
• Measuring Range: 0~200,000 Lux
• Sampling Time: 0.5 seconds
• Overload Indicator: OL
• Maximum/Minimum Readings: MAX/MIN
• Data Retention: HOLD
• Backlight: Yes
• Automatic Shutdown: After 5 minutes
• Low Power Alert: Indicates when the battery is at 3.0~3.5V
• Battery: Powered by a 4.5V battery
• Current Consumption:
  • Work: ≤30mA
  • Shutdown: ≤10uA
• Working Environment:
  • Temperature: 0~40°C
  • Humidity: ≤80% RH
• Storage Environment:
  • Temperature: -20~60°C
  • Humidity: ≤75% RH

Key Functions:

• ON/OFF BT Switch: Short press for power on or off, long press to enable Bluetooth (UT383BT only).
• MAX/MIN: Short press to cycle between MAX, MIN, or exit.
• LUX/FC: Short press to switch between Lux and Fc units.
• HOLD/BL (Data Hold/Backlight): Short press to hold or release data, long press to activate or deactivate the backlight.
