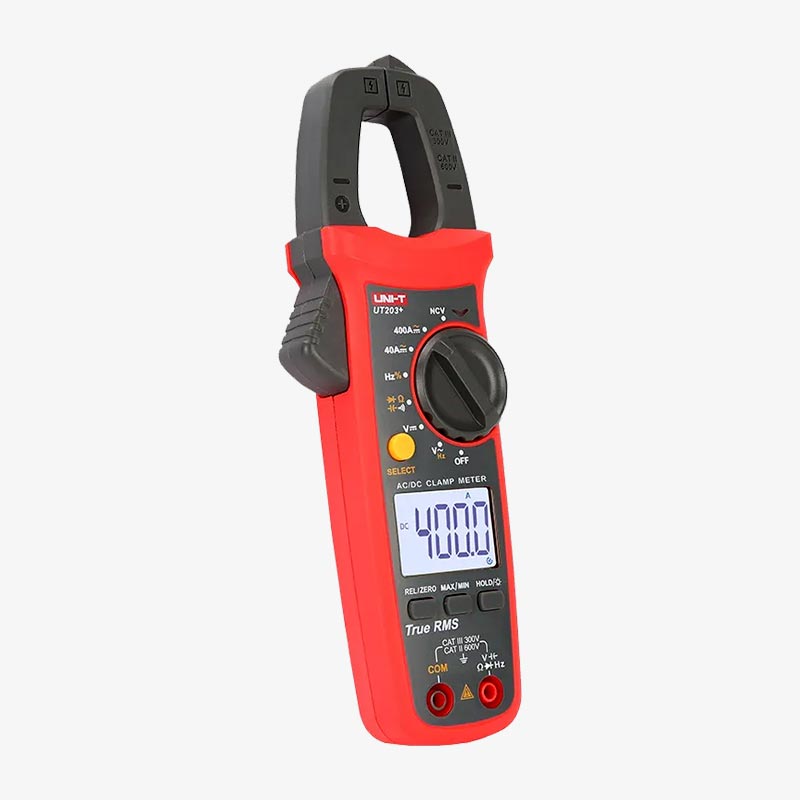

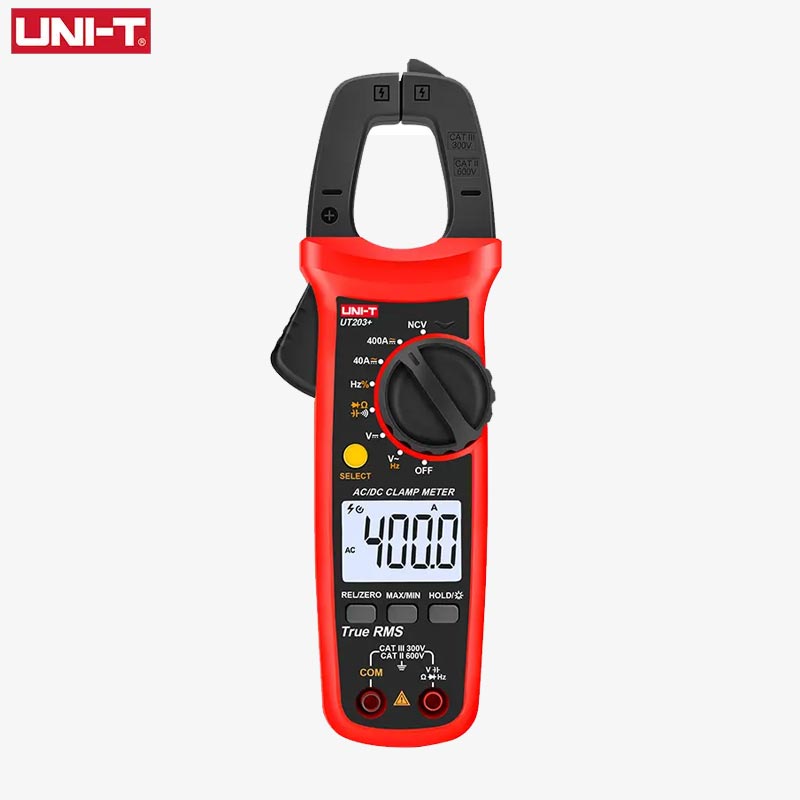

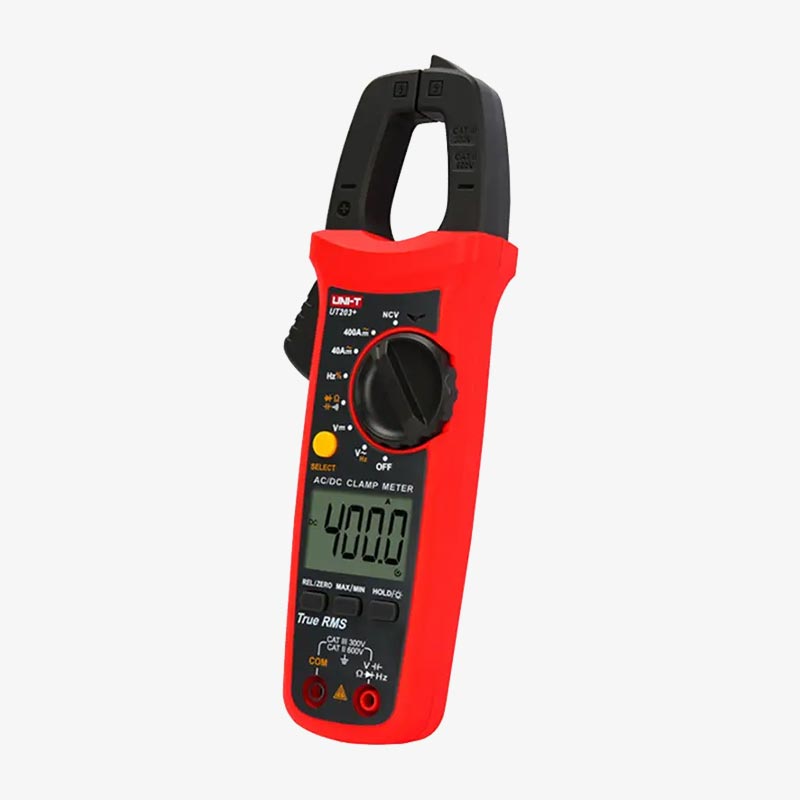

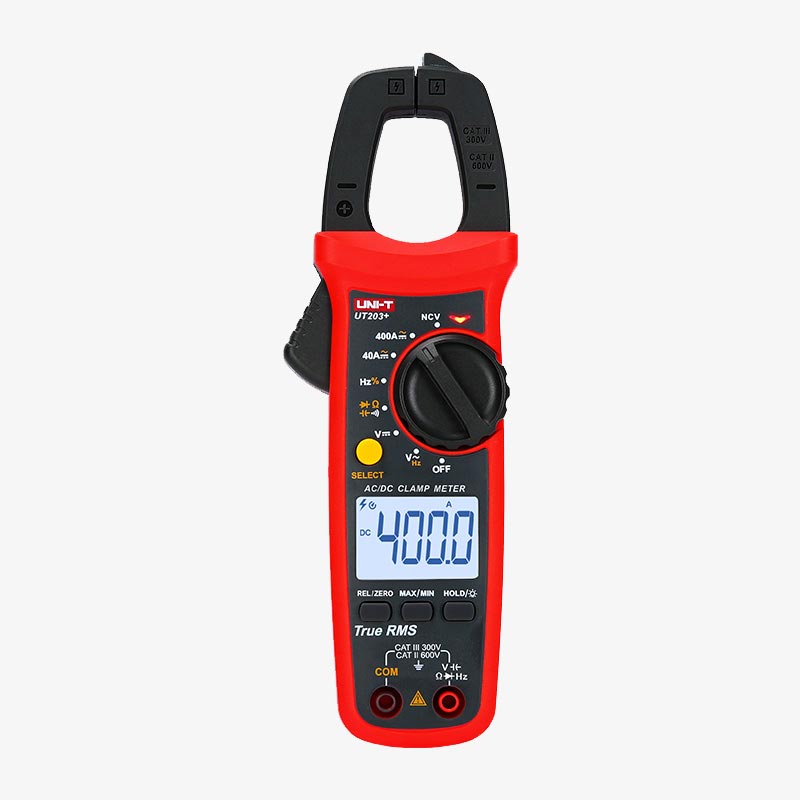

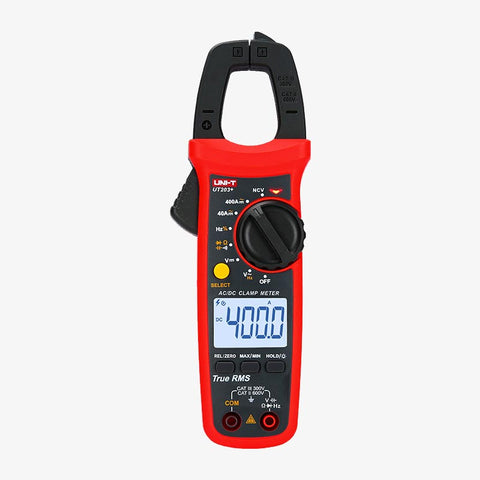

The UNI-T UT203+ is a highly portable and versatile clamp meter that delivers precise AC and DC current measurements with true RMS capabilities. Built to adhere to EN61010-1 safety standards (CAT II 600V/CAT III 300V), this digital clamp meter offers full-function protection to ensure a secure and reliable measurement experience. It not only handles basic measurements but also features high-precision current scales and high-voltage frequency measurement extensions.
Click Here for Data Sheet!
UT203+ Digital Clamp Meter Features:
- Large LCD Display: The spacious LCD screen provides clear and easy-to-read measurement readings.
- Antimagnetic and Anti-Jamming: Engineered with strong antimagnetic and anti-jamming performance for accurate measurements.
- Full-Function Protection: Ensures safety and reliability during measurements.
- Unit Symbol Display: Makes it straightforward to interpret measurement results.
- Additional Functions: Includes relative value measurements, frequency/duty cycle assessment, data hold feature, and true RMS measurement for enhanced accuracy.
- Audio-Visual NCV Electric Field Detection: Capable of detecting electric fields with both audio and visual indicators.
- High Voltage Frequency Range: Ranges from 10Hz to 60kHz for high voltage and 60Hz to 10MHz for low voltage.
- AC/DC Current Memory Function: Remembers current measurements in ACA/DCA mode.
- Power Efficiency: The UT203+ consumes minimal power without backlight, ensuring an extended battery life of up to 400 hours. In sleep mode, power consumption drops to <11uA.
Specifications:
- AC Current (A): 40A/400A ±(2.5%+5)
- AC Current Frequency (Hz): 50Hz~100Hz
- DC Current (A): 40A/400A ±(2.5%+5)
- AC Voltage (V): 600V ±(0.8%+5)
- AC Voltage Frequency (Hz): 10Hz~60kHz ±(0.5%+2)
- DC Voltage (A): 600V ±(0.5%+2)
- Resistance (Ω): 40MΩ ±(0.8%+2)
- Capacitance (F): 40mF ±(4%+5)
- Frequency (Hz): 10Hz~10MHz ±(0.1%+4)
- Display Count: 4000
- Auto Range: Supported
- Jaw Opening: 28mm
- True RMS: Included
- NCV: Supported
-
Continuity Test: Supported
Package Includes:
Test Leads, Digital Clamp Meter and User Manual.
