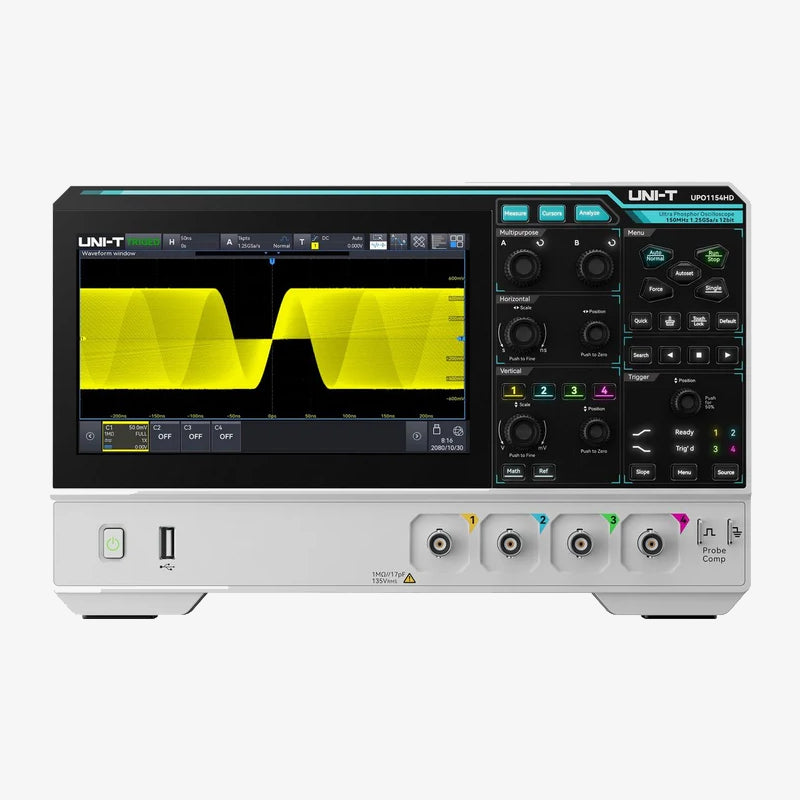

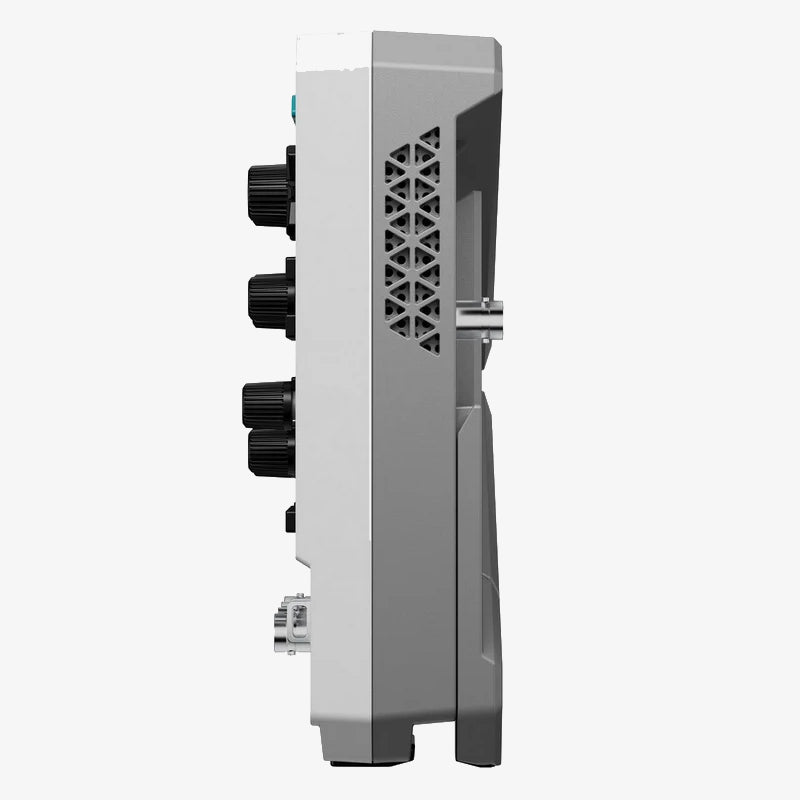

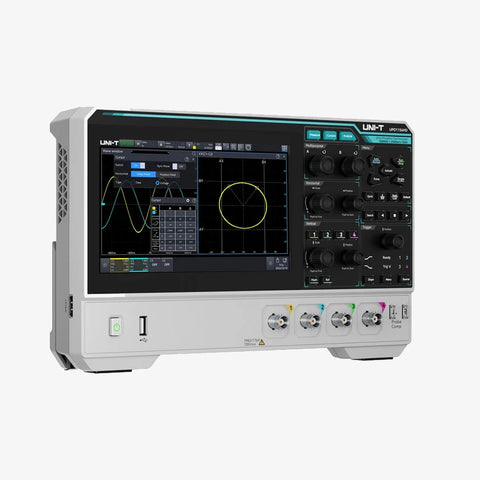

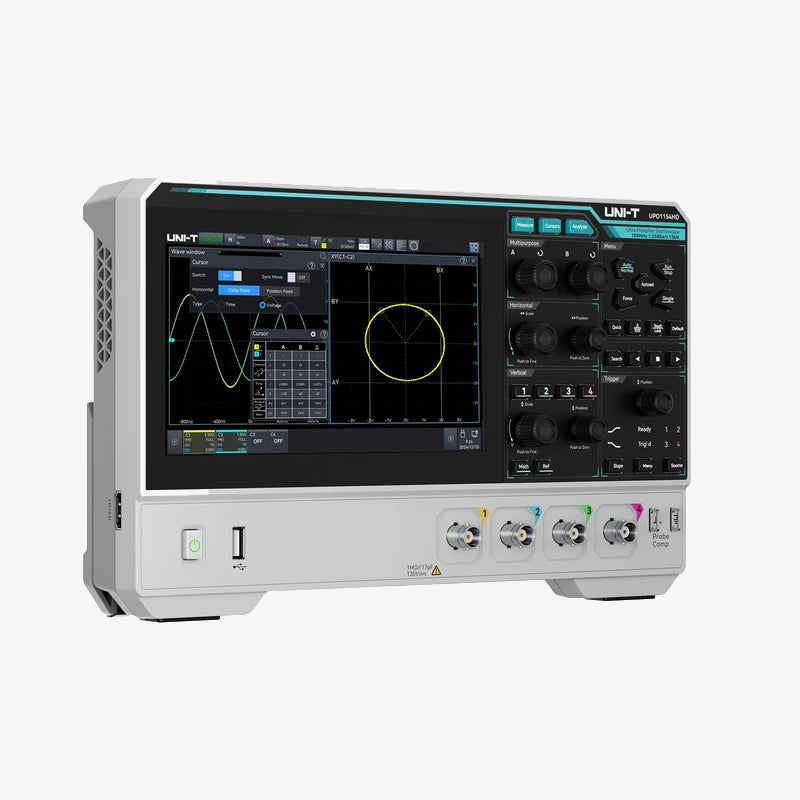

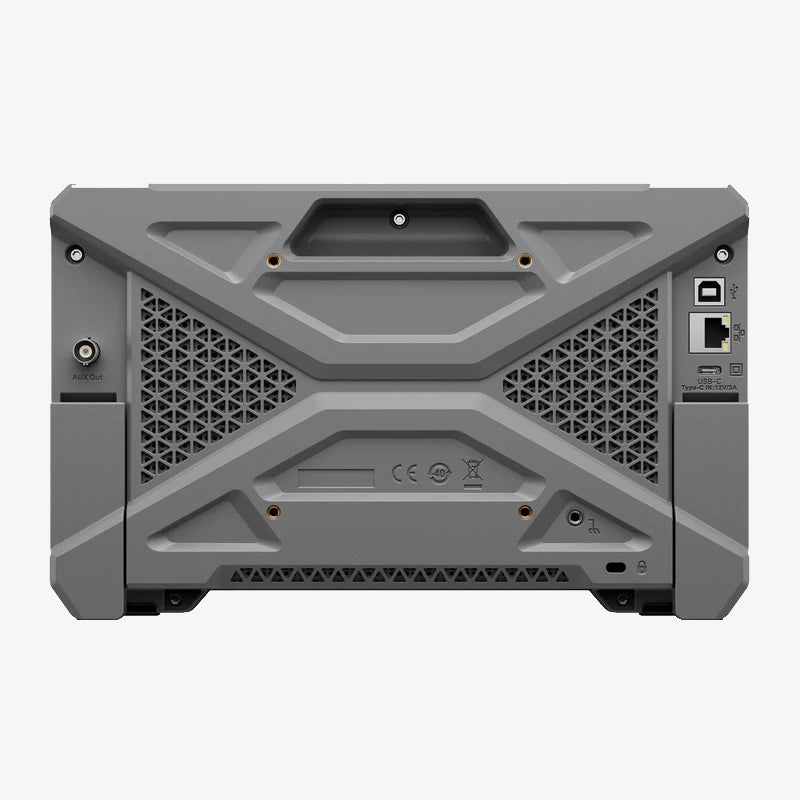

UNI-T UPO1154HD 4Ch 12-Bit Digital Storage Oscilloscope - 150 MHz
SKU:
TLS-QC5834
Availability:
5
In Stock
-
- Rs. 61,800.00
- Unit price
- per
Subtotal:
Rs. 61,800.00
Description
xUNI-T UPO1154HD 4Ch 12-Bit Digital Storage Oscilloscope - 150MHz is a professional high-resolution oscilloscope designed for advanced electronics development, power electronics analysis, embedded systems debugging, protocol decoding, and laboratory applications. Built on UNI-T's R12™ native 12-bit architecture, it delivers exceptional waveform detail with 4096 vertical levels, 1.25GSa/s sampling rate, 100Mpts memory depth, and comprehensive analysis tools for demanding measurement tasks.
UNI-T UPO1154HD 4Ch 12-Bit Digital Storage Oscilloscope - 150 MHz Datasheet
Features:
- Native 12-Bit R12™ ADC Architecture
- 150MHz Bandwidth with 4 Analog Channels
- 1.25GSa/s Real-Time Sampling Rate
- 100Mpts Deep Memory Acquisition
- Ultra Phosphor 3.0 Display Technology
- Up to 500,000 Waveforms per Second Capture Rate
- 7-Inch Capacitive Multi-Touch Display
- Built-In Power Analysis Functions
- 5 Standard Protocol Decoders Included
- Enhanced FFT Analysis up to 1Mpts
- 56 Automated Measurement Functions
- Zone Trigger and Advanced Trigger Modes
- Hardware DVM and Frequency Counter
- USB-C Power Bank Operation Support
- SCPI Remote Control and WebServer Access
- VESA Mount Compatible Design
Specifications:
| Parameter | Value |
|---|---|
| Brand | UNI-T |
| Model | UPO1154HD |
| Product Type | Digital Storage Oscilloscope |
| Channels | 4 Analog Channels |
| Bandwidth | 150 MHz |
| Vertical Resolution | Native 12-bit (R12™ Architecture) |
| Sample Rate (1 Channel) | 1.25 GSa/s |
| Sample Rate (2 Channels) | 625 MSa/s |
| Sample Rate (4 Channels) | 312.5 MSa/s |
| Memory Depth | 100 Mpts |
| Capture Rate | Up to 500,000 wfms/s |
| Rise Time | ≤ 2.2 ns |
| Background Noise | 60 µVrms (Typical) |
| Vertical Scale | 500 µV/div to 10 V/div |
| Time Base Range | 5 ns/div to 1 ks/div |
| Display Size | 7 Inch |
| Display Resolution | 1024 × 600 |
| Display Type | Capacitive Multi-Touch Screen |
| ADC Resolution | 12 Bit |
| Power Consumption | 65 W Max |
| Operating Temperature | 0°C to +40°C |
| Mounting Standard | VESA 100 × 100 mm |
| Dimensions | 282 × 175 × 49 mm |
| Weight | 1.56 kg |
| Certifications | CE, cETLus |
Trigger Specifications:
| Parameter | Value |
|---|---|
| Trigger Modes | Edge, Pulse Width, Video, Runt, Slope, Delay, Timeout, Duration, Setup & Hold, Nth Edge, Code Pattern, Zone |
| Zone Trigger | Supported |
| Sequence Mode | Up to 500,000 Frames |
| Hardware Recording | Up to 100,000 Frames |
Protocol Decoding:
| Parameter | Value |
|---|---|
| UART / RS-232 | Supported |
| I²C | Supported |
| SPI | Supported |
| CAN | Supported |
| LIN | Supported |
| Simultaneous Decoding | Up to 4 Decode Windows |
Analysis & Measurement Functions:
| Parameter | Value |
|---|---|
| Automated Measurements | 56 Types |
| Simultaneous Measurements | Up to 21 |
| FFT Analysis | Enhanced FFT up to 1 Mpts |
| FFT Features | Waterfall, Marker List, 4 Traces |
| Power Analysis Functions | 12 Types |
| DVM | 4-Digit (DC, AC RMS, AC+DC RMS) |
| Frequency Counter | 6-Digit Hardware Counter |
| Statistics | Mean, Max, Min, Standard Deviation |
| Histograms | Supported |
| Trend Charts | Supported |
Interface & Connectivity:
| Parameter | Value |
|---|---|
| USB Host | Yes |
| USB Device | Yes |
| LAN | VXI-11 Supported |
| HDMI Output | Yes |
| AUX Output | Trigger Out / Pass-Fail / DVM |
| Remote Control | SCPI |
| WebServer | Built-In |
| USB-C PD Power Input | ≥12V / 3A Supported |
If you are looking for more UNI-T products like Oscilloscope Multimeters visit the collection of products for your electronic projects.
Also Check These Out:-
FNIRSI DMT-99 Intelligent Color Screen Digital MultiMeter
FNIRSI 2C53T 50MHz Handheld 3-in-1 Oscilloscope Multimeter Signal Generator
FNIRSI DSO-TC3 3-in-1 Handheld 500KHz 10MS/s Digital Oscilloscopes
Package Includes:
1 x UNI-T UPO1154HD 4Ch 12-Bit Digital Storage Oscilloscope - 150MHz
1 x Power Adapter
1 x USB Cable
1 x User Manual
