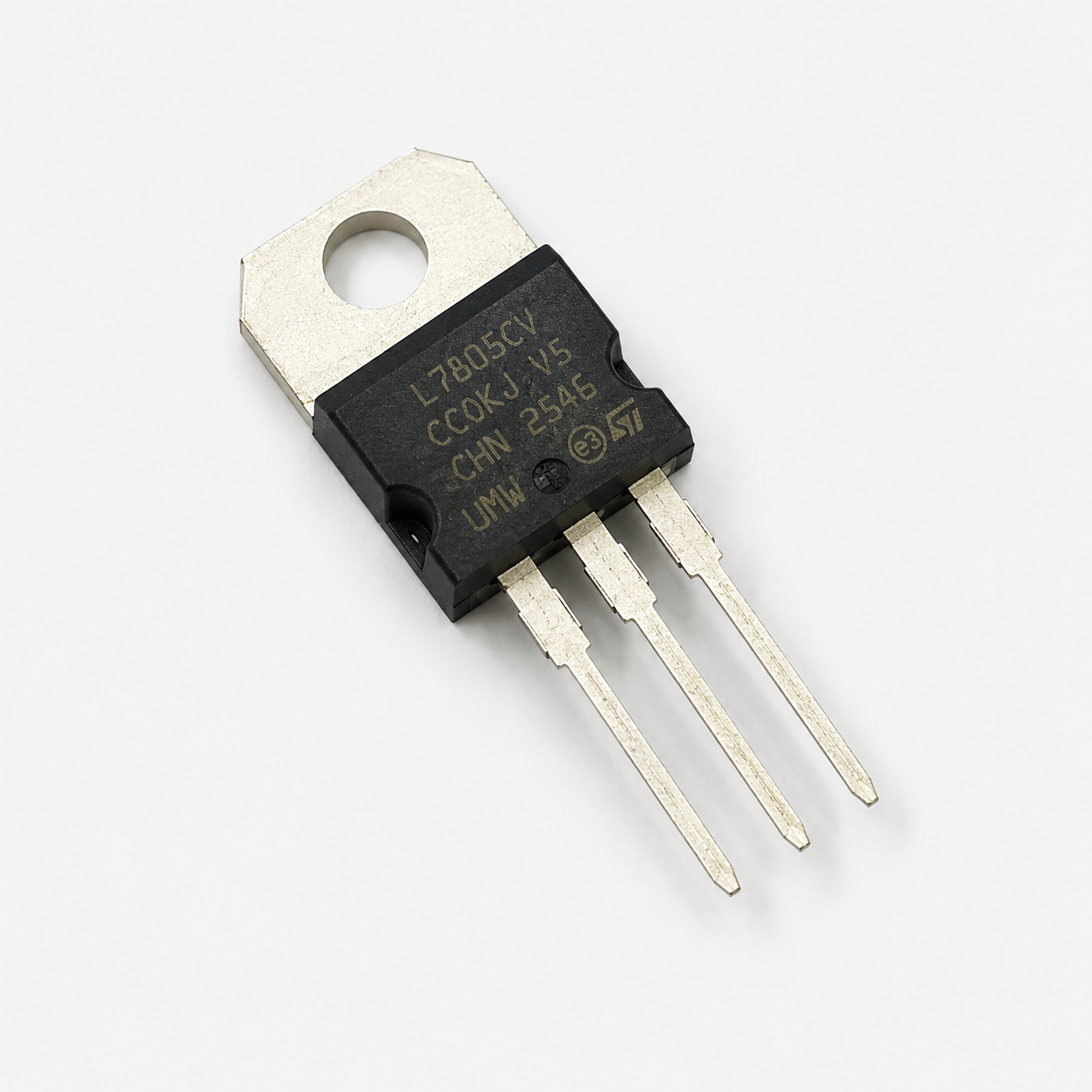

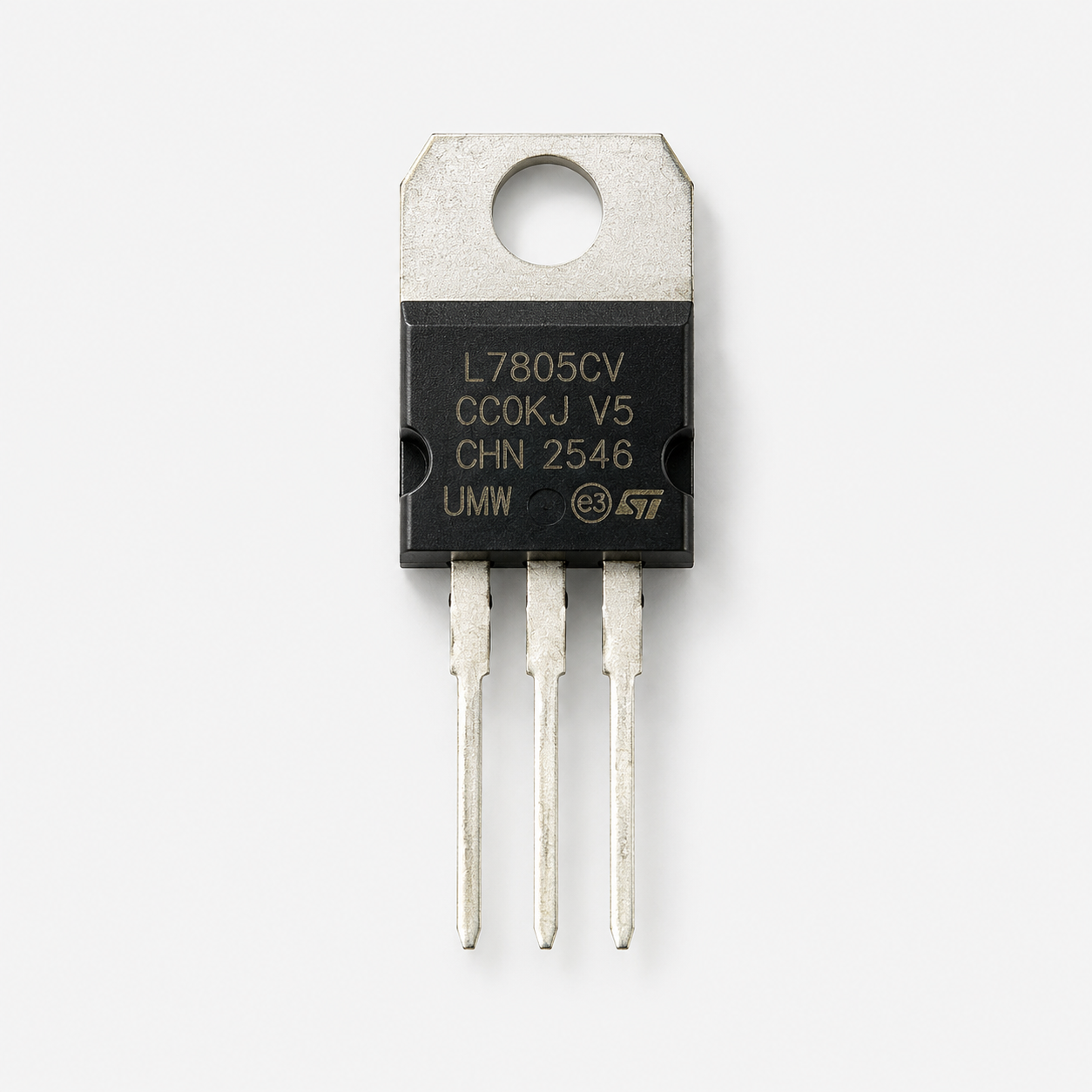

UMW L7805CV Linear Voltage Regulator IC - TO-220-3 Package
SKU:
CMP-QC6013
Availability:
15
In Stock
-
- Rs. 24.00
- Unit price
- per
Subtotal:
Rs. 24.00
Description
xUMW L7805CV Linear Voltage Regulator IC - TO-220-3 Package is a fixed 5V positive linear voltage regulator designed to provide a stable and reliable output voltage for a wide range of electronic circuits. It features built-in current limiting, thermal overload protection, and safe operating area protection, making it ideal for power supplies, embedded systems, Arduino projects, industrial electronics, and general-purpose voltage regulation applications.
UMW L7805CV Linear Voltage Regulator IC - TO-220-3 Package Datasheet
Features:
- Fixed 5V Output Voltage
- Output Current up to 1.5A
- Wide Input Voltage Range
- Built-in Thermal Overload Protection
- Short-Circuit Current Limiting
- Safe Operating Area Protection
- High Ripple Rejection
- Low Output Noise
- Excellent Line and Load Regulation
- TO-220-3 Through-Hole Package
- RoHS Compliant
- Suitable for Power Supplies, Microcontroller Circuits, and Embedded Applications
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Positive Linear Voltage Regulator |
| Model | L7805CV |
| Output Voltage | 5V Fixed |
| Output Current | Up to 1.5A |
| Input Voltage Range | 7V to 35V (Recommended) |
| Maximum Input Voltage | 35V |
| Dropout Voltage | Approx. 2V |
| Line Regulation | 50mV Max |
| Load Regulation | 100mV Max |
| Quiescent Current | 5mA Typ |
| Ripple Rejection | 62dB Typ |
| Operating Junction Temperature | 0°C to +125°C |
| Storage Temperature | -65°C to +150°C |
| Package Type | TO-220-3 |
| Mounting Type | Through Hole (THT) |
| Polarity | Positive Regulator |
| Protection Features | Thermal Shutdown, Current Limiting, Safe Operating Area Protection |
| Compliance | RoHS |
Also Check These Out:
AN7112 Audio Power Amplifier IC
Package Includes:
1 x L7805CV Linear Voltage Regulator IC - TO-220-3 Package
