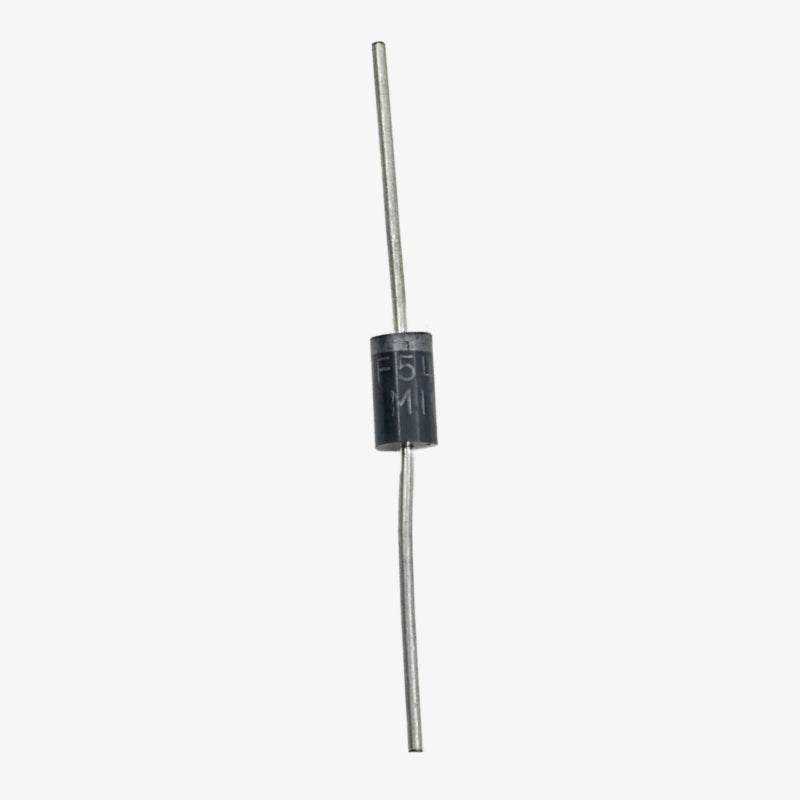

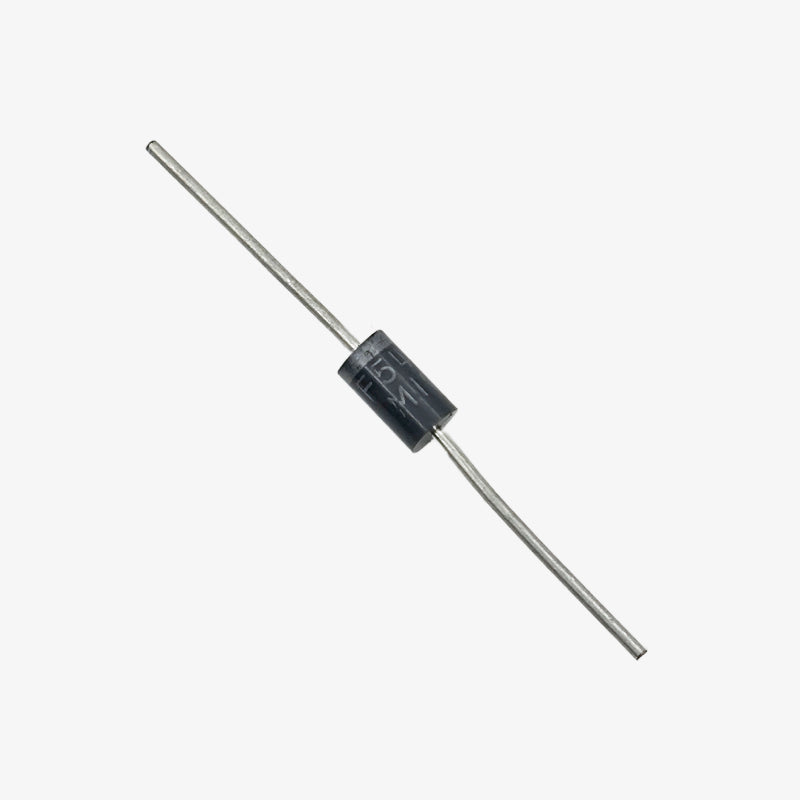

UF5408 Ultra Fast Rectifier Diode 3A
SKU:
CMP-QC3725
Availability:
1220
In Stock
- Rs. 10.00
- Rs. 10.00
- Unit price
- per
Subtotal:
Rs. 10.00
Description
xThe UF5408 Ultra Fast Rectifier Diode 3A is designed for rapid AC to DC rectification with high surge tolerance and reliability. Its diffused junction and low forward voltage drop make it ideal for high-efficiency power supplies, inverters, and industrial applications..
Features:
- Diffused junction for fast and reliable rectification
- Low forward voltage drop for efficient operation
- High current and surge capability for demanding loads
- Cathode band marking for polarity identification
Specifications:
- Maximum Repetitive Peak Reverse Voltage (VRRM): 1000 V
- Maximum RMS Voltage (VRMS): 700 V
- Maximum DC Blocking Voltage (VDC): 1000 V
- Average Rectified Output Current (IO): 3.0 A
- Peak Forward Surge Current (IFSM): 150 A
- Forward Voltage (VF) at 3 A: 1.7 V
- Peak Reverse Current (IR) at 25°C: 10 µA
- Peak Reverse Current (IR) at 100°C: 100 µA
- Reverse Recovery Time (trr): 75 ns
- Typical Junction Capacitance (CJ): 50 pF
- Operating Temperature Range (TJ): -65°C to +125°C
- Storage Temperature Range (TSTG): -65°C to +150°C
Package Includes:
1 × UF5408 Ultra Fast Rectifier Diode 3A
