Type-C 2S 8.4V Multi-Cell Step-Up Boost Lithium Battery Charger Module
SKU:
MOD-QC3834
Availability:
Out Of Stock
- Rs. 50.00
- Rs. 50.00
- Unit price
- per
Subtotal:
Rs. 50.00
Description

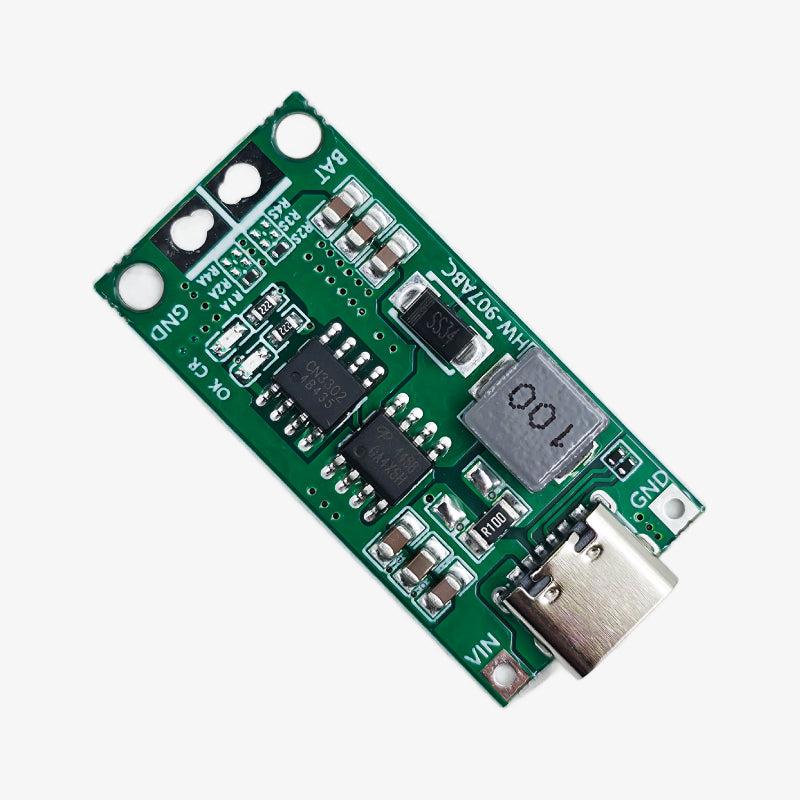

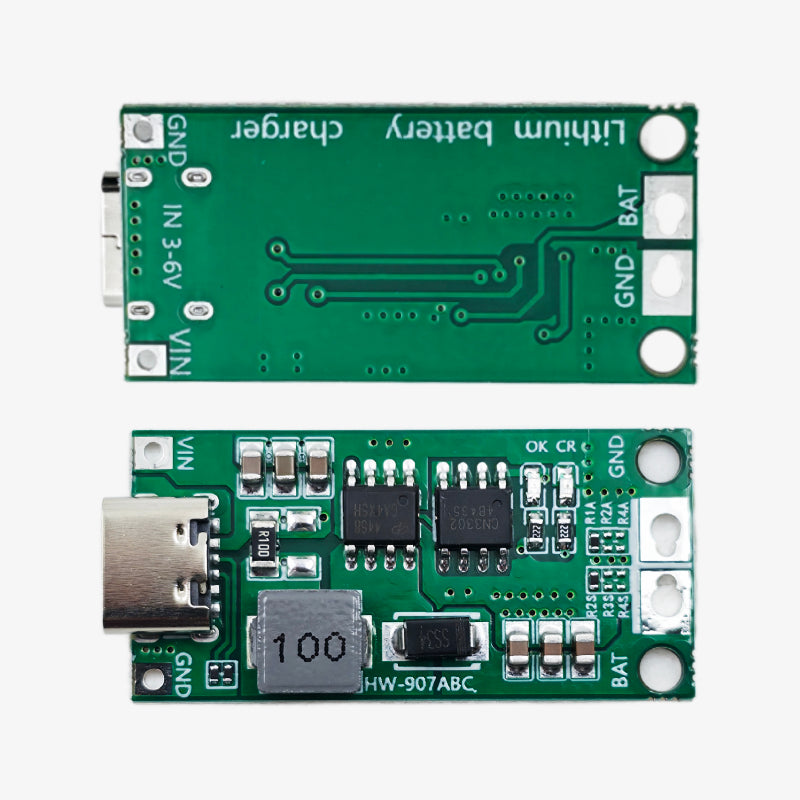

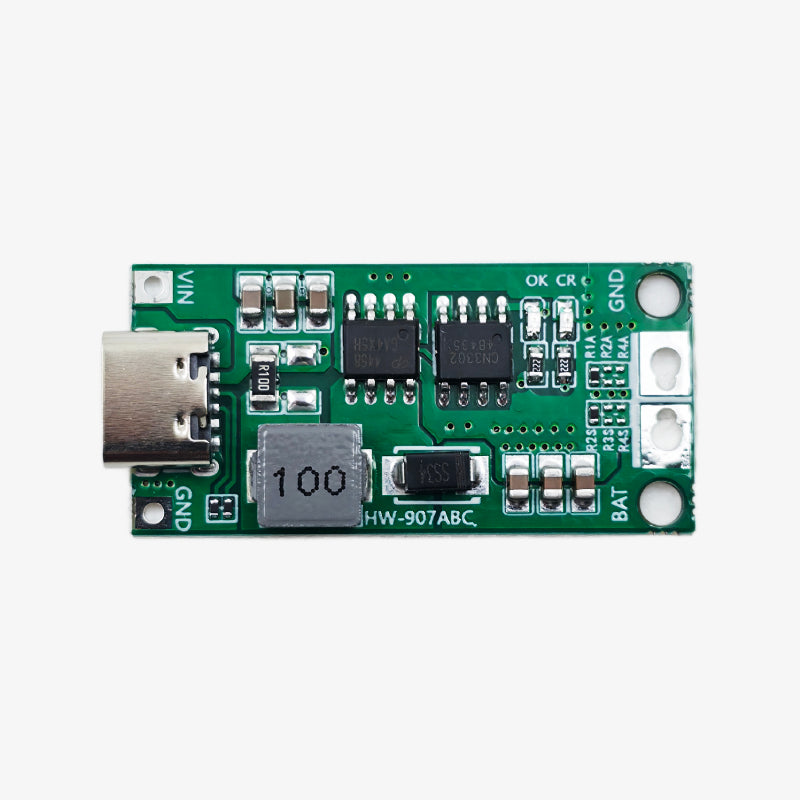

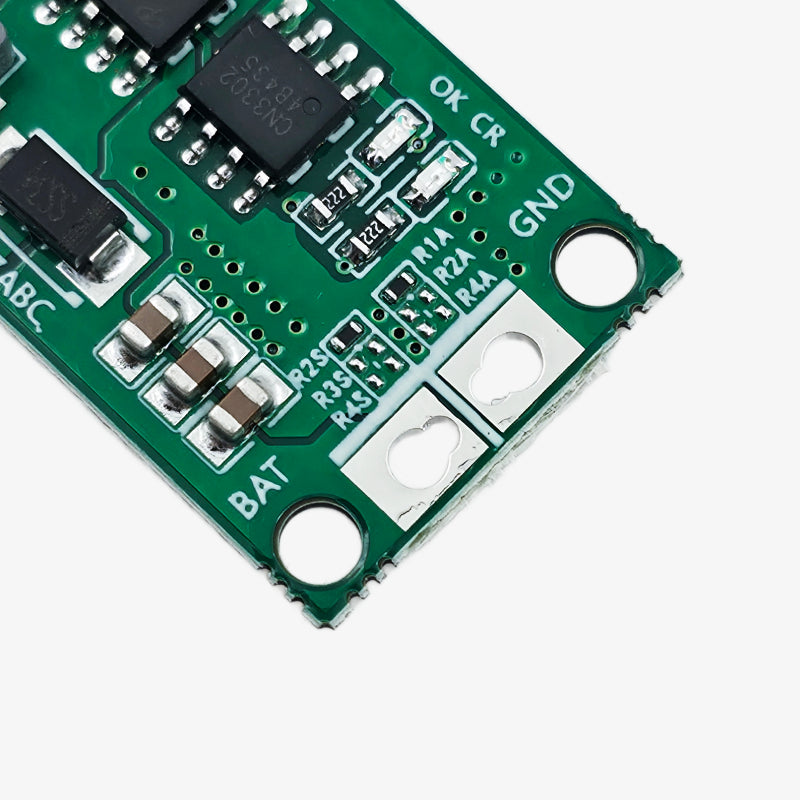

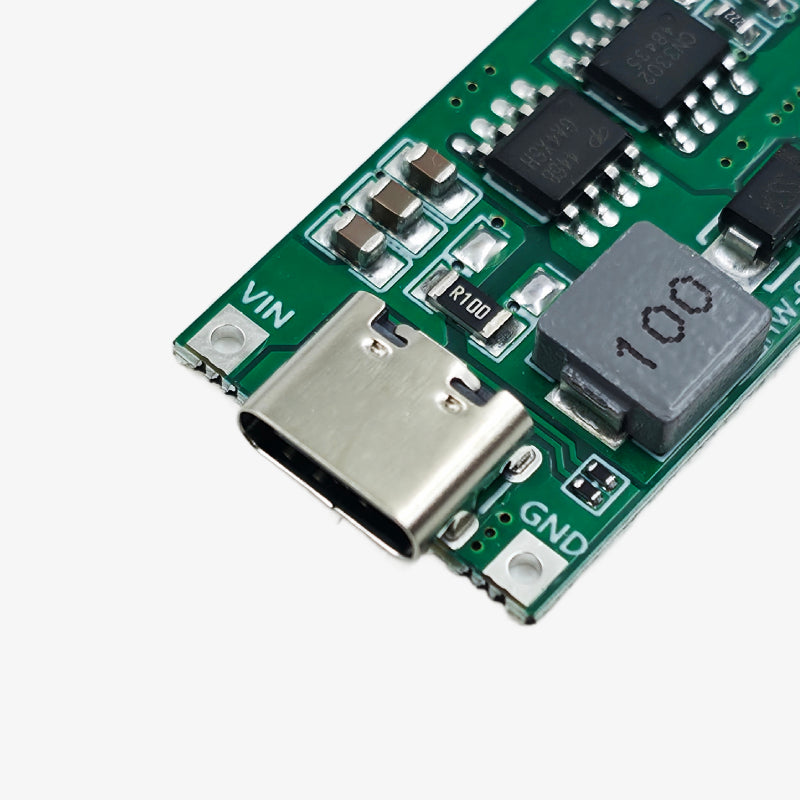

xThe Type-C Multi-Cell Step-Up Boost Charger Module is designed for charging 2-cell (2S) lithium-ion or lithium-polymer battery packs by boosting standard 5V USB Type-C input to a stable 8.4V charging voltage. Featuring built-in protection and efficient DC-DC conversion, this module is ideal for DIY battery packs, portable equipment, robotics, and energy storage projects. Its USB Type-C input makes it compatible with modern chargers and power banks.
Features:
- Boost converter designed for charging 2S (7.4V) lithium battery packs
- USB Type-C input for universal compatibility
- Provides stable 8.4V charging output
- High-efficiency DC-DC step-up design
- Built-in protection features (varies by batch)
- Suitable for portable devices, DIY electronics, and battery charging setups
- Compact PCB for easy integration into multi-cell battery projects
Specifications:
- Module Type: Step-Up (Boost) Lithium Battery Charger
- Input Voltage: 5V (USB Type-C)
- Output Voltage: 8.4V (for 2S Lithium-ion/LiPo batteries)
- Battery Compatibility: 2S (7.4V nominal) lithium battery packs
- Charging Current: 1A
- Conversion Type: DC-DC boost
- Efficiency: High (typically 85%–92%)
- Charging Method: Constant Voltage (CV)
- Input Connector: USB Type-C
- Indicators: Charging/Full LEDs
- Operating Temperature: –10°C to +60°C
- Applications: DIY battery packs, portable systems, robotics, RC electronics, energy storage
Package Includes:
1 × Type-C 2S 8.4V Multi-Cell Step-Up Boost Lithium Battery Charger Module
