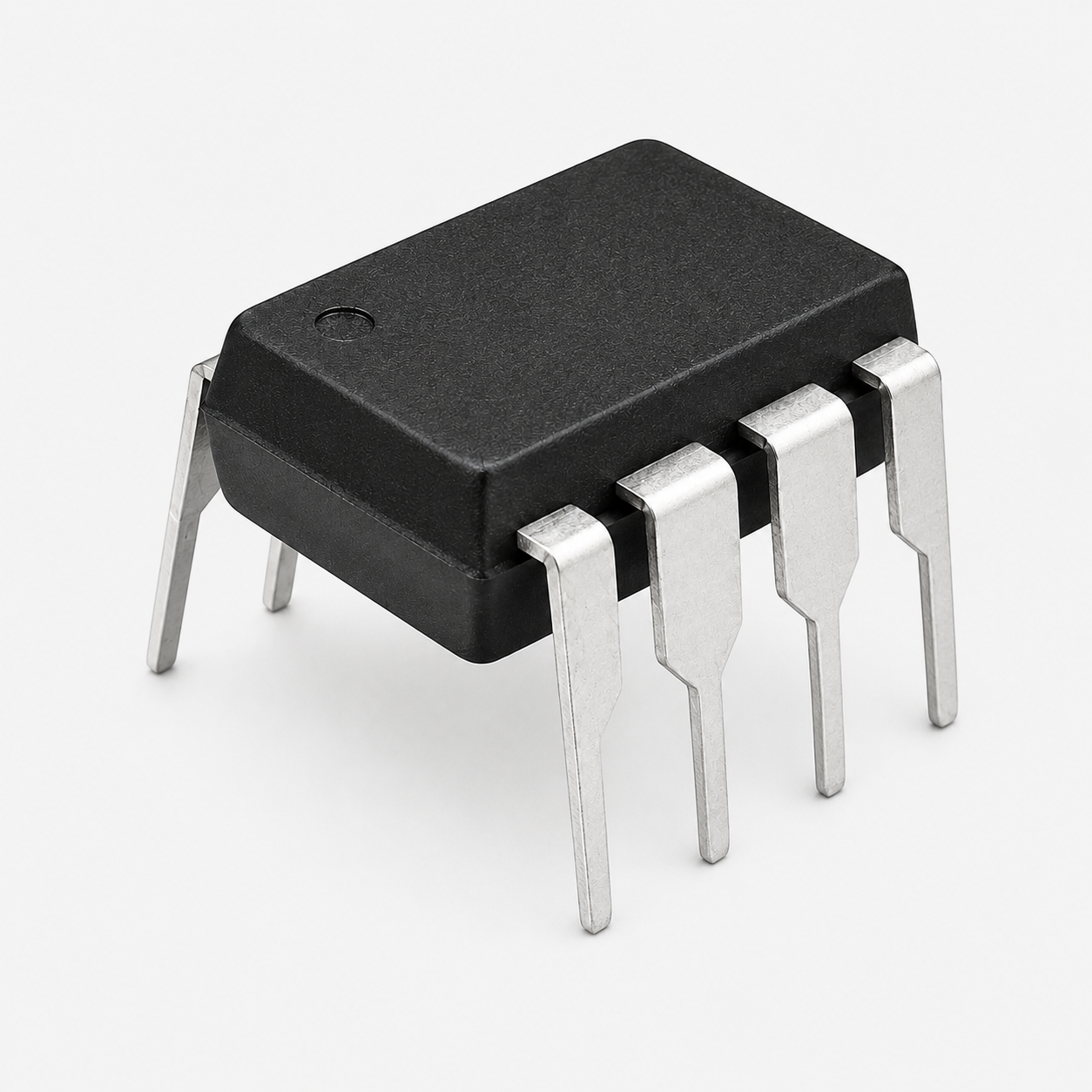

TNY280PN Power Integrations AC/DC Converter IC - DIP-8 Package

Brand: Power Integrations
SKU: CMP-QC5965
Availability: 100 In Stock
Rs. 44.00
Subtotal: Rs. 44.00
Description
Description
x

TNY280PN Power Integrations AC/DC Converter IC - DIP-8 Package is a high-efficiency off-line AC/DC converter IC from the TinySwitch-III family by Power Integrations. It integrates a 700V power MOSFET, PWM controller, startup circuitry, current limiting, and multiple protection features into a compact DIP-8 package, significantly reducing external component count. The TNY280PN is ideal for high-power compact SMPS designs, battery chargers, industrial power supplies, adapters, and standby power applications.

Features:

  1. Integrated 700V Power MOSFET
  2. TinySwitch-III Family
  3. Universal AC Input Operation
  4. Integrated PWM Controller
  5. Low Standby Power Consumption
  6. Auto-Restart Protection
  7. Cycle-by-Cycle Current Limiting
  8. Thermal Shutdown Protection
  9. Undervoltage Protection
  10. High Conversion Efficiency
  11. Minimal External Components Required
  12. DIP-8 Through-Hole Package
  13. Suitable for Isolated and Non-Isolated Power Supplies
  14. RoHS Compliant

Specifications:

Parameter Value
Product Type AC/DC Converter IC
Model TNY280PN
Series TinySwitch-III
Package DIP-8
Input Voltage 85VAC to 265VAC
Integrated MOSFET 700V Power MOSFET
Maximum Output Power (Open Frame) Up to 49W
Maximum Output Power (Enclosed Adapter) Up to 30W
Switching Frequency 132kHz (Typical)
Control Method PWM
Protections Auto-Restart, Thermal Shutdown, Current Limiting, Short-Circuit Protection
Operating Temperature -40°C to +150°C (Junction)
Mounting Type Through Hole
Applications AC-DC Adapters, SMPS, Battery Chargers, Industrial Power Supplies, Standby Power Supplies
RoHS Compliance Yes



Pin Configuration:

Pin Function
1 EN/UV (Enable / Undervoltage)
2 BP/M (Bypass / Multi-Function)
3 SOURCE
4 SOURCE
5 SOURCE
6 DRAIN
7 DRAIN
8 DRAIN
