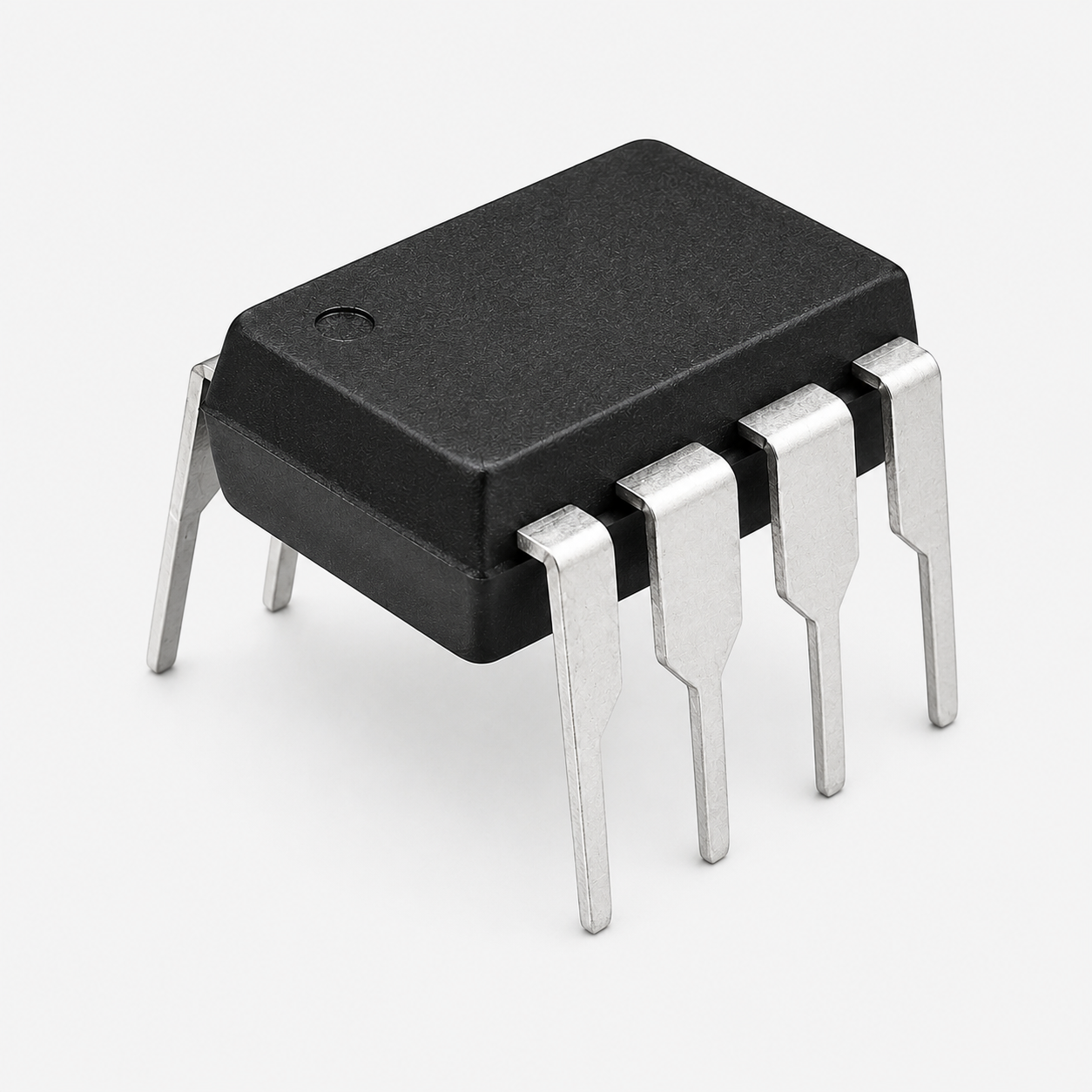

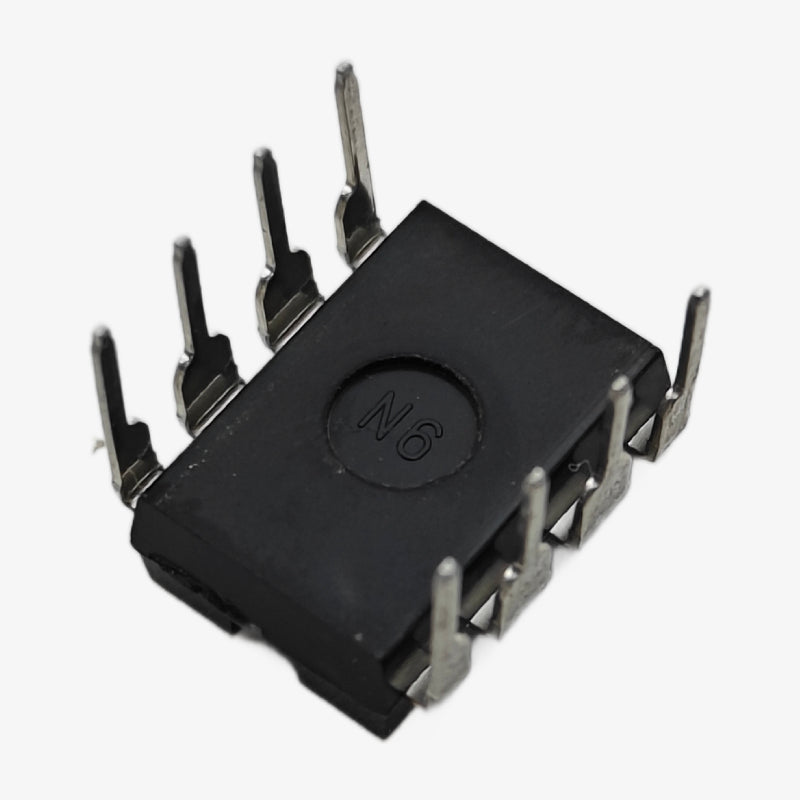

TNY274PN Power Integrations Off Line Switcher IC - DIP-8 Package

Brand: Power Integrations
SKU: CMP-QC5964
Availability: 100 In Stock
Rs. 48.00
Subtotal: Rs. 48.00
Description
Description
x

TNY274PN Power Integrations Off-Line Switcher IC - DIP-8 Package is a high-efficiency off-line switcher IC from the TinySwitch-III family by Power Integrations. It integrates a 700V power MOSFET, PWM controller, startup circuitry, current limiting, and thermal protection into a single device, simplifying the design of compact AC-DC power supplies. The TNY274PN is ideal for chargers, standby power supplies, adapters, SMPS, and industrial power applications requiring high efficiency and low standby power consumption.

Features:

  1. Integrated 700V Power MOSFET
  2. TinySwitch-III Family
  3. Universal AC Input Operation
  4. Low Standby Power Consumption
  5. Integrated PWM Controller
  6. Auto-Restart Protection
  7. Cycle-by-Cycle Current Limiting
  8. Thermal Shutdown Protection
  9. Undervoltage Protection
  10. High Efficiency Operation
  11. Minimal External Components Required
  12. DIP-8 Through-Hole Package
  13. Suitable for Isolated and Non-Isolated Power Supplies
  14. RoHS Compliant

Specifications:

Parameter Value
Product Type Off-Line Switcher IC
Model TNY274PN
Series TinySwitch-III
Package DIP-8
Input Voltage 85VAC to 265VAC
Integrated MOSFET 700V Power MOSFET
Maximum Output Power (Open Frame) Up to 36W
Maximum Output Power (Enclosed Adapter) Up to 23W
Switching Frequency 132kHz (Typical)
Control Method PWM
Protections Auto-Restart, Thermal Shutdown, Current Limiting, Short-Circuit Protection
Operating Temperature -40°C to +150°C (Junction)
Mounting Type Through Hole
Applications SMPS, AC-DC Adapters, Battery Chargers, Standby Power Supplies, Industrial Power Supplies
RoHS Compliance Yes



Pin Configuration:

Pin Function
1 EN/UV (Enable / Undervoltage)
2 BP/M (Bypass / Multi-Function)
3 SOURCE
4 SOURCE
5 SOURCE
6 DRAIN
7 DRAIN
8 DRAIN



Also Check These Out:

AN7112 Audio Power Amplifier IC

TDA2822M Amplifier IC

HT12D (RF Decoder) IC

Package Includes:

1 x TNY274PN Power Integrations Off-Line Switcher IC - DIP-8 Package
