TNY266PN Power Integrations Off Line Switcher IC - DIP-8 Package

Brand: Power Integrations
SKU: CMP-QC5954
Availability: 100 In Stock
Rs. 36.00
Subtotal: Rs. 36.00
Description
Description
x

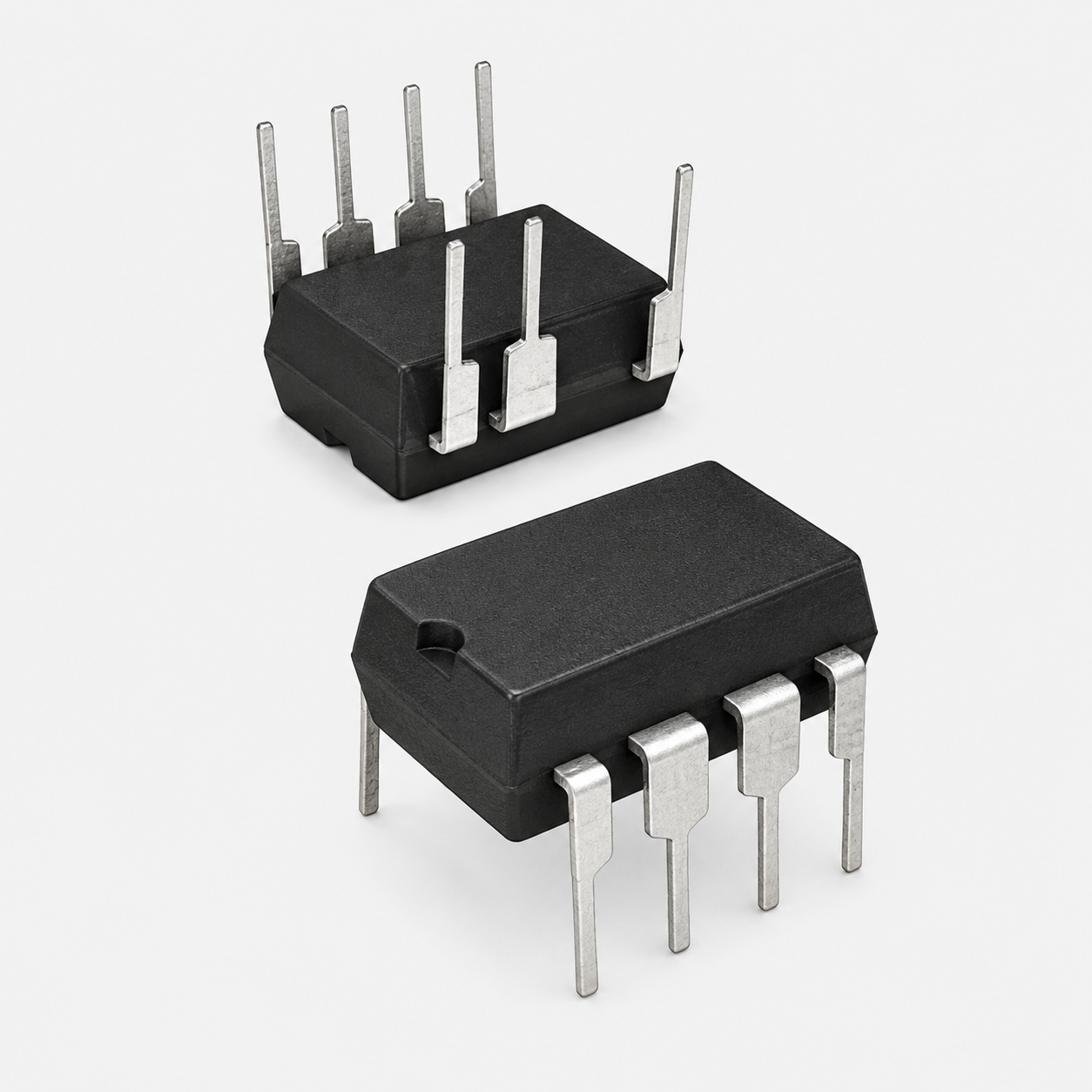

TNY266PN Power Integrations Off-Line Switcher IC - DIP-8 Package is a highly integrated off-line switcher IC from the TinySwitch-II family by Power Integrations. It combines a high-voltage power MOSFET, PWM controller, startup circuitry, current limiting, and thermal protection into a single compact device, significantly reducing component count in AC-DC power supplies. The TNY266PN is ideal for chargers, standby power supplies, LED drivers, household appliances, industrial controls, and other low-power SMPS applications.

Features:

  1. Integrated Off-Line Switcher IC
  2. Built-in High Voltage Power MOSFET
  3. TinySwitch-II Architecture
  4. Universal AC Input Operation
  5. Low Standby Power Consumption
  6. Auto-Restart Protection
  7. Cycle-by-Cycle Current Limiting
  8. Thermal Shutdown Protection
  9. Built-in Soft Start
  10. High Efficiency Operation
  11. Minimal External Components Required
  12. Excellent EMI Performance
  13. DIP-8 Through-Hole Package
  14. Suitable for AC-DC Power Supplies
  15. Ideal for Chargers, Adapters & SMPS Designs
  16. RoHS Compliant

Specifications:

Parameter Value
Product Type Off-Line Switcher IC
Model TNY266PN
Series TinySwitch-II
Package DIP-8
Input Voltage 85V–265V AC (Universal Input)
Output Power Up to 19W (Open Frame), Up to 12W (Enclosed Adapter)
Switching Frequency 132kHz (Typical)
Integrated MOSFET 700V Power MOSFET
Drain Breakdown Voltage 700V
Control Method PWM Control
Protection Features Auto-Restart, Thermal Shutdown, Current Limiting, Short Circuit Protection
Operating Temperature -40°C to +150°C (Junction)
Mounting Type Through Hole
Applications AC-DC Power Supplies, Battery Chargers, Adapters, LED Drivers, Smart Appliances, Industrial Electronics
RoHS Compliance Yes

Pin Configuration:

Pin Function
1 EN/UV (Enable/Undervoltage)
2 BP/M (Bypass/Multi-Function)
3 SOURCE
4 SOURCE
5 SOURCE
6 DRAIN
7 DRAIN
8 DRAIN
