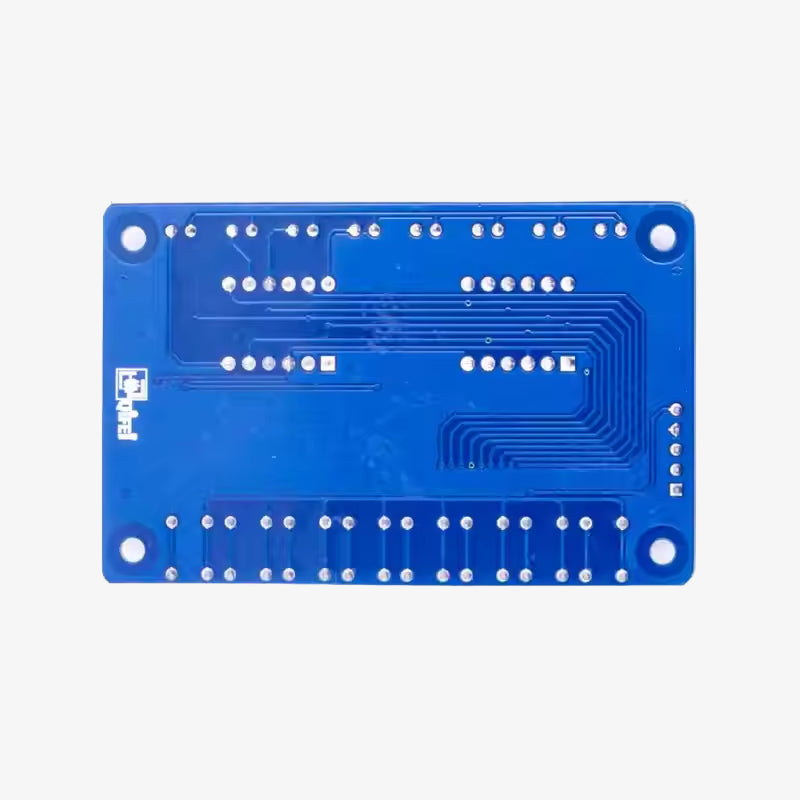

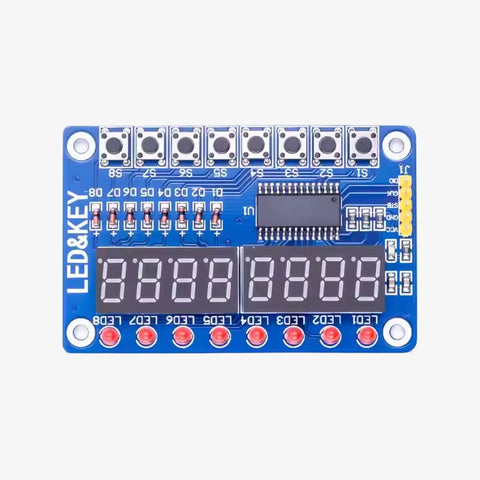

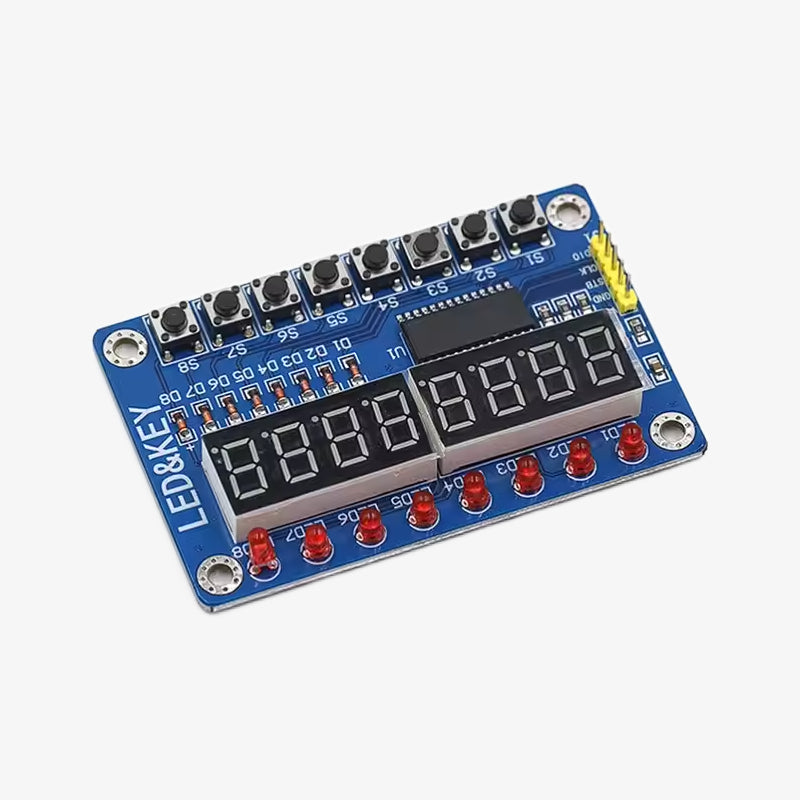

The TM1638 8-Bit Button Digital LED Display Module combines a 7-segment LED display, 8 tactile push buttons, and 8 LEDs into one compact board. It is driven by the TM1638 IC, which allows easy serial communication with microcontrollers like Arduino, STM32, and Raspberry Pi. This versatile module is ideal for projects requiring numeric display, user input, and status indication—all in one integrated interface.
Features of TM1638 8-Bit Button Digital LED Display Module:
- Integrated 8-digit 7-segment red LED display for numeric or status output
- 8 tactile push buttons for direct user interaction
- 8 individual red LEDs for visual feedback or signal indicators
- Controlled by TM1638 IC for simple serial interface (only 3 control pins required)
- Fully compatible with Arduino, STM32, and other microcontrollers
- Easy-to-use libraries available for quick setup and programming
- Ideal for DIY electronics, counters, scoreboards, control panels, and learning kits
Specifications of TM1638 8-Bit Button Digital LED Display Module:
- Display: 8-digit 7-segment LED
- Input: 8 push buttons
- Output: 8 LEDs
- Operating Voltage: 5V DC
- Interface: Serial (CLK, DIO, STB)
- IC: TM1638
- Application: User interfaces, control systems, DIY projects, training kits
Package Includes:
1 × TM1638 8-Bit Button Digital LED Display Module
