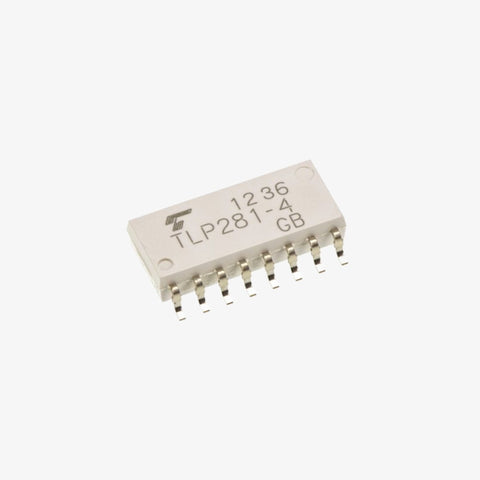

TLP281-4 Transistor Output Optocoupler IC (Toshiba) - SOIC-16 SMD Package

The TLP281-4 is a transistor output optocoupler designed by Toshiba for reliable signal isolation and noise reduction in electronic circuits. With its 16-pin SMD SOIC package, this optocoupler provides high performance and compact integration for a variety of applications.

Specifications:

• IC Type: Transistor Output Optocoupler
• Manufacturer: Toshiba
• Package Type: SMD SOIC
• Package Size: 16 Pins
• Collector-Emitter Voltage (Vce): 50 V
• Collector Current (Ic): 50 mA
• Current Transfer Ratio (CTR): 50% to 600% (at If = 5 mA)
• Isolation Voltage: 5 kV
• Operating Temperature Range: -40°C to +85°C

Pin Configuration:

1. Anode (A): LED Anode
2. Cathode (K): LED Cathode
3. Collector 1 (C1): Transistor Collector 1
4. Emitter 1 (E1): Transistor Emitter 1
5. Collector 2 (C2): Transistor Collector 2
6. Emitter 2 (E2): Transistor Emitter 2
7. Collector 3 (C3): Transistor Collector 3
8. Emitter 3 (E3): Transistor Emitter 3
9. Collector 4 (C4): Transistor Collector 4
10. Emitter 4 (E4): Transistor Emitter 4
11. Collector 5 (C5): Transistor Collector 5
12. Emitter 5 (E5): Transistor Emitter 5
13. Collector 6 (C6): Transistor Collector 6
14. Emitter 6 (E6): Transistor Emitter 6
15. Collector 7 (C7): Transistor Collector 7
16. Emitter 7 (E7): Transistor Emitter 7

Features:

• High isolation voltage: 5 kV
• Wide current transfer ratio: 50% to 600%
• Low input current for operation
• Compact 16-pin SMD SOIC package for space-saving design
• Suitable for signal isolation and noise reduction

Applications:

• Signal isolation
• Switching power supplies
• Data communication interfaces
• Noise reduction in electronic circuits
• Digital logic circuits

Package Includes:

1 x TLP281-4 Toshiba Transistor Output Optocoupler (SMD SOIC-16 Package)

Note: Product images are for illustrative purposes only and may differ from the actual product.
