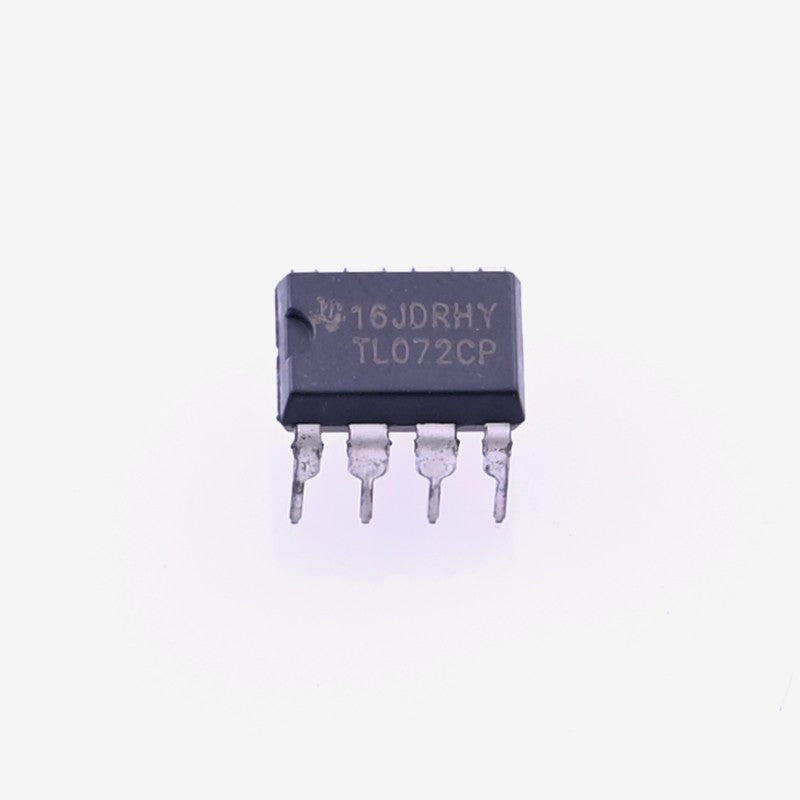

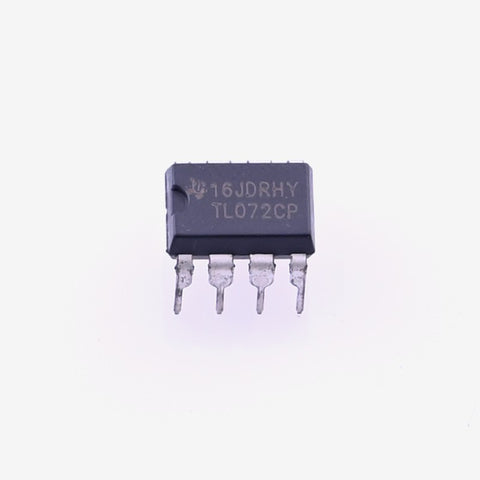

The TL072 is an Op-Amp IC that has a JFET input. Having a JFET at the input side will increase the bandwidth gain and reduce the input noise of the IC. Hence TL072 IC is commonly used in noise sensitive applications. Along with that, the Op-Amp also has a high input impedance and a low bias current, making it an ideal choice for audio pre-amplifiers.
Product Description of the TL072 - Low Noise Dual JFET Op-Amp IC
PIN DESCRIPTION
Features of TL072 - Low Noise Dual JFET Op-Amp IC
- Low Noise
- High slew rate: 16 V/µs (typ)
- High input impedance JFET input stage
- Output short-circuit protection
- Wide Common-Mode and Differential Voltage Ranges
- Internal Frequency Compensation
- Input Offset Voltage: 3 mV
- Input Offset Current: 5 pA
- Input Bias Current: 65 pA
- Common Mode Rejection: 100 dB
- Supply Current: 1.4 mA / Amplifier
- Supply Voltage: ±3V to ±15V
- Operating temperature: 0 to 70 °C
Additional Resources
TL072 - Low Noise Dual JFET Op-Amp IC datasheet
Package Contents
1× TL072 - Low Noise Dual JFET Op-Amp IC
