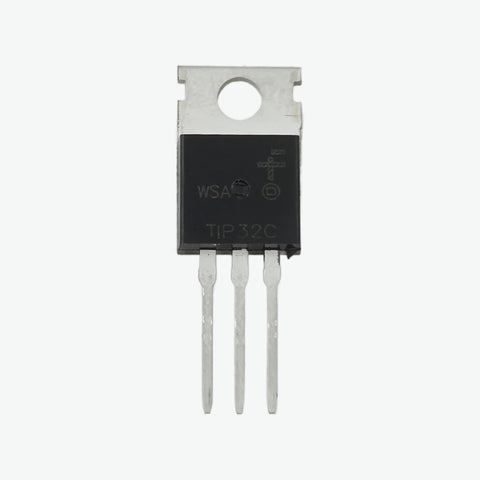

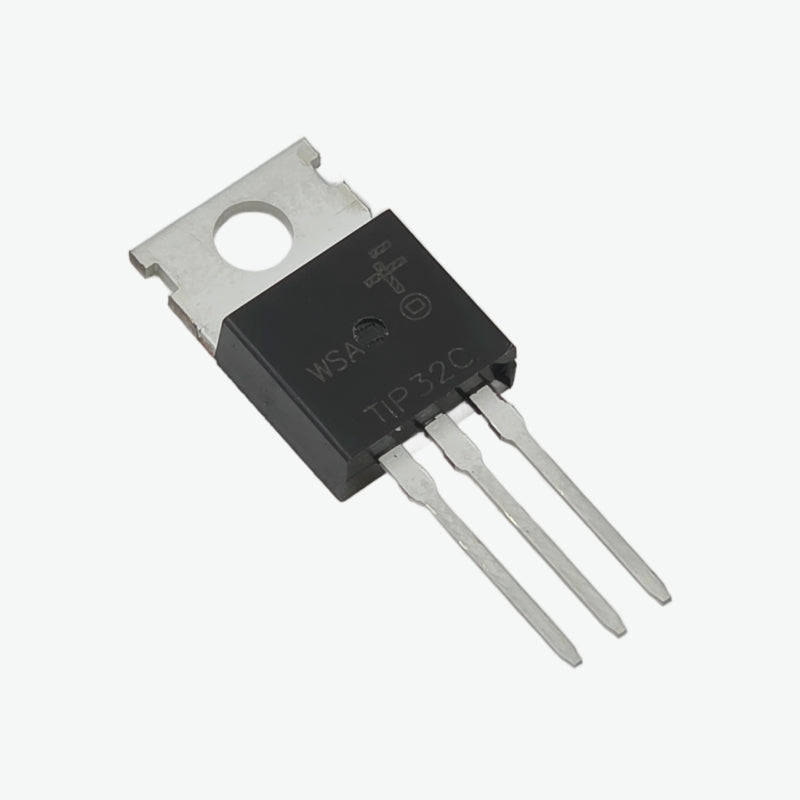

TIP32C PNP Bipolar Power Transistor (100V 3A TO-220) TIP32C PNP Bipolar Power Transistor (100V 3A TO-220)

QC1081

949 In stock

Rs. 12.00
(Excluding 18% GST)
-
+
[Delivery: 2 to 5 days]

TIP32 is a three-layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector-emitter voltage VCE.


Features:

• Low saturation voltage

• Simple drive requirements

• High safe operating area

• For low distortion complementary designs

• Easy to carry and handle



Detailed Specifications:

Transistor Polarity PNP
Collector−Emitter Voltage (VCEO) 40VDC
Collector−Base Voltage (VCBO) 40VDC
Continuous Collector Current (Ic) 3ADC
Continuous Base Current (Ib) 1ADC
Emitter Base Voltage (VEBO) 5VDC
Power Dissipation (Pd) 40W
Operating Temperature Range -65 - 150°C
DC Current Gain (hFE) 10-50

TIP32 is a three-layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector-emitter voltage VCE.


Features:

• Low saturation voltage

• Simple drive requirements

• High safe operating area

• For low distortion complementary designs

• Easy to carry and handle



Detailed Specifications:

Transistor Polarity PNP
Collector−Emitter Voltage (VCEO) 40VDC
Collector−Base Voltage (VCBO) 40VDC
Continuous Collector Current (Ic) 3ADC
Continuous Base Current (Ib) 1ADC
Emitter Base Voltage (VEBO) 5VDC
Power Dissipation (Pd) 40W
Operating Temperature Range -65 - 150°C
DC Current Gain (hFE) 10-50
