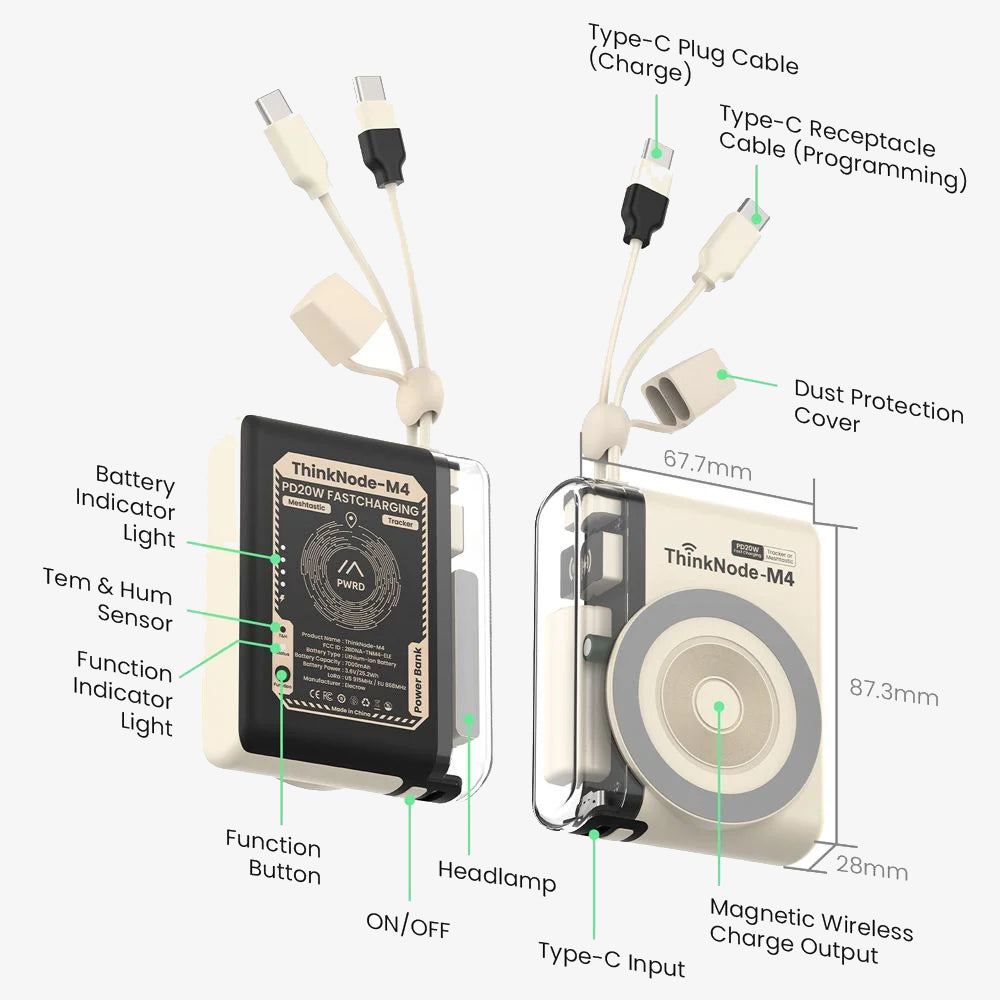

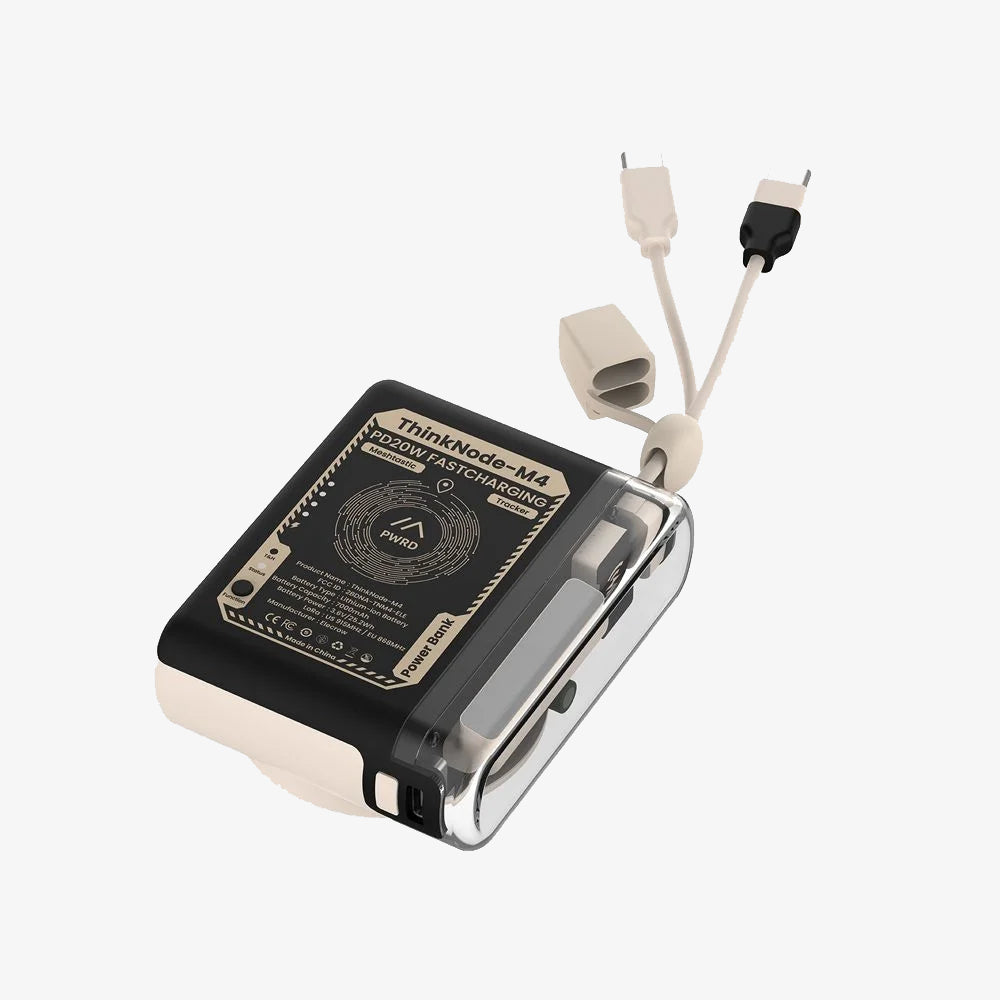

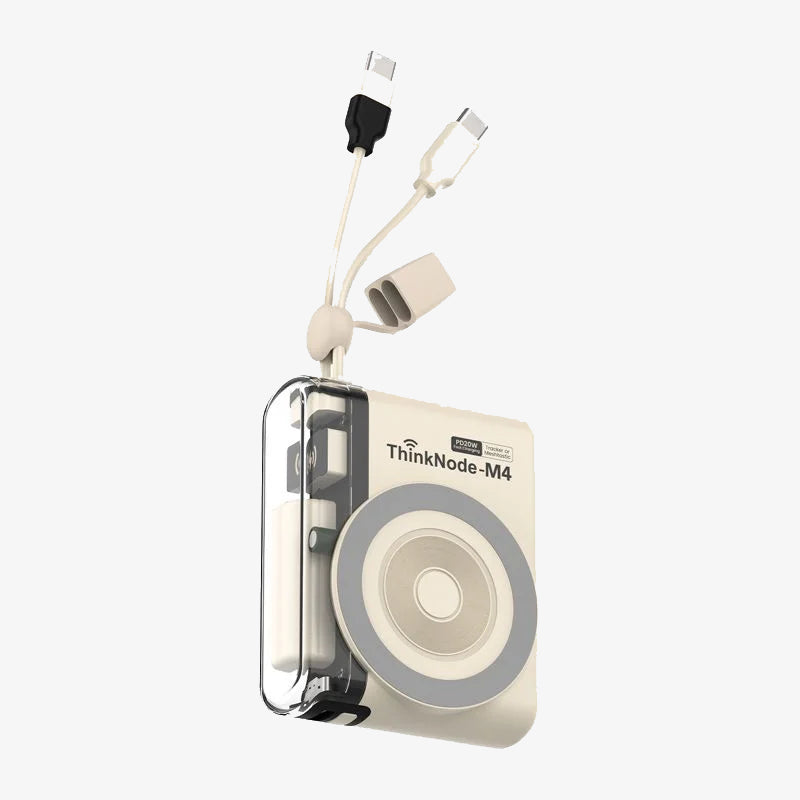

ThinkNode M4 Power Bank LoRa Device with LoRa Tracker Function is designed for portable power delivery and long-range LoRa communication with integrated GPS tracking and wireless charging support. Ideal for outdoor communication, emergency tracking, IoT applications, and mobile power backup solutions.





| Parameter | Value |
|---|---|
| Brand | ThinkNode |
| Model | M4 |
| Main Processor | nRF52840-QIAA |
| LoRa Chip | Semtech LR1110 |
| Firmware | Meshtastic Compatible |
| RAM | 256KB |
| Flash Memory | 3MB |
| LoRa Frequency | US915 / EU868 |
| Bluetooth | Bluetooth 5.4 + BLE |
| GPS Support | GPS / BeiDou / GLONASS / QZSS |
| Battery Type | 18650 Lithium-ion |
| Battery Capacity | 7000mAh |
| Rated Capacity | 3800mAh (5V/3A) |
| Battery Power | 25.2Wh |
| Conversion Efficiency | >74% |
| Type-C Input | 5V/3A, 9V/2A, 12V/1.5A |
| Type-C Output | 5V/3A, 9V/2A, 12V/1.5A |
| Wireless Charging Output | 5W / 7.5W / 10W / 15W |
| Charging Time | 3 – 4 Hours |
| Fast Charging Protocols | QC2.0, QC3.0, PD3.1, SCP, FCP, AFC |
| Sensors | Temperature, Humidity, |
| Power Consumption | Static: 45mA, Sleep: 55µA |
| Max Current | TX: 175mA, RX: 54mA |
| Storage Temperature | -20°C to +45°C |
| Dimensions | 87.3 × 67.7 × 28 mm |
| Enclosure Material | ABS + PC + TPE |
| Weight | 190 g |
1 x ThinkNode M4 Power Bank LoRa Device with LoRa Tracker Function
