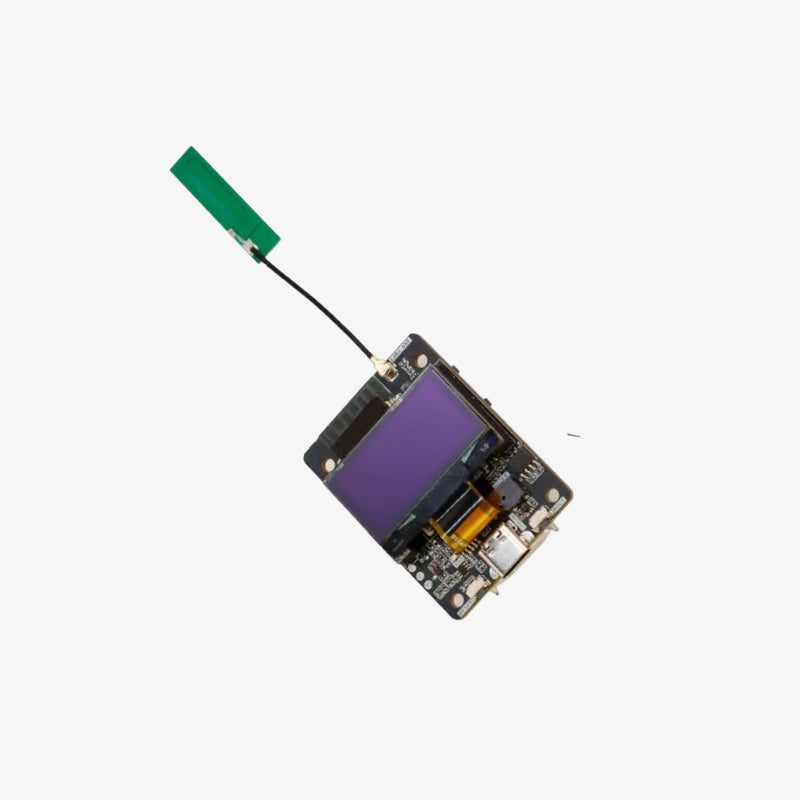

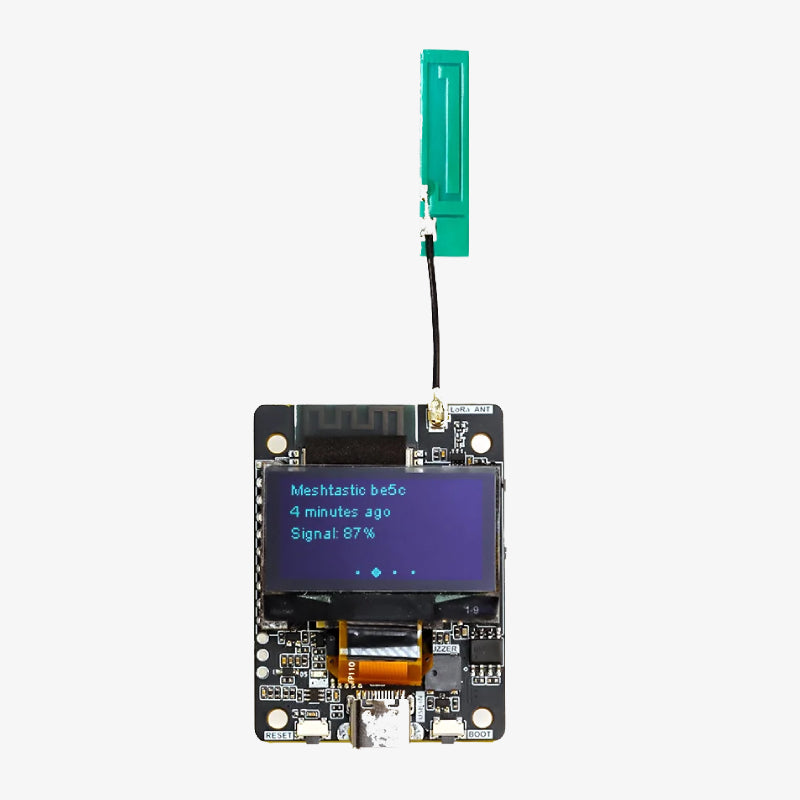

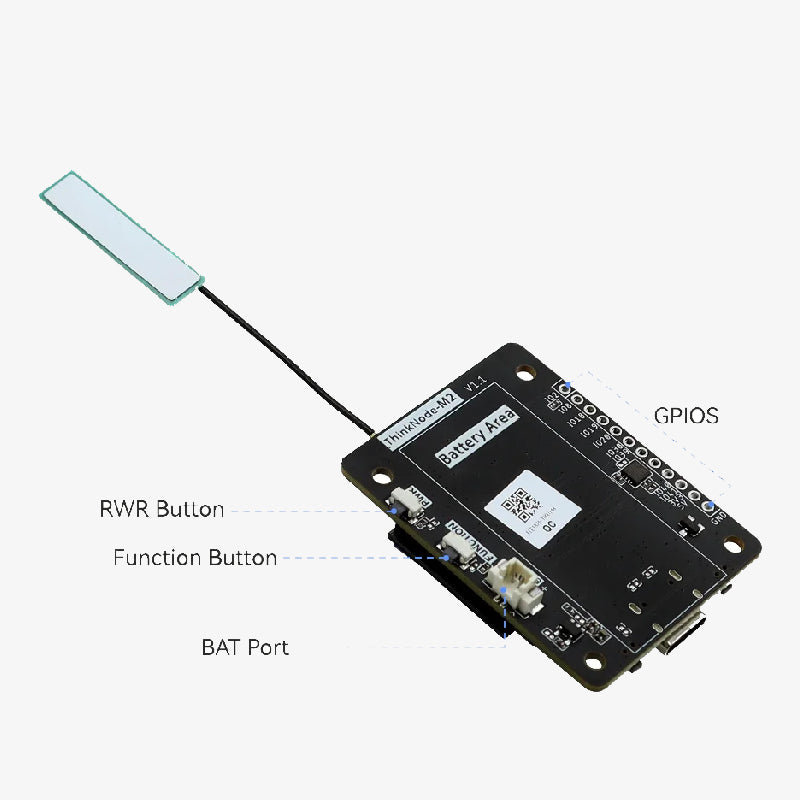

ThinkNode M2 Meshtastic (LoRa) Signal Transceiver with 1.3” OLED Display Powered By ESP32-S3 (Without Battery)
SKU:
MOD-QC5743
Availability:
Out Of Stock
-
- Rs. 1,915.00
- Unit price
- per
Subtotal:
Rs. 1,915.00
Description
xThinkNode M2 Meshtastic (LoRa) Signal Transceiver with 1.3” OLED Display is designed for long-range mesh communication using LoRa technology with full Meshtastic firmware compatibility. Ideal for off-grid messaging, IoT communication, emergency networking, and outdoor wireless applications.
Features:
- ESP32-S3 Dual-Core Processor
- Compatible with Meshtastic Firmware
- Built-in SX1262 LoRa Transceiver
- 1.3" OLED Display
- WiFi and Bluetooth 5.0 Connectivity
- USB Type-C Interface
- Low Power Operation
- Compact Portable Design
Specifications:
| Parameter | Value |
|---|---|
| Brand | ThinkNode |
| Model | M2 Meshtastic |
| Processor | ESP32-S3 Xtensa LX7 Dual-Core |
| Clock Frequency | Up to 240 MHz |
| SRAM | 512KB |
| PSRAM | 8MB |
| Flash | 4MB |
| ROM | 384KB |
| Display Size | 1.3 inch |
| Display Type | OLED |
| Resolution | 128 × 64 |
| Display Driver | SSH1106 |
| WiFi | 802.11 a/b/g/n (2.4GHz) |
| Bluetooth | BLE + Bluetooth 5.0 |
| LoRa Chip | SX1262 |
| LoRa Frequency | US915 / EU868 |
| Interface | USB Type-C, IPEX Antenna |
| Power Input | 5V / 1A |
| Max Power Consumption | ~217mA |
| Low Power Consumption | ~136mA |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Dimensions | 51.5 × 37 × 9.5 mm |
| Weight | 30 g |
Package Includes:
1 x ThinkNode M2 Meshtastic (LoRa) Signal Transceiver with 1.3” OLED Display
