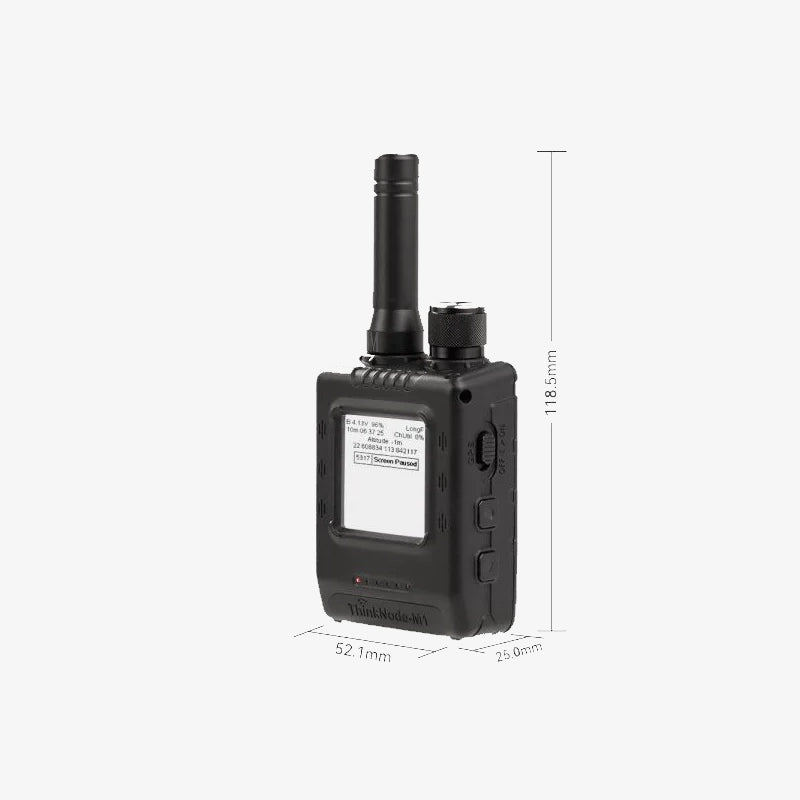

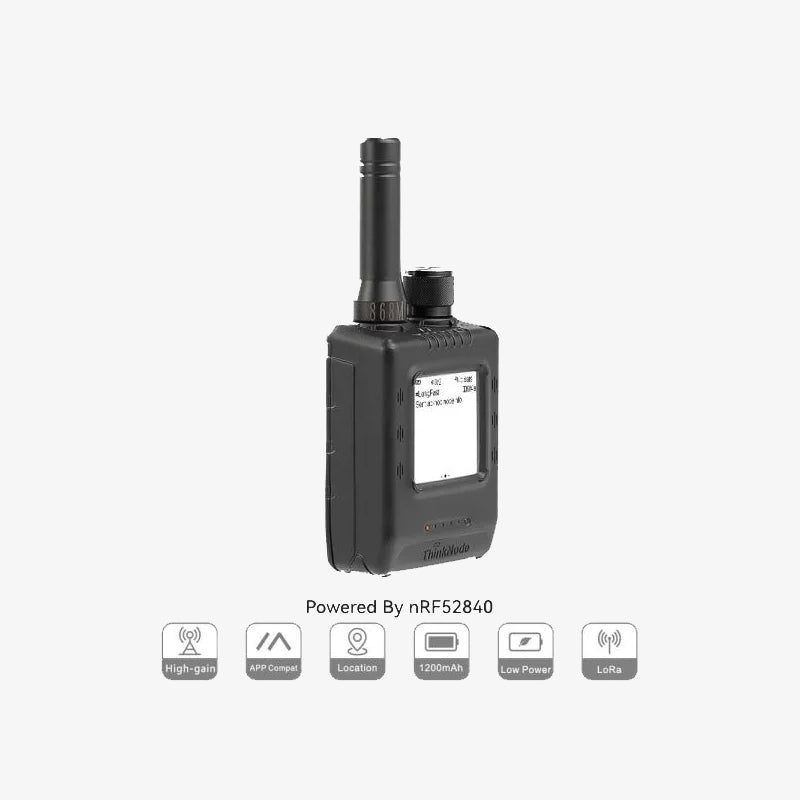

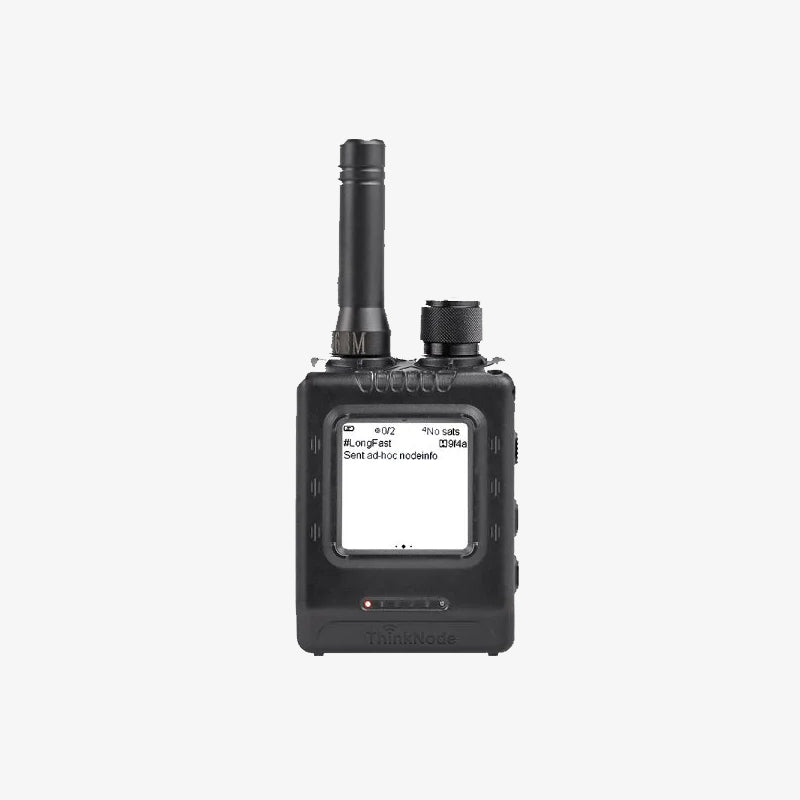

ThinkNode 915 MHz M1-LoRa Meshtastic Communication Device With 1.54" EPD Screen
SKU:
MOD-QC5745
Availability:
Out Of Stock
-
- Rs. 5,490.00
- Unit price
- per
Subtotal:
Rs. 5,490.00
Description
xThinkNode 915 MHz M1 LoRa Meshtastic Communication Device with 1.54" EPD Screen is designed for long-range off-grid communication using Meshtastic firmware and LoRa technology. Ideal for outdoor communication, emergency networking, IoT applications, and low-power wireless messaging systems.
Features:
- Nordic nRF52840 Main Processor
- Fully Compatible with Meshtastic Firmware
- 1.54" Electronic Paper Display (EPD)
- Built-in SX1262 LoRa Module
- Bluetooth 5.0 Connectivity
- Integrated GPS Positioning Support
- Ultra Low Power Consumption
- External RP-SMA Antenna Interface
Specifications:
| Parameter | Value |
|---|---|
| Brand | ThinkNode |
| Model | M1 |
| Processor | Nordic nRF52840 |
| CPU | ARM Cortex-M4 @ 64MHz |
| RAM | 256KB |
| Flash Memory | 3MB |
| Firmware | Meshtastic Compatible |
| Display Size | 1.54 inch |
| Display Type | E-Paper (EPD) |
| Resolution | 200 × 200 |
| Display Driver | SSD1681 |
| Refresh Time | 2s |
| Bluetooth | BLE + Bluetooth 5 |
| LoRa Chip | SX1262 |
| LoRa Frequency | US915 / EU868 |
| LoRa Output Power | +22 dBm |
| GPS Support | GPS / GLONASS / BeiDou / QZSS |
| Interface | USB Type-C, RP-SMA |
| Battery Capacity | 1200mAh |
| Power Input | 5V / 1A |
| Max Working Current | ~85mA |
| Low Power Consumption | ~5.6µA |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Dimensions | 82 × 51.6 × 26.3 mm |
| Material | ABS Plastic |
| Weight | 81 g |
Package Includes:
1 x ThinkNode 915 MHz M1 LoRa Meshtastic Communication Device with 1.54" EPD Screen
