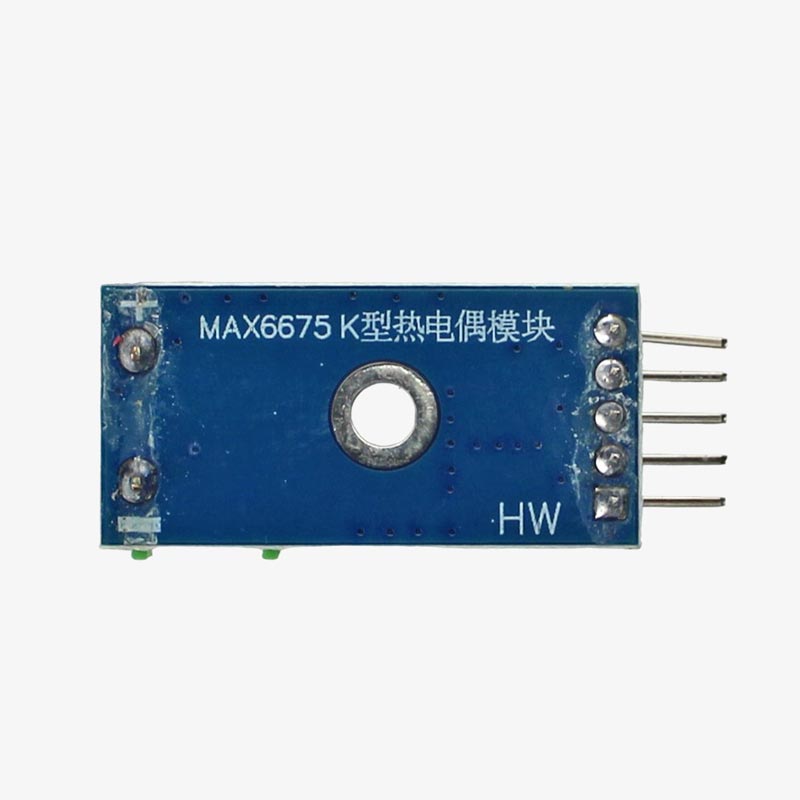

Thermal Sensor Relay Module (MAX6675) Thermal Sensor Relay Module (MAX6675)

QC0818

20 In stock

Rs. 420.00
-
+
Rs. 420.00
(inc. GST)
[Delivery: 2 to 5 days]

The MAX6675 Thermocouple Sensor Module uses K-Type Thermocouples and converts the data into digital format and provides data to SPI interfaces. The sensor is useful to provide accurate temperature-compensated measurement of the supplied K-Type thermocouple sensor. The data output in a 12-bit resolution, SPI compatible, read-only format. The MAX6675 converter has a resolution of 0.25°C temperature. It allows readings as high as +1024°C, and exhibits thermocouple accuracy of 8 LSBs for temperatures ranging from 0°C to +700°C. The working voltage is 5V and the measurement accuracy is ± 1.5 °C.

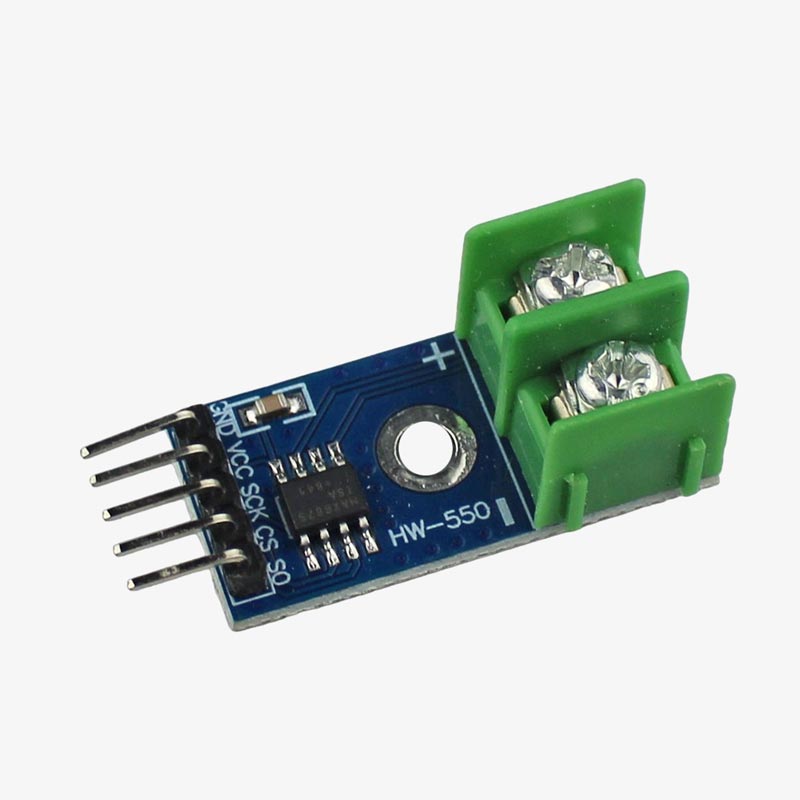

MAX6675a pinout:

MAX6675





Specifications

  1. Input voltage range: -0.3V-6V DC
  2. Output current: 50mA
  3. Supported Thermocouple Type: K-Type
  4. Resolution: 0.25°C, 12 Bit
  5. Interface: SPI
  6. Max Temp: +1024°C
  7. Lowest Temp : 0°C
  8. Open Thermocouple Detection


MAX6675a Dimension and footprint:

MAX6675a-Dimension

MAX6675a Applications:

  • Industrial
  • HVAC
  • Appliances
  • Heaters
  • High Temperature Monitor


Example Projects on MAX6675a:

MAX6675 Interfacing with Arduino

Additional Resources:

MAX6675a Datasheet


Package Contains

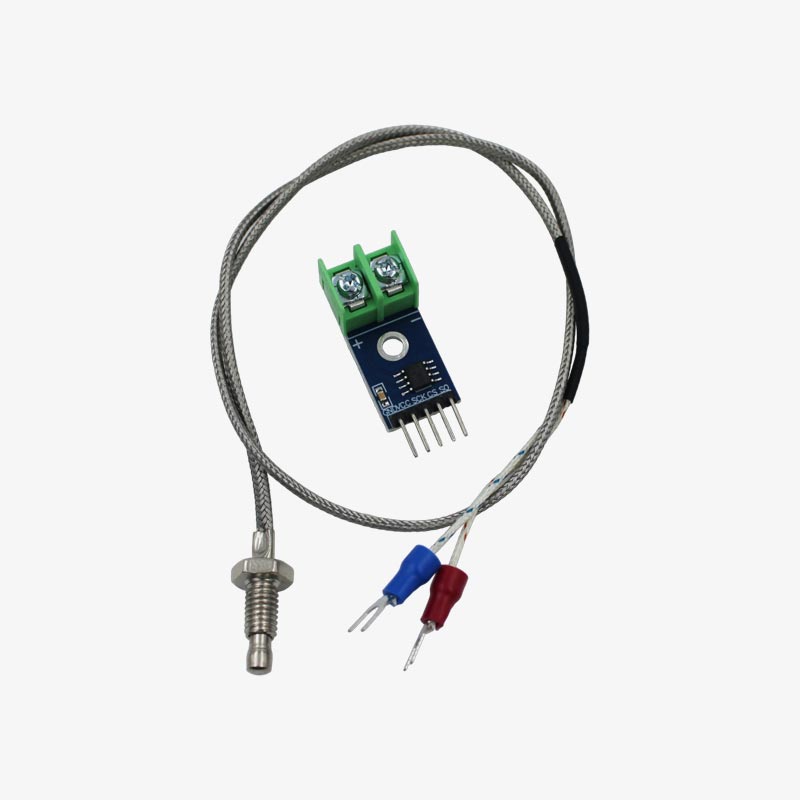

1x MAX6675a module

The MAX6675 Thermocouple Sensor Module uses K-Type Thermocouples and converts the data into digital format and provides data to SPI interfaces. The sensor is useful to provide accurate temperature-compensated measurement of the supplied K-Type thermocouple sensor. The data output in a 12-bit resolution, SPI compatible, read-only format. The MAX6675 converter has a resolution of 0.25°C temperature. It allows readings as high as +1024°C, and exhibits thermocouple accuracy of 8 LSBs for temperatures ranging from 0°C to +700°C. The working voltage is 5V and the measurement accuracy is ± 1.5 °C.



MAX6675a pinout:

MAX6675





Specifications

  1. Input voltage range: -0.3V-6V DC
  2. Output current: 50mA
  3. Supported Thermocouple Type: K-Type
  4. Resolution: 0.25°C, 12 Bit
  5. Interface: SPI
  6. Max Temp: +1024°C
  7. Lowest Temp : 0°C
  8. Open Thermocouple Detection


MAX6675a Dimension and footprint:

MAX6675a-Dimension

MAX6675a Applications:

  • Industrial
  • HVAC
  • Appliances
  • Heaters
  • High Temperature Monitor


Example Projects on MAX6675a:

MAX6675 Interfacing with Arduino

Additional Resources:

MAX6675a Datasheet


Package Contains

1x MAX6675a module
