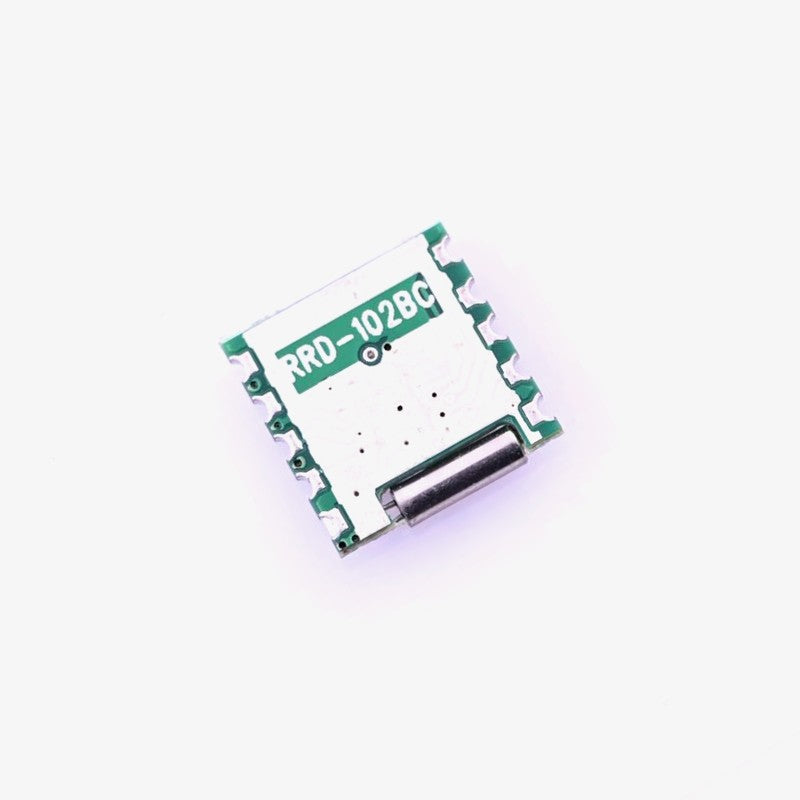

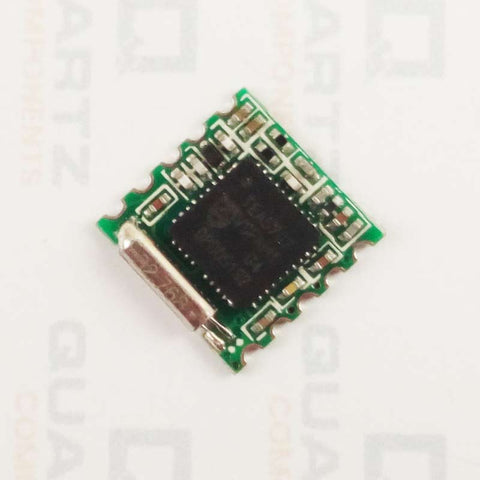

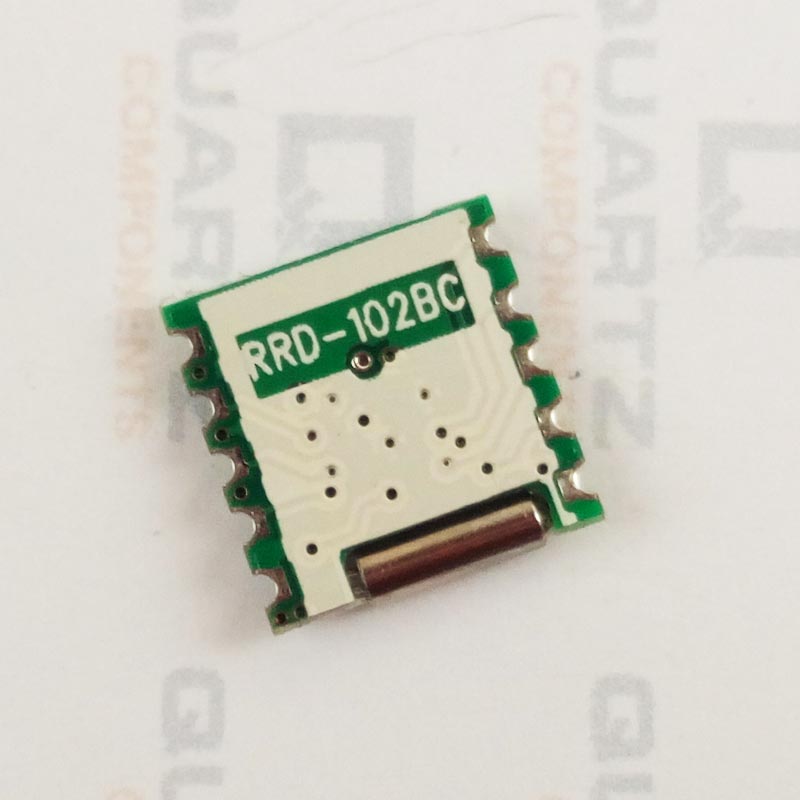

TEA5767 FM Radio Module TEA5767 FM Radio Module

QC0496

4 In stock

Rs. 189.00
-
+
Rs. 189.00
(inc. GST)

If you want to use a stereo FM Radio in your car or any other vehicle but do not want to spend more on buying the products available in market and you are a DIY enthusiast then this FM Radio Module is for you. IT is made using TEA5767 FM Radio IC. Which is a single chip electronically tuned FM Radio for low voltage applications like embedded systems controllers like Arduino and other 3.3V development boards. It also has Intermediate frequency selectivity feature and FM Demodulator feature embedded in itself. It is very easy to interface and as it communicates using I2C communication protocol so it is very easy to interface with other development boards and with adding some minimal additional systems you can actually use it as a stand alone system. As it supports 88MHz to 108MHz so it can be easily tuned into Indian, Japanese, Europe and US FM stations.

TEA5767 FM Radio Module Specifications

  • High Sensitivity due to integrated low noise input amplifier
  • RF AGC (Automatic Gain Control) circuit
  • Standby Mode, Soft Mute
  • Adjustment free stereo decoder
  • Phase Locked Loop synthesizer turning system
  • Internal FM IF selectivity, LC Tuner Oscillator with low cost fixed chip inductors
  • Fully integrated FM demodulator
  • Crystal reference frequency oscillator
  • 3V Operating Voltage
  • Interface I2C
  • Frequency Range: 76MHz ~ 108MHz

Product Description

TEA5767 FM Radio Module

If you want to use it with any development board or microcontroller you have to use SDA pin and SCL pin and connect it to I2C pins in the board and power the device with VCC and GND pins.

Package Contents

1× TEA5767 FM radio module

If you want to use a stereo FM Radio in your car or any other vehicle but do not want to spend more on buying the products available in market and you are a DIY enthusiast then this FM Radio Module is for you. IT is made using TEA5767 FM Radio IC. Which is a single chip electronically tuned FM Radio for low voltage applications like embedded systems controllers like Arduino and other 3.3V development boards. It also has Intermediate frequency selectivity feature and FM Demodulator feature embedded in itself. It is very easy to interface and as it communicates using I2C communication protocol so it is very easy to interface with other development boards and with adding some minimal additional systems you can actually use it as a stand alone system. As it supports 88MHz to 108MHz so it can be easily tuned into Indian, Japanese, Europe and US FM stations.

TEA5767 FM Radio Module Specifications

  • High Sensitivity due to integrated low noise input amplifier
  • RF AGC (Automatic Gain Control) circuit
  • Standby Mode, Soft Mute
  • Adjustment free stereo decoder
  • Phase Locked Loop synthesizer turning system
  • Internal FM IF selectivity, LC Tuner Oscillator with low cost fixed chip inductors
  • Fully integrated FM demodulator
  • Crystal reference frequency oscillator
  • 3V Operating Voltage
  • Interface I2C
  • Frequency Range: 76MHz ~ 108MHz

Product Description

TEA5767 FM Radio Module

If you want to use it with any development board or microcontroller you have to use SDA pin and SCL pin and connect it to I2C pins in the board and power the device with VCC and GND pins.

Package Contents

1× TEA5767 FM radio module
