TB6560 Stepper Motor Driver Module TB6560 Stepper Motor Driver Module

QC0809

8 In stock

Rs. 499.00
-
+
Rs. 499.00
(inc. GST)
[Delivery: 2 to 5 days]

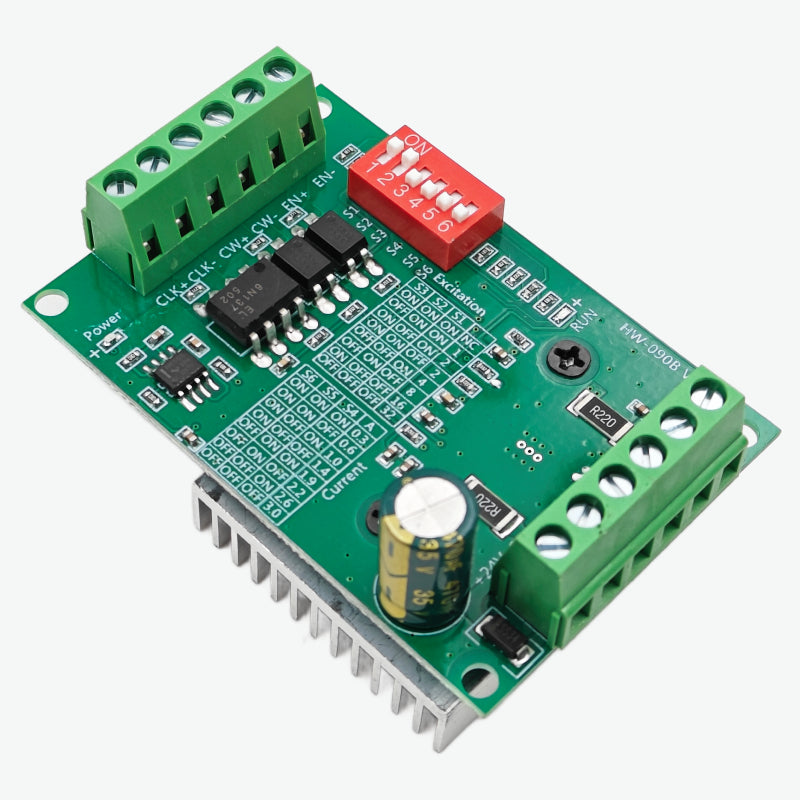

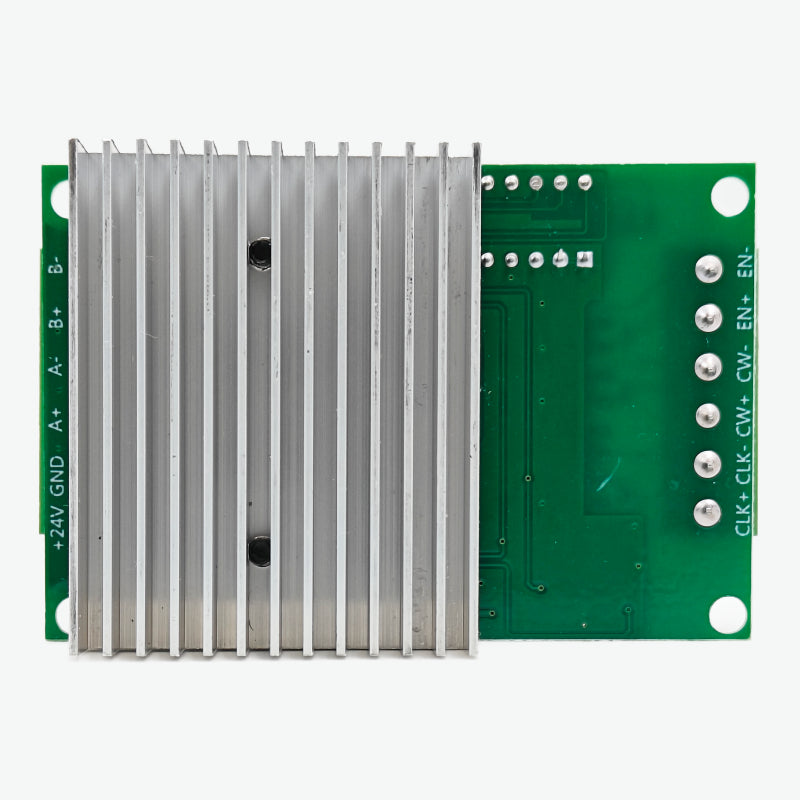

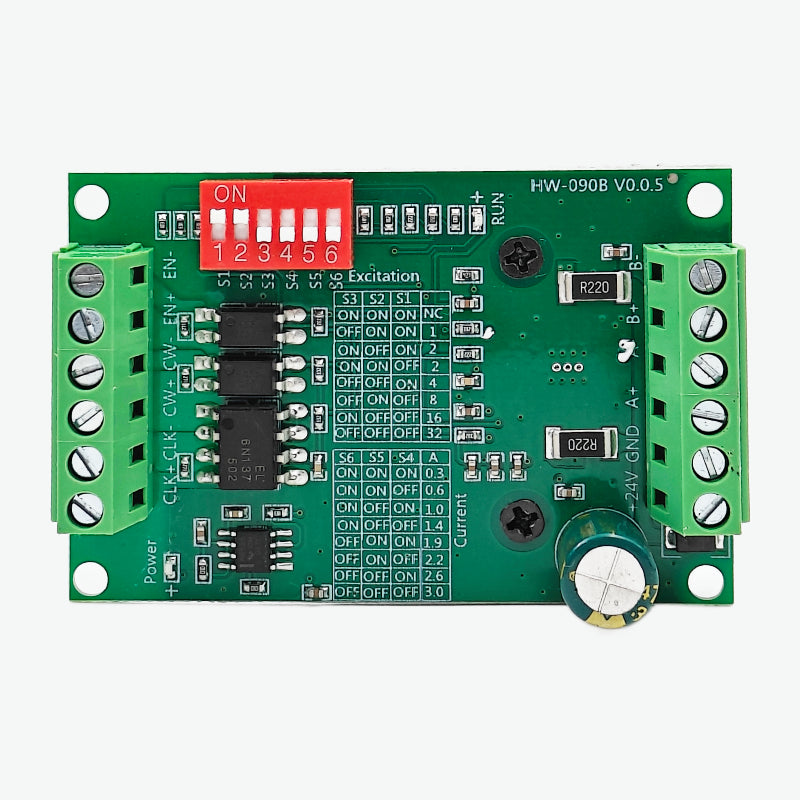

Stepper Motors are used in applications where you need to precisely control the position of the motor in applications like CNC machining, robotics and 3D printing. A4988, DRV8825, TMC2208, TB6560 are some of the Driver ICs we use for driving the stepper motors. But if you want complete control of the motor where you can control the steps, current flowing per winding, rotation direction of a stepper motor with maximum current of the 3A then TB6560 Stepper Motor Driver Module is the solution for you. This module can be powered by DC voltage ranging from 10V to 32V but is best powered by 24Vdc power supply. It has 6N137 high speed opto-couplers to ensure motor does not step out. It comes with Toshiba TB6560AHQ chip which has features like low-voltage shutdown, overheating parking and over-current protection circuit to ensure optimal performance. Rated current is 3A with peak of 3.5A with adjustable currents to meet your requirements. To ensure smooth working It has large heat sink to dissipate heat generated during operations.



Specifications

  • Operating Voltage: 10V-32V
  • Operating currents: 3A
  • Stepper driver IC: TB6560AHQ
  • 6N137 High Speed Optocouplers for ensuring motor doesn’t step out



Component Description

TB6560



Package Contents

1× TB6560 Stepper Motor Driver Module

Stepper Motors are used in applications where you need to precisely control the position of the motor in applications like CNC machining, robotics and 3D printing. A4988, DRV8825, TMC2208, TB6560 are some of the Driver ICs we use for driving the stepper motors. But if you want complete control of the motor where you can control the steps, current flowing per winding, rotation direction of a stepper motor with maximum current of the 3A then TB6560 Stepper Motor Driver Module is the solution for you. This module can be powered by DC voltage ranging from 10V to 32V but is best powered by 24Vdc power supply. It has 6N137 high speed opto-couplers to ensure motor does not step out. It comes with Toshiba TB6560AHQ chip which has features like low-voltage shutdown, overheating parking and over-current protection circuit to ensure optimal performance. Rated current is 3A with peak of 3.5A with adjustable currents to meet your requirements. To ensure smooth working It has large heat sink to dissipate heat generated during operations.



Specifications

  • Operating Voltage: 10V-32V
  • Operating currents: 3A
  • Stepper driver IC: TB6560AHQ
  • 6N137 High Speed Optocouplers for ensuring motor doesn’t step out



Component Description

TB6560



Package Contents

1× TB6560 Stepper Motor Driver Module
