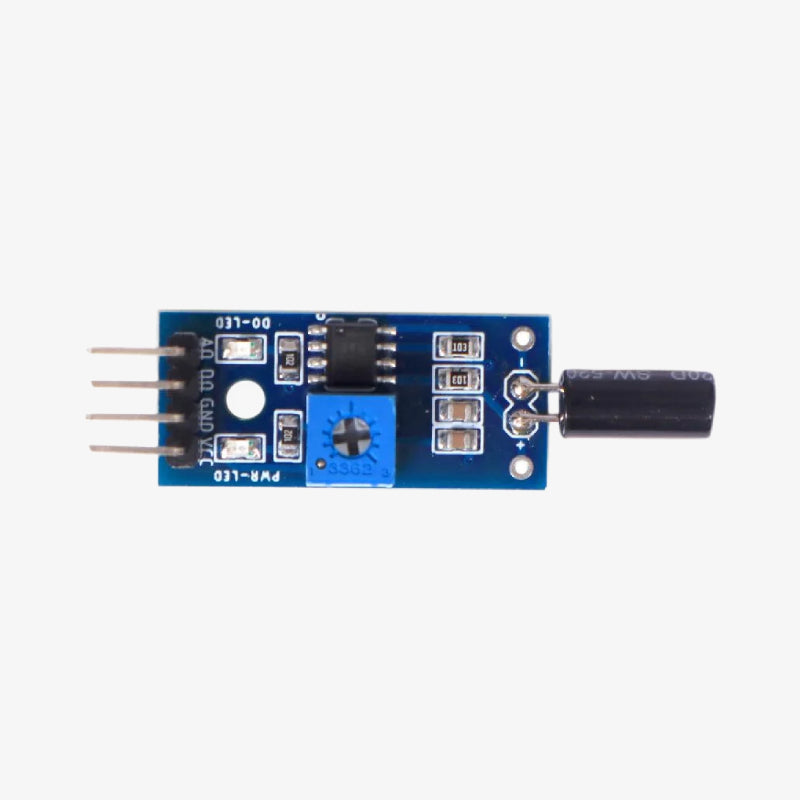

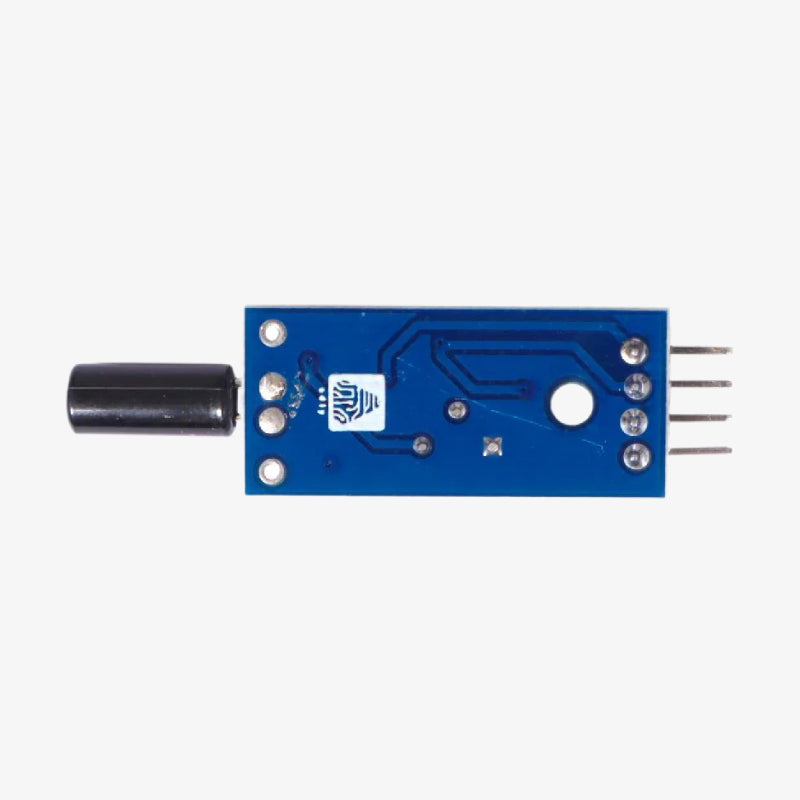

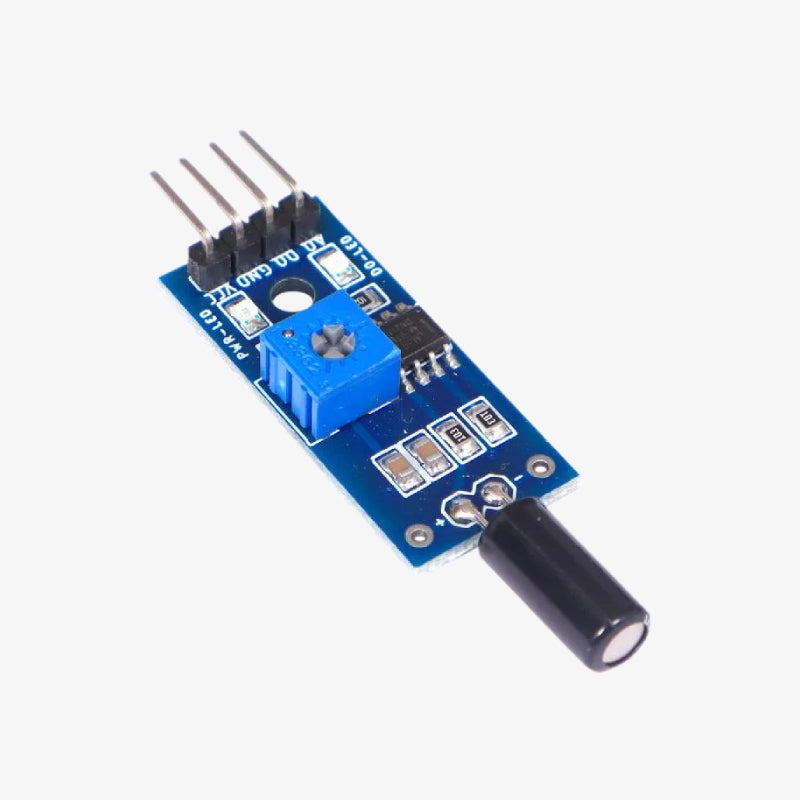

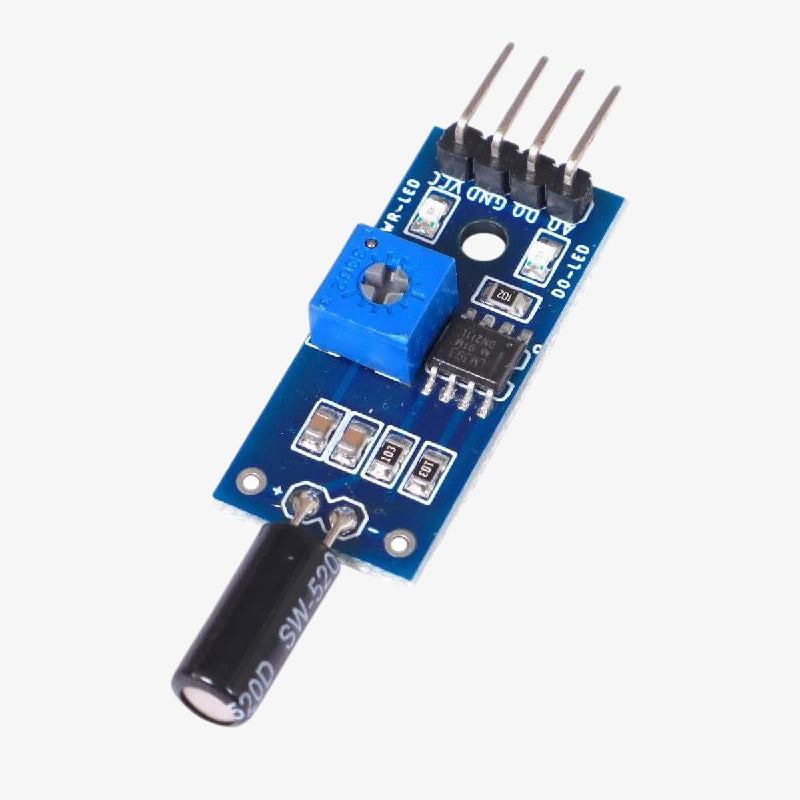

The SW520D Tilt Sensor Module is a simple motion-detection module that senses orientation and tilt using the SW520D tilt switch. It outputs a digital signal whenever the module’s position changes, making it ideal for angle detection, vibration sensing, and motion-triggered applications. Compact and easy to interface, it works seamlessly with Arduino, ESP32, Raspberry Pi, and other microcontrollers for use in DIY electronics, robotics, alarms, and smart devices.
Features of SW520D Tilt Sensor Module:
- Detects tilt, vibration, and orientation changes.
- Provides a digital output signal (HIGH/LOW).
- Compatible with Arduino, ESP32, Raspberry Pi, and other controllers.
- Simple 3-pin interface (VCC, GND, DOUT).
- Adjustable sensitivity via onboard potentiometer.
- Onboard status LED for signal indication.
- Compact, lightweight, and easy to integrate into projects.
Specifications of SW520D Tilt Sensor Module:
- Module Type: Tilt / Vibration Sensor Module
- Sensor Model: SW520D Tilt Switch
- Operating Voltage: 3.3V – 5V DC
- Output Type: Digital (0 or 1)
- Interface: 3-pin (VCC, GND, DOUT)
- Dimensions: 32mm × 14mm × 12mm
- Weight: 4g
Package Includes:
1 × SW520D Tilt Sensor Module
