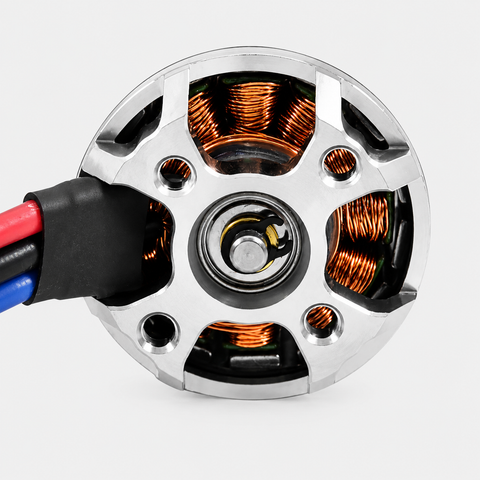

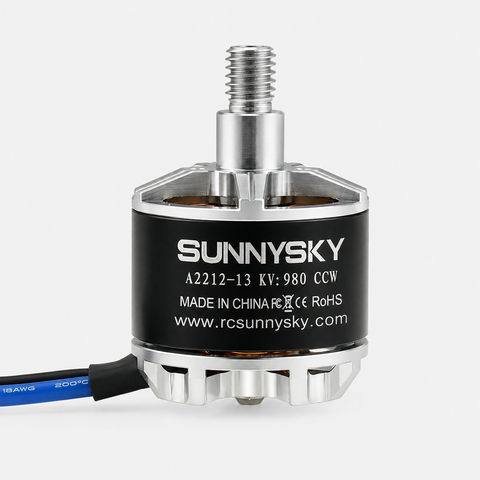

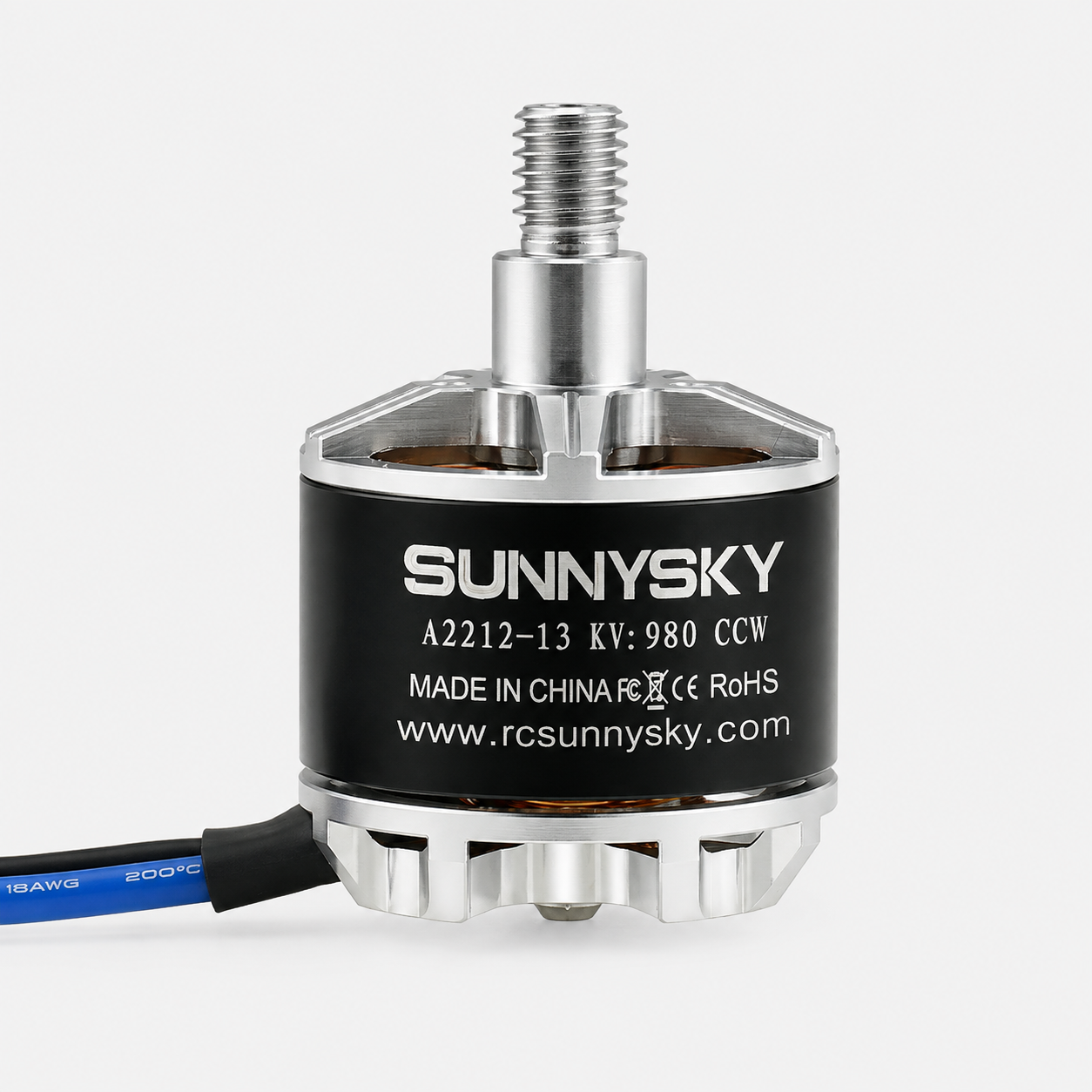

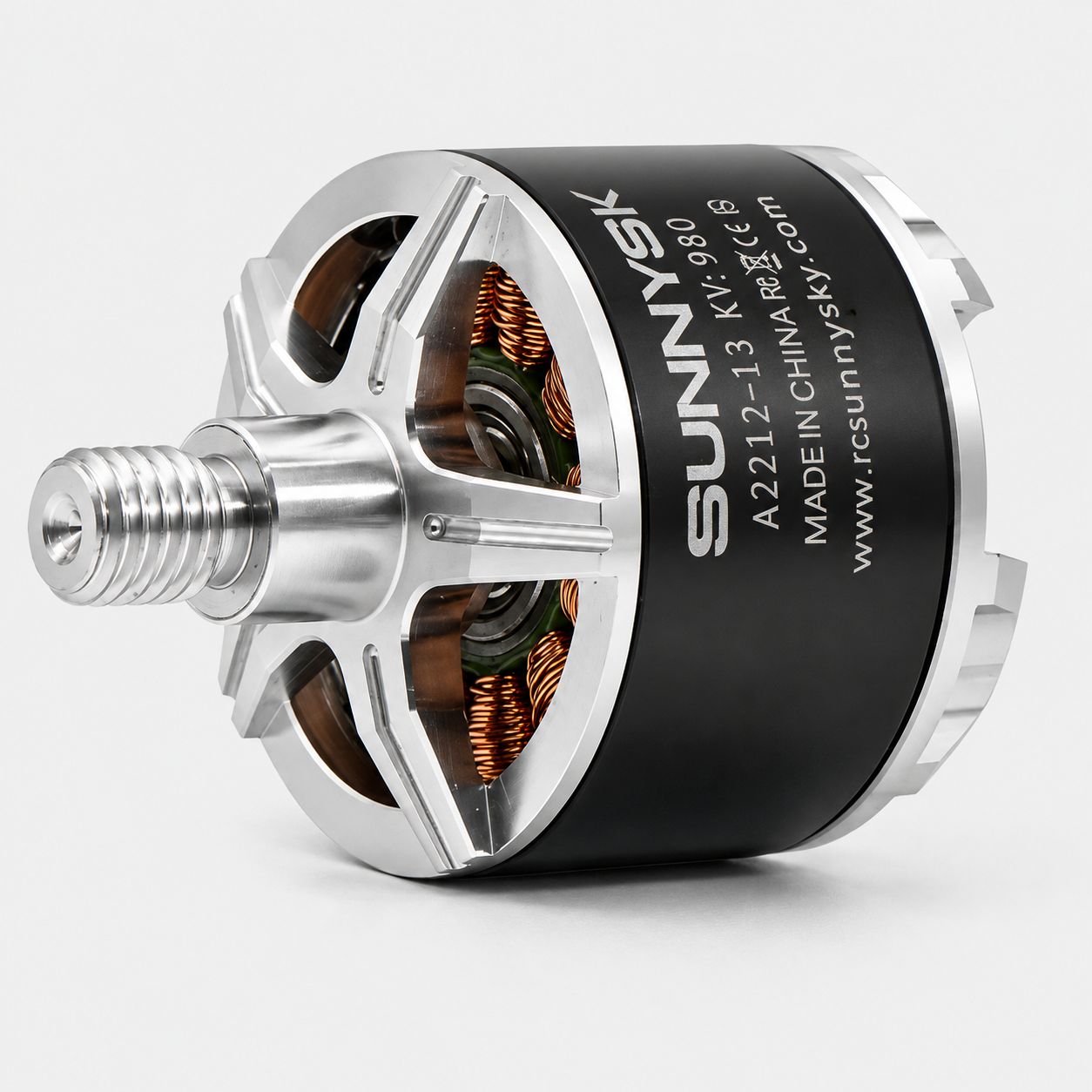

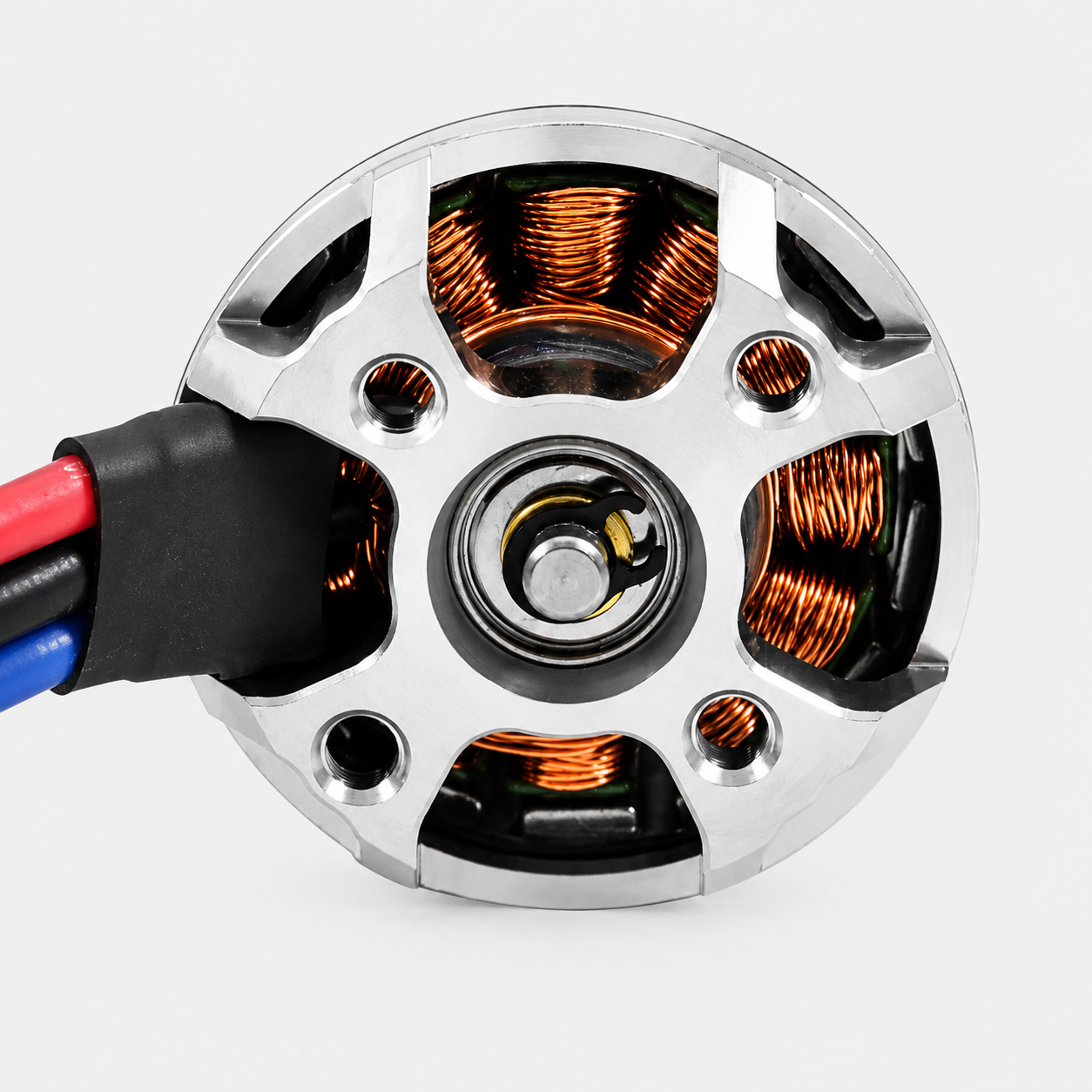

Sunny Sky A2212 980KV Brushless Motors - CCW

Brand: Sunny Sky
SKU: MTR-QC6103
Availability: 4 In Stock
Rs. 1,635.00
Subtotal: Rs. 1,635.00
Description
Description
x

Sunny Sky A2212 980KV Brushless Motor - CCW is a high-efficiency brushless outrunner motor designed for quadcopters, multirotors, RC airplanes, and UAV applications. Featuring a 980KV rating, precision-balanced rotor, and high-quality bearings, it delivers excellent thrust, smooth performance, and reliable operation. The counterclockwise (CCW) rotation version is optimized for use with compatible propellers and is ideal for aerial photography, hobby aircraft, and DIY drone projects.

Features:

  1. High-performance 980KV brushless outrunner motor.
  2. Counterclockwise (CCW) rotation for multirotor applications.
  3. High efficiency with smooth and stable operation.
  4. Precision-balanced rotor minimizes vibration.
  5. High-quality ball bearings for long service life.
  6. Lightweight aluminum alloy housing.
  7. Strong permanent magnets for improved torque.
  8. Compatible with 3S–4S LiPo batteries.
  9. Suitable for quadcopters, RC airplanes, and UAVs.
  10. Ideal for aerial photography, multirotors, and DIY drone projects.

Specifications:

Parameter Value
Product Type Brushless DC Outrunner Motor
Model Sunny Sky A2212
KV Rating 980KV
Rotation Direction Counterclockwise (CCW)
Motor Configuration 12N14P
Stator Diameter 22mm
Stator Thickness 12mm
Rotor Diameter 27.5mm
Body Length 40mm
Shaft Diameter 3.17mm
Operating Voltage 3S–4S LiPo
Maximum Continuous Current 20A (30 Seconds)
Maximum Continuous Power 330W
No-Load Current 0.7A @ 10V
Motor Resistance 123mΩ
Recommended ESC 20A
Recommended Propeller 9 × 4.5 Inch
Weight 56g
Mounting Type Standard Multirotor Mount
Applications Quadcopters, Multirotors, RC Airplanes, UAVs, Aerial Photography, DIY Drone Projects


Also Check These Out:

5010 750KV High Torque Brushless Motor for Drone

RS2205 2300KV Brushless High Speed DC Motor for Drone (CW)

RS2205 2300KV Brushless High Speed DC Motor for Drone (CCW)

RS2205 2700KV Brushless High Speed DC Motor for Drone (CCW)

Package Includes:

1 × Sunny Sky A2212 980KV Brushless Motor - CCW
