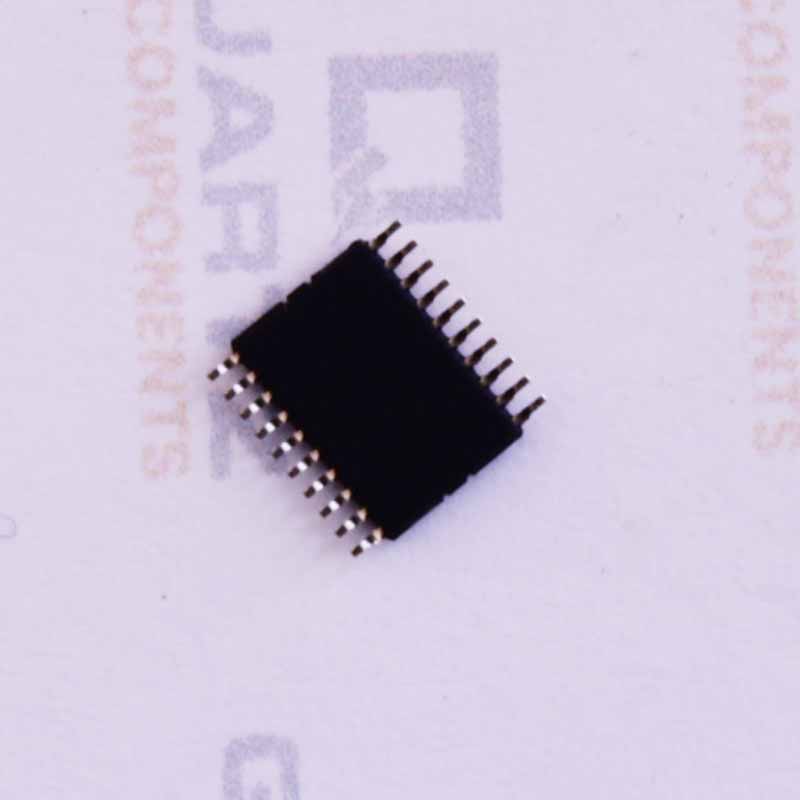

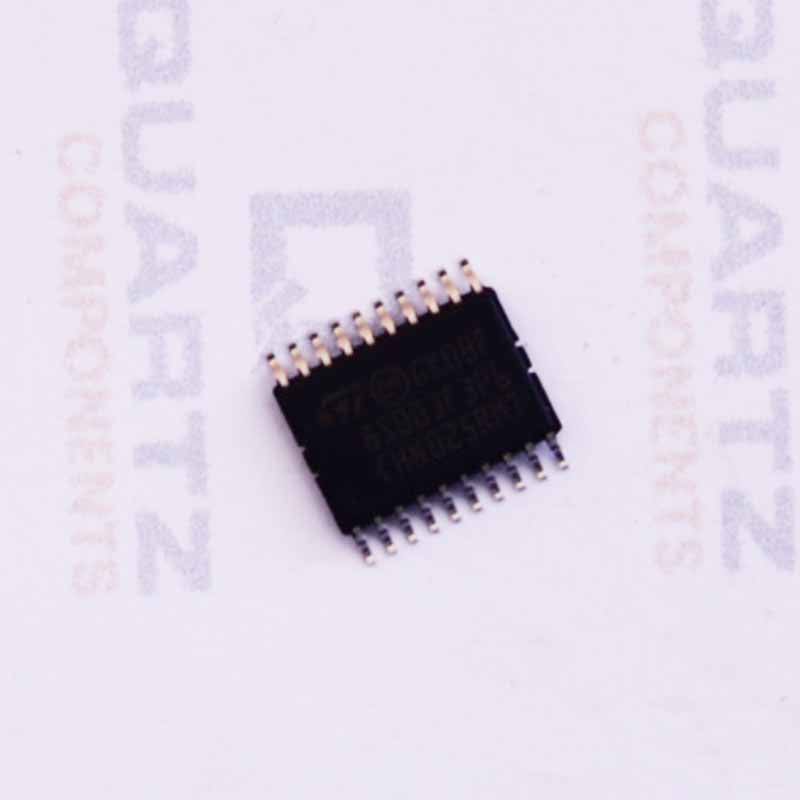

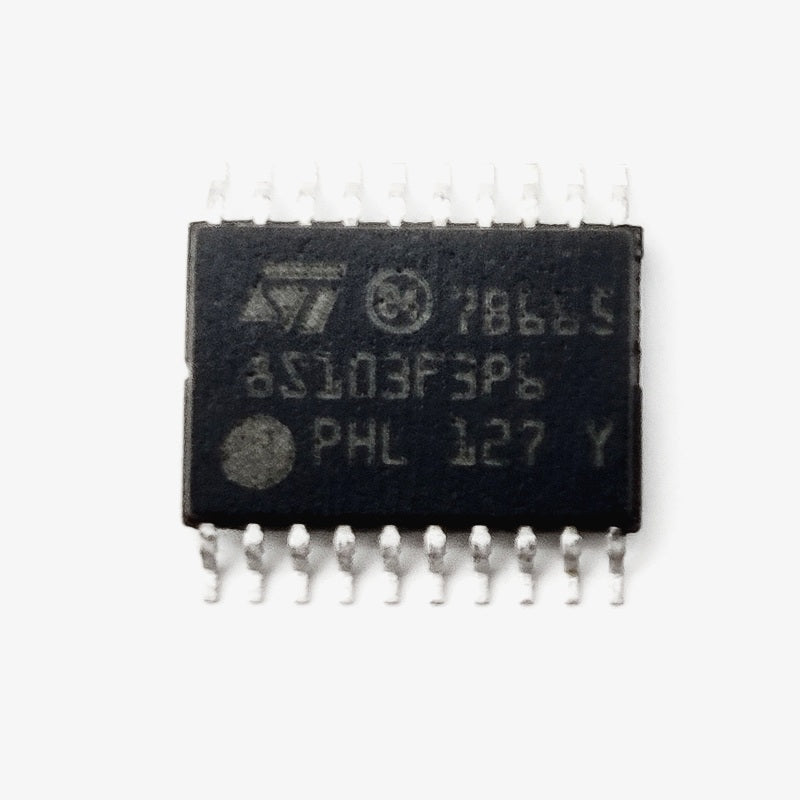

STM8S103F3P6 - STM8S 8-bit 8Kb Flash microcontroller 20-Pin TSSOP
Sold Out

STM8S103F3P6 - STM8S 8-bit 8Kb Flash microcontroller 20-Pin TSSOP STM8S103F3P6 - STM8S 8-bit 8Kb Flash microcontroller 20-Pin TSSOP

QC0720

Out of stock

Rs. 48.00

The STM8S103F3PS is a low density 8 bit microcontroller with 20 pins. It has a clock frequency of 16 MHz, 8k bytes of flash program memory, and an EEPROM up to 300,000 write/erase cycles. This microcontroller is a high-level system with built-in oscillators, a watchdog timer, and a brown-out reset. It is robust, has high performance, and a diverse set of development tools, making it a very reliable and simple-to-use microcontroller.


Product Description of STM8S103F3P6

STM8S103F3P6



PIN DESCRIPTION

STM8S103F3P6 Pin



Features of STM8S103F3P6

  • Core: STM8 Core with Harvard architecture and 3-Stage pipeline
  • Maximum Clock Frequency: 16 MHz
  • Program memory: 8 Kbytes Flash; data retention 20 years at 55 °C after 10k cycles
  • Data memory: 640 bytes true data EEPROM; endurance 300k cycles
  • RAM: 1 Kbytes
  • Operating Voltage : 2.95 to 5.5 V
  • 96-bit unique key for each device
  • Highly robust I/O design, immune against current injection
  • Maximum number of GPIOs (I/Os): 16
  • interrupt pins: 16
  • Peripheral set: Multipurpose timer (TIM1), SPI, I 2C, UART window WDG, independent WDG, ADC, PWM timer (TIM2),8-bit timer (TIM4)
  • A/D converter channels: 5
  • A wide choice of development tools
  • Reduced System Cost


Additional Resources

Package Contains

1 x STM8S103F3P6 - STM8S 8-bit 8Kb Flash microcontroller 20-Pin TSSOP

The STM8S103F3PS is a low density 8 bit microcontroller with 20 pins. It has a clock frequency of 16 MHz, 8k bytes of flash program memory, and an EEPROM up to 300,000 write/erase cycles. This microcontroller is a high-level system with built-in oscillators, a watchdog timer, and a brown-out reset. It is robust, has high performance, and a diverse set of development tools, making it a very reliable and simple-to-use microcontroller.


Product Description of STM8S103F3P6

STM8S103F3P6



PIN DESCRIPTION

STM8S103F3P6 Pin



Features of STM8S103F3P6

  • Core: STM8 Core with Harvard architecture and 3-Stage pipeline
  • Maximum Clock Frequency: 16 MHz
  • Program memory: 8 Kbytes Flash; data retention 20 years at 55 °C after 10k cycles
  • Data memory: 640 bytes true data EEPROM; endurance 300k cycles
  • RAM: 1 Kbytes
  • Operating Voltage : 2.95 to 5.5 V
  • 96-bit unique key for each device
  • Highly robust I/O design, immune against current injection
  • Maximum number of GPIOs (I/Os): 16
  • interrupt pins: 16
  • Peripheral set: Multipurpose timer (TIM1), SPI, I 2C, UART window WDG, independent WDG, ADC, PWM timer (TIM2),8-bit timer (TIM4)
  • A/D converter channels: 5
  • A wide choice of development tools
  • Reduced System Cost


Additional Resources

Package Contains

1 x STM8S103F3P6 - STM8S 8-bit 8Kb Flash microcontroller 20-Pin TSSOP
