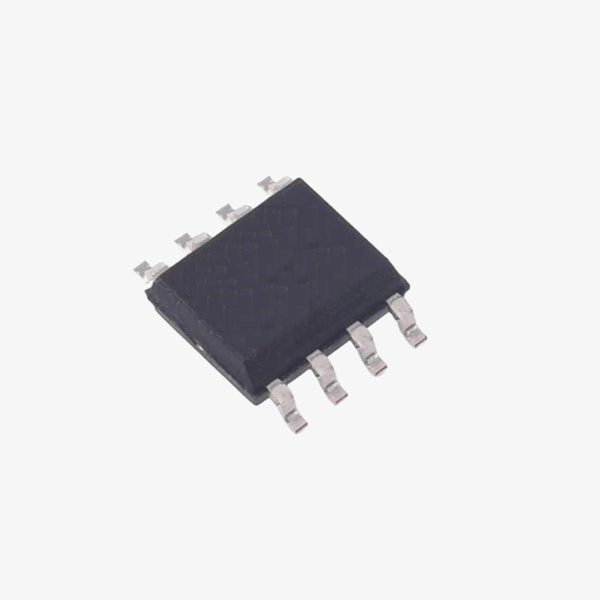

STC8G1K08A-36I-SOP8 SMD STC Microcontroller

The STC8G1K08A-36I-SOP8 is a highly efficient 8-bit microcontroller from STC Micro, designed to meet the needs of modern embedded applications. Encased in a compact SOP8 surface-mount package, this microcontroller delivers powerful performance and a rich set of features, making it an excellent choice for a variety of electronic projects and industrial applications.

1. High-Performance 8-Bit CPU:

   • Based on an enhanced 8051 core, the STC8G1K08A-36I-SOP8 offers robust processing capabilities and efficient operation, suitable for diverse applications requiring reliable control and processing.

2. Surface-Mount Package (SOP8):

   • The SOP8 package provides a compact and space-saving solution, ideal for applications where PCB space is limited and high-density mounting is required.

3. In-System Programming (ISP):

   • The built-in ISP capability allows for convenient programming and reprogramming of the microcontroller directly in the circuit, simplifying the development and debugging process.

4. High-Speed Operation:

   • Capable of operating at speeds up to 36MHz, the microcontroller ensures fast and efficient execution of instructions, making it suitable for time-sensitive applications.

5. Low Power Consumption:

   • Designed for energy efficiency, the STC8G1K08A-36I-SOP8 features various power-saving modes, making it an ideal choice for battery-operated and low-power applications.

6. Versatile I/O Options:

   • Equipped with multiple I/O ports, the microcontroller can interface with a wide range of peripherals, sensors, and other devices, enhancing its flexibility and functionality.

7. Rich Set of On-Chip Peripherals:

   • The microcontroller includes a variety of on-chip peripherals such as timers, ADC, PWM, UART, SPI, and I2C, providing comprehensive support for diverse application requirements.

8. Wide Operating Voltage Range:

   • With an operating voltage range of 2.0V to 5.5V, the STC8G1K08A-36I-SOP8 is compatible with a broad range of power supplies, offering flexibility in power management.

• Core: Enhanced 8051
• Operating Frequency: Up to 36MHz
• Flash Memory: 8KB
• RAM: 1KB
• I/O Ports: Multiple
• Timers: Yes
• ADC: Yes
• PWM: Yes
• Communication Interfaces: UART, SPI, I2C
• Power Supply Voltage: 2.0V to 5.5V
• Package: SOP8
