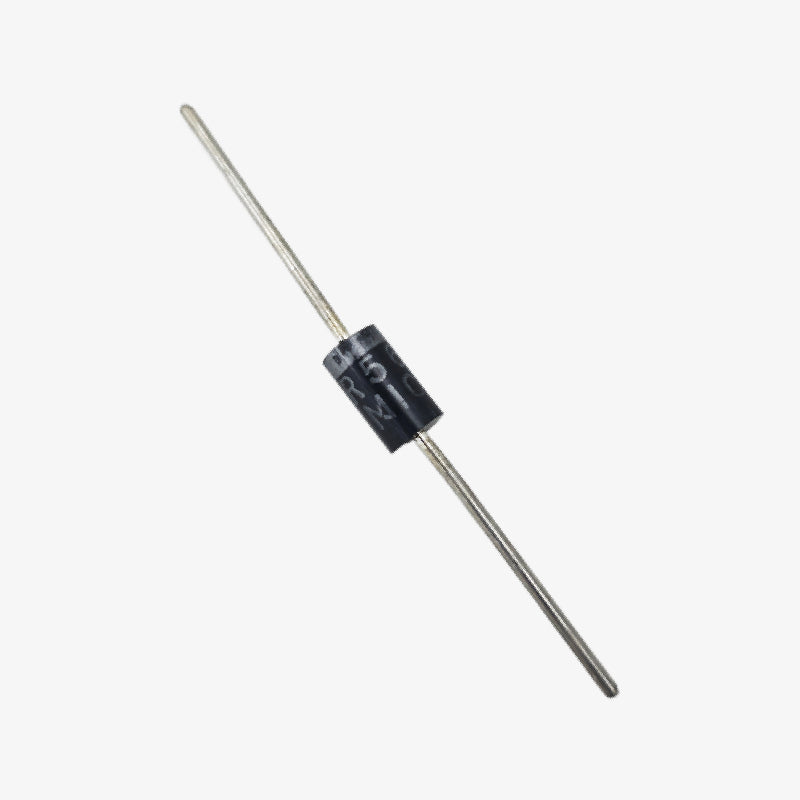

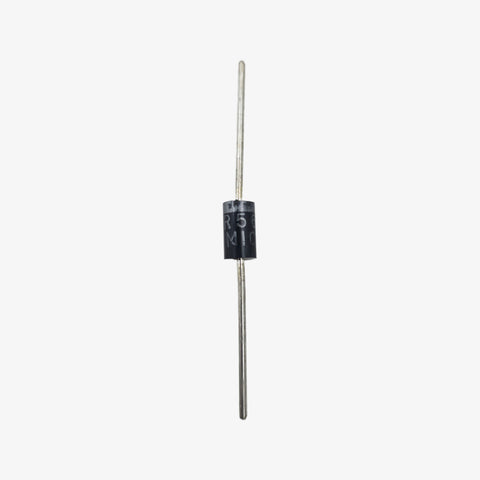

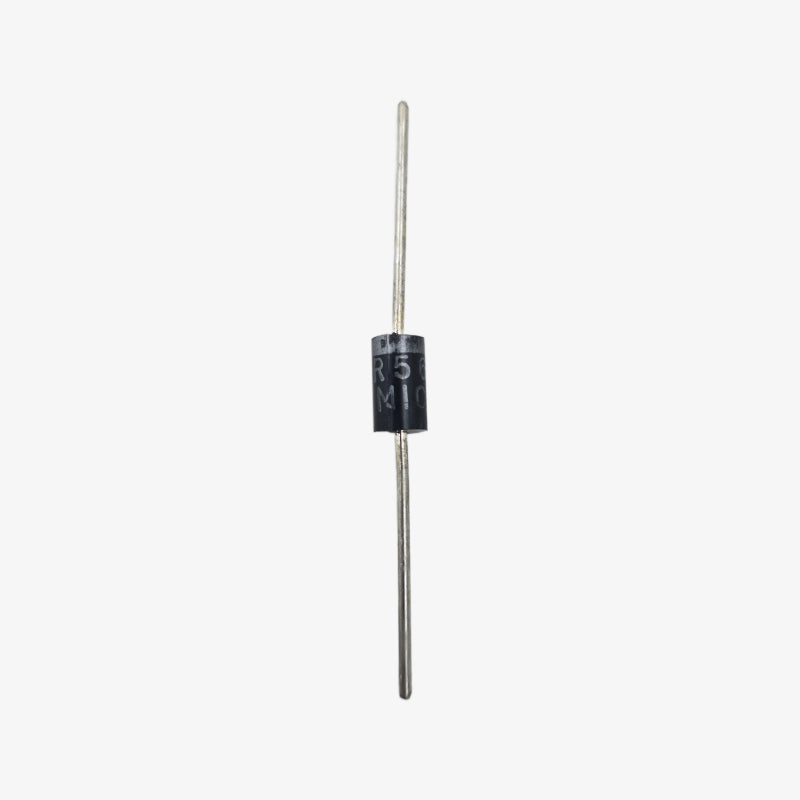

SR560 Schottky Barrier Rectifier Diode 5A
SKU:
CMP-QC3734
Availability:
1221
In Stock
- Rs. 11.00
- Rs. 11.00
- Unit price
- per
Subtotal:
Rs. 11.00
Description
xThe SR560 Schottky Rectifier Diode 5A is designed for efficient low-loss AC to DC rectification with high current capability. Its Schottky barrier construction ensures extremely low forward voltage drop and fast switching characteristics, making it ideal for power supplies, chargers, and general high-efficiency rectification applications.
Features:
- Low forward voltage drop for improved efficiency
- High current handling capability for demanding loads
- High surge current tolerance for robust operation
- Color band on cathode for easy polarity identification
Specifications:
- Maximum Repetitive Peak Reverse Voltage (VRRM): 60 V
- Maximum RMS Voltage (VRMS): 42 V
- Maximum DC Blocking Voltage (VDC): 60 V
- Maximum Average Forward Rectified Current (IF(AV)): 5.0 A
- Peak Forward Surge Current (IFSM): 150 A
- Forward Voltage (VF) at 5 A: 0.70 V
- Peak Reverse Current (IR) at 25°C: 0.5 mA
- Peak Reverse Current (IR) at 100°C: 20 mA
- Typical Junction Capacitance (CJ): 400 pF
- Thermal Resistance Junction to Ambient (RθJA): 25 °C/W
- Operating Temperature Range (TJ): -65°C to +125°C
- Storage Temperature Range (TSTG): -65°C to +125°C
Package Includes:
1 × SR560 Schottky Rectifier Diode 5A
