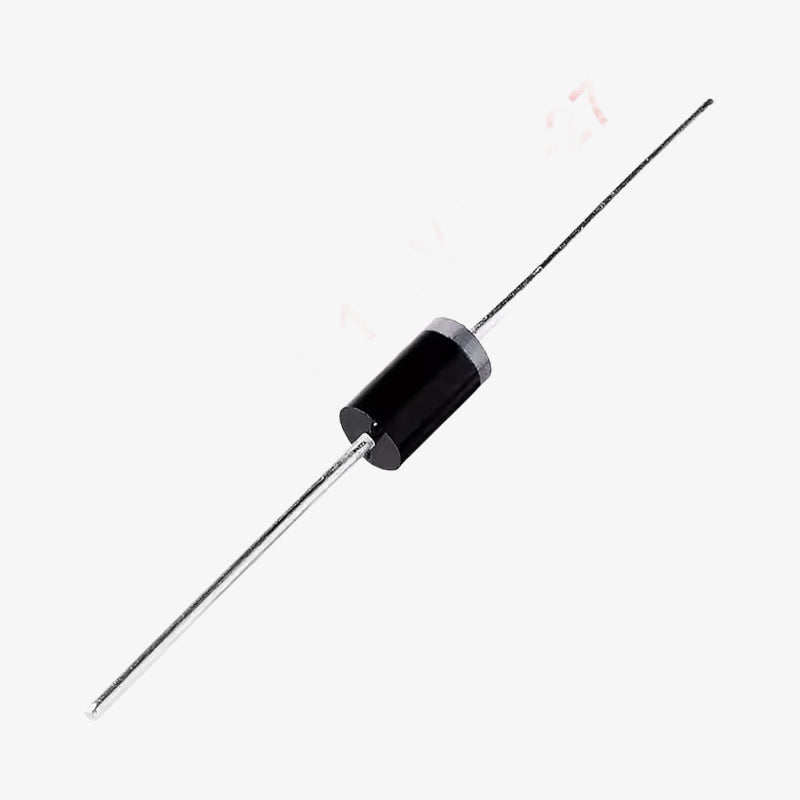

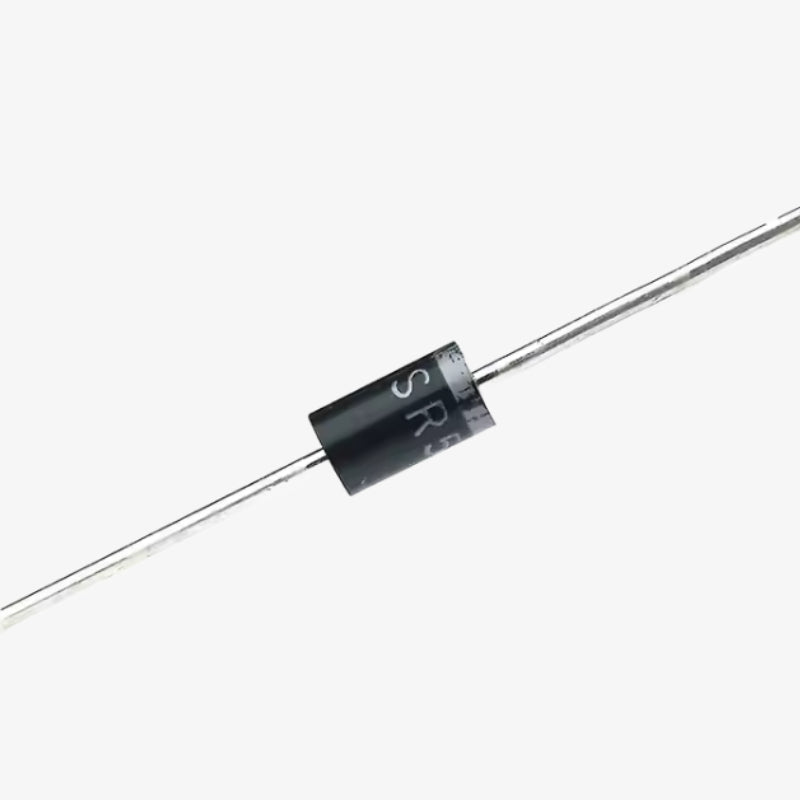

The SR5100 is a high-efficiency Schottky barrier rectifier diode designed for use in low voltage, high-frequency inverters, freewheeling, and polarity protection applications. With a forward current capacity of 5A and a reverse voltage rating of 100V, this diode offers low forward voltage drop and fast switching capabilities. This makes it ideal for switching power supplies, DC-DC converters, and battery-powered systems.
Features of SR5100 Schottky Barrier Rectifier Diode:
- Low forward voltage drop for reduced power loss
- High surge current capability
- Fast switching speed
- High reliability and low thermal resistance
- Suitable for freewheeling, polarity protection, and rectification applications
Specifications of SR5100 Schottky Barrier Rectifier Diode:
- Model: SR5100
- Diode Type: Schottky Barrier Rectifier
- Peak Reverse Voltage (VR): 100V
- Average Forward Current (IF): 5A
- Maximum Surge Current: 150A
- Forward Voltage Drop (VF): 0.85V (max) @ 5A
- Reverse Recovery Time: Very Fast
- Package Type: DO-201AD
- Operating Temperature Range: -55°C to +150°C
Package Includes:
1 × SR5100 100V 5A Schottky Barrier Rectifier Diode
