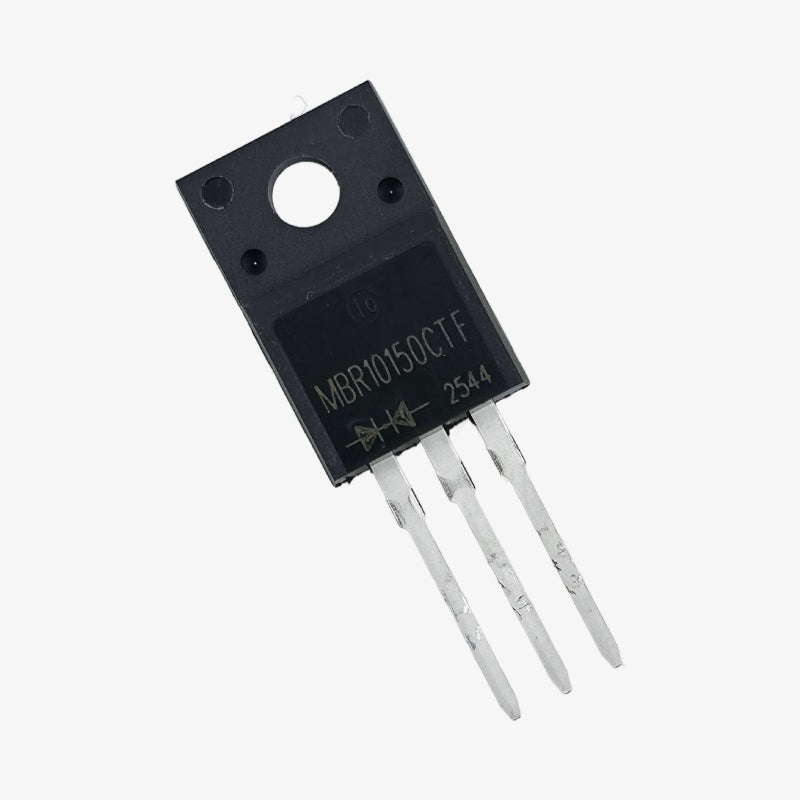

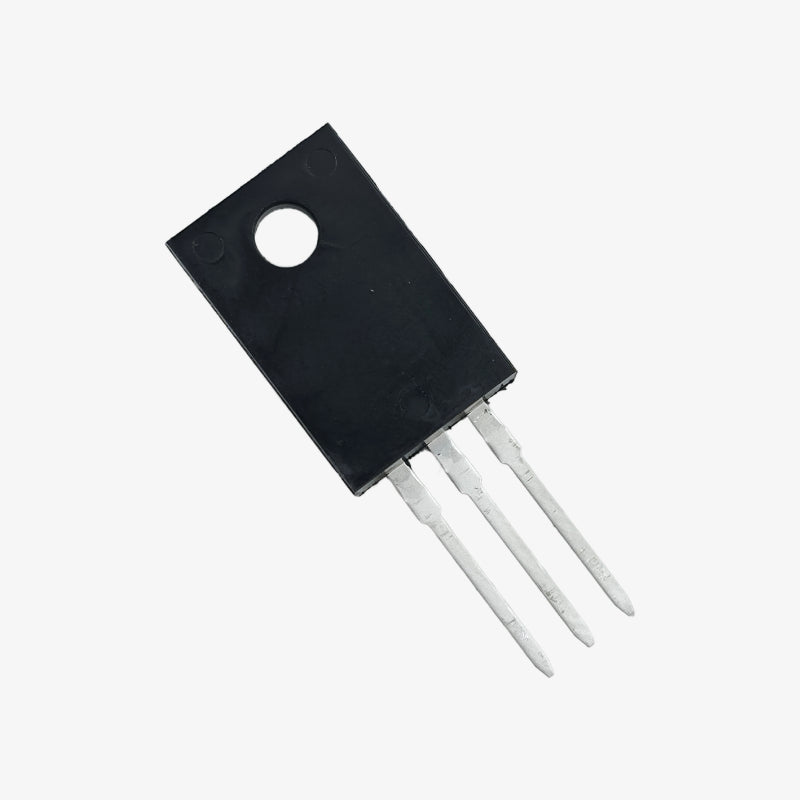

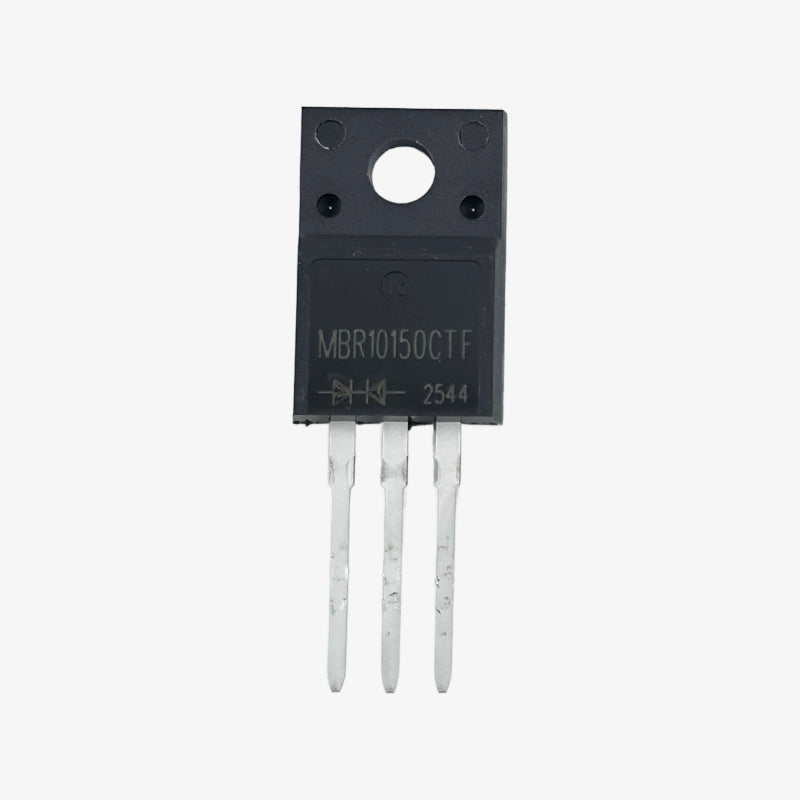

SR10150 Schottky Barrier Rectifier 10A
SKU:
CMP-QC3735
Availability:
987
In Stock
- Rs. 23.00
- Rs. 23.00
- Unit price
- per
Subtotal:
Rs. 23.00
Description
xThe SR10150 Schottky Barrier Rectifier 10A is designed for high-efficiency, low-loss AC to DC rectification. Its Schottky barrier structure provides fast switching and minimal forward voltage drop, making it ideal for power supplies, battery chargers, and high-current low-voltage systems.
Features:
- Schottky barrier chip for fast, efficient rectification
- Low forward voltage drop for reduced power loss
- High surge current capability for robust operation
- Polarity marking on package for easy identification
Specifications:
- Maximum Repetitive Peak Reverse Voltage (VRRM): 150 V
- Maximum RMS Voltage (VRMS): 105 V
- Maximum DC Blocking Voltage (VDC): 150 V
- Maximum Average Forward Rectified Current (IF(AV)): 10 A
- Peak Forward Surge Current (IFSM): 110 A
- Forward Voltage (VF): 0.85 V
- Peak Reverse Current (IR) at 25°C: 0.1 mA
- Peak Reverse Current (IR) at 100°C: 20 mA
- Typical Junction Capacitance (CJ): 200 pF
- Typical Thermal Resistance (RθJA): 2.0 °C/W
- Operating Temperature Range (TJ): -55°C to +175°C
- Storage Temperature Range (TSTG): -55°C to +175°C
-

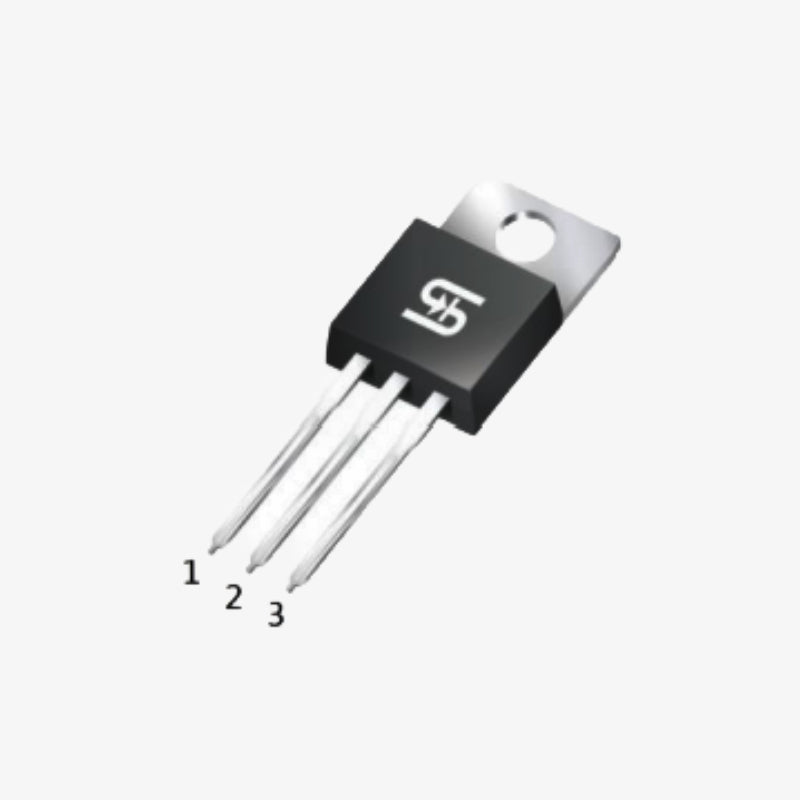

TO-220-3 Package
Package Includes:
1 × SR10150 Schottky Barrier Rectifier 10A
