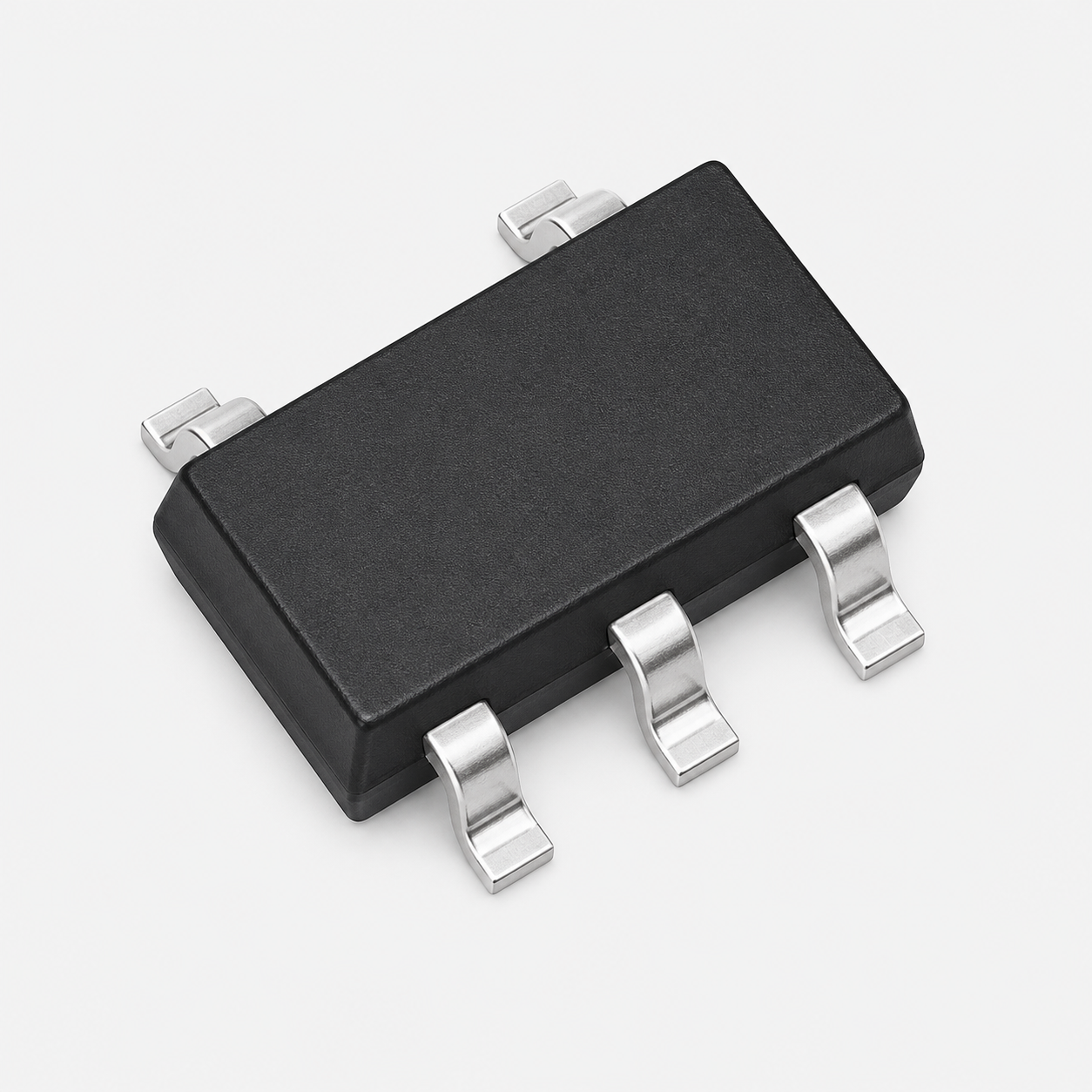

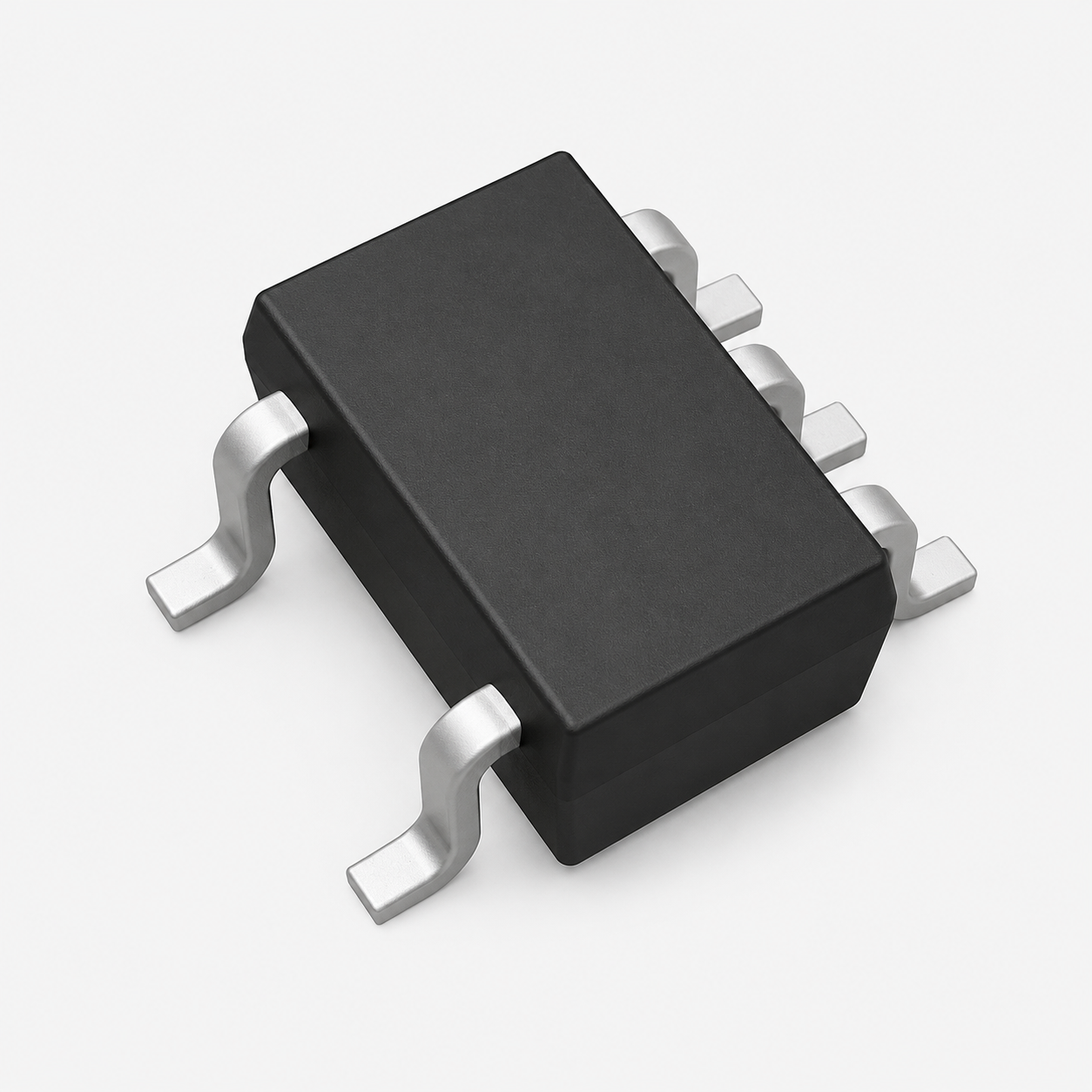

SN74LVC1GU04DBVT 74LVC1G04 Logic Single Inverter IC - SOT-23 Pakage
SKU:
SMD-QC5912
Availability:
500
In Stock
-
- Rs. 8.00
- Unit price
- per
Subtotal:
Rs. 8.00
Description
xSN74LVC1GU04DBVT 74LVC1G04 Logic Single Inverter IC - SOT-23 Package is a high-speed, low-power single unbuffered inverter designed for digital logic applications requiring reliable signal inversion and fast switching performance. Operating from a wide 1.65V to 5.5V supply range, it features CMOS-compatible inputs, overvoltage-tolerant input pins, and low propagation delay, making it ideal for signal conditioning, oscillator circuits, embedded systems, industrial control, and portable electronics.
SN74LVC1GU04DBVT 74LVC1G04 Logic Single Inverter IC - SOT-23 Pakage Datasheet
Features:
- Single Unbuffered Inverter Gate
- Wide Operating Voltage Range
- Supports 5V Logic Systems
- High-Speed Switching Performance
- Low Power Consumption
- Overvoltage-Tolerant Inputs
- Unbuffered Output Design
- High Output Drive Capability
- Live Insertion & Partial Power-Down Support
- ESD Protected Inputs and Outputs
- Suitable for Oscillator, Logic, and Signal Processing Applications
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Logic Inverter IC |
| Part Number | SN74LVC1GU04DBVT |
| Logic Function | Single Inverter |
| Package | SOT-23-5 |
| Supply Voltage | 1.65V–5.5V |
| Input Voltage | 0V–5.5V |
| Logic Family | LVC CMOS |
| Propagation Delay | 3.7ns (Max @ 3.3V) |
| Output Drive | ±24mA @ 3.3V |
| Input Capacitance | 7pF (Typ.) |
| Operating Temperature | -40°C to +125°C |
Pin Configuration:
| Pin | Name | Description |
|---|---|---|
| 1 | NC | No Connection |
| 2 | A | Input |
| 3 | GND | Ground |
| 4 | Y | Inverted Output |
| 5 | VCC | Supply Voltage |
