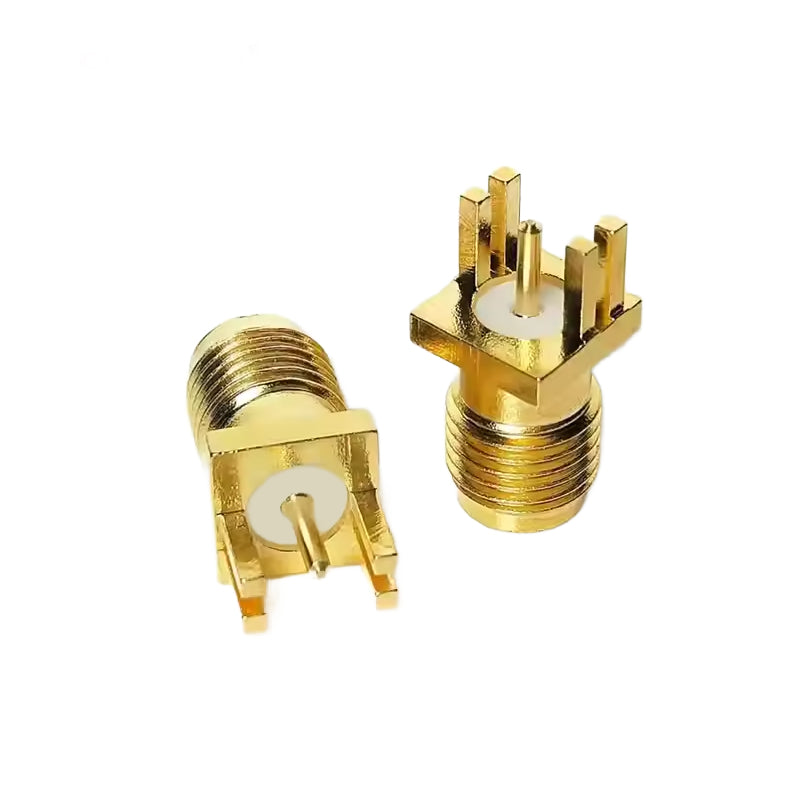

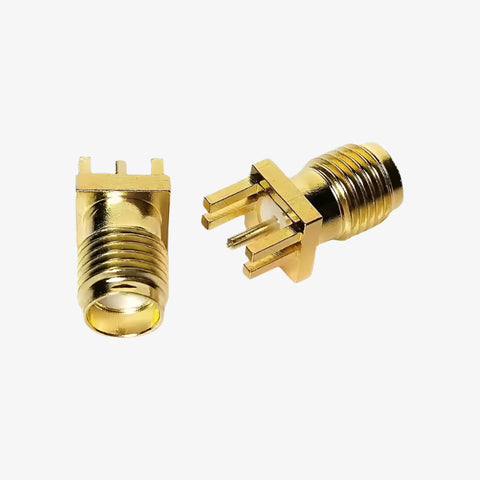

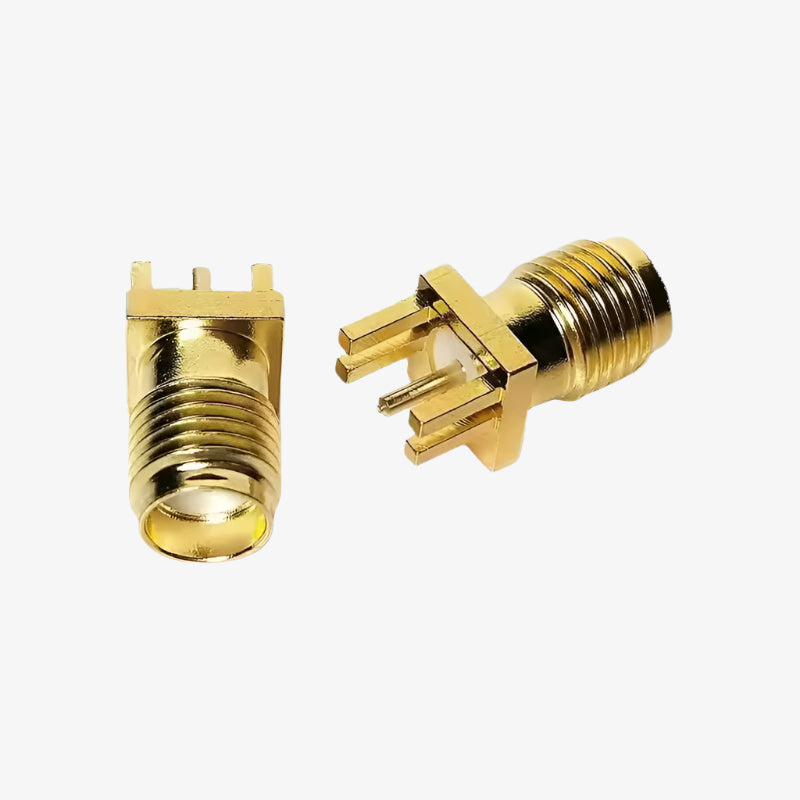

The SMA Female Straight Edge PCB Mount Connector is designed for seamless integration with 1.6mm thick PCBs, offering a reliable and secure RF connection for various high-frequency applications. This connector is ideal for RF projects involving antennas, transmitters, receivers, or test equipment. Its gold-plated contacts ensure low signal loss and corrosion resistance, making it a dependable component in wireless and RF communication setups.
Features of SMA Female Straight Edge PCB Mount Connector:
- SMA Female connector with straight edge mount
- Specifically designed for 1.6mm thick PCBs
- Provides robust RF connection up to GHz frequency range
- Gold-plated contacts for excellent conductivity and durability
- Easy to solder and mount on the PCB edge
- Suitable for antennas, Wi-Fi, GPS, GSM, and RF modules
Specifications of SMA Female Straight Edge PCB Mount Connector:
- Connector Type: SMA Female (Straight)
- Mount Type: Edge mount for 1.6mm PCB
- Frequency Range: DC to 6GHz
- Impedance: 50 ohms
- Contact Material: Brass with gold plating
- Body Material: Brass with nickel plating
- PCB Thickness Compatibility: 1.6mm
- Operating Temperature: -40°C to +85°C
Package Includes:
1 x SMA Female Straight Edge PCB Mount Connector for 1.6mm PCB
