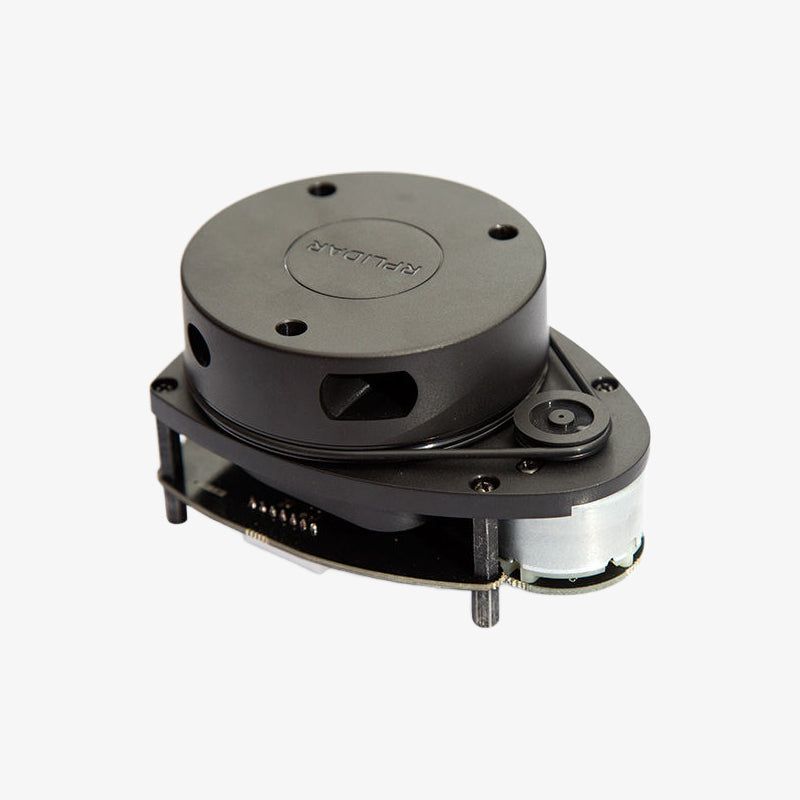

SLAMTEC RPLiDAR A1M8 360 Degree Laser Range Finder Module - 6m Radius Range

The SLAMTEC RPLiDAR A1M8 is a 360-degree 2D laser range finder designed for robotics, mapping, obstacle avoidance, SLAM navigation, and environmental scanning. Using a high-speed laser scanning system, it provides real-time distance measurements within a 6-meter radius and delivers stable rotation speed for accurate environmental modeling. Its compact design and USB/UART interface make it suitable for mobile robots, AGVs, service robots, drones, and research projects.

Features:

1. 360° omnidirectional laser scanning
2. 6m radius ranging capability
3. High-speed sampling up to 8000 samples/sec
4. Class 1 eye-safe infrared laser
5. Lightweight and compact design for mobile robots
6. Low-power operation suitable for battery-powered devices
7. Real-time mapping and SLAM compatible
8. Stable rotation motor with adjustable speed
9. UART & USB interface support
10. Ideal for robotics, navigation, and obstacle detection

Specifications:

• Model: RPLiDAR A1M8
• Scan Mode: 360° continuous rotation
• Maximum Range: 6 meters
• Scan Frequency: 5–10 Hz
• Sampling Rate: Up to 8000 samples/s
• Output Format: 2D distance data
• Laser Type: Class 1 (eye-safe)
• Interface: UART / USB (via adapter)
• Supply Voltage: 5V
• Power Consumption: Low power
• Operating Temperature: 0°C to +40°C
• Dimensions: Compact sensor unit (as per standard A1M8 design)

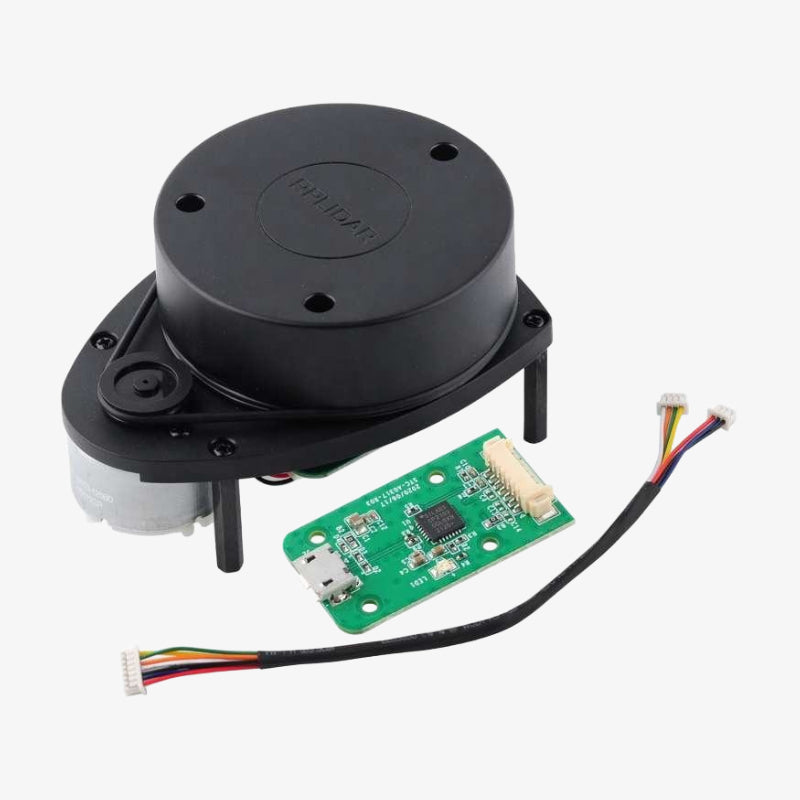

Package Includes:

1 × SLAMTEC RPLiDAR A1M8 Laser Range Finder

1 × Motor/Scanner Module

1 × Connection Cable
