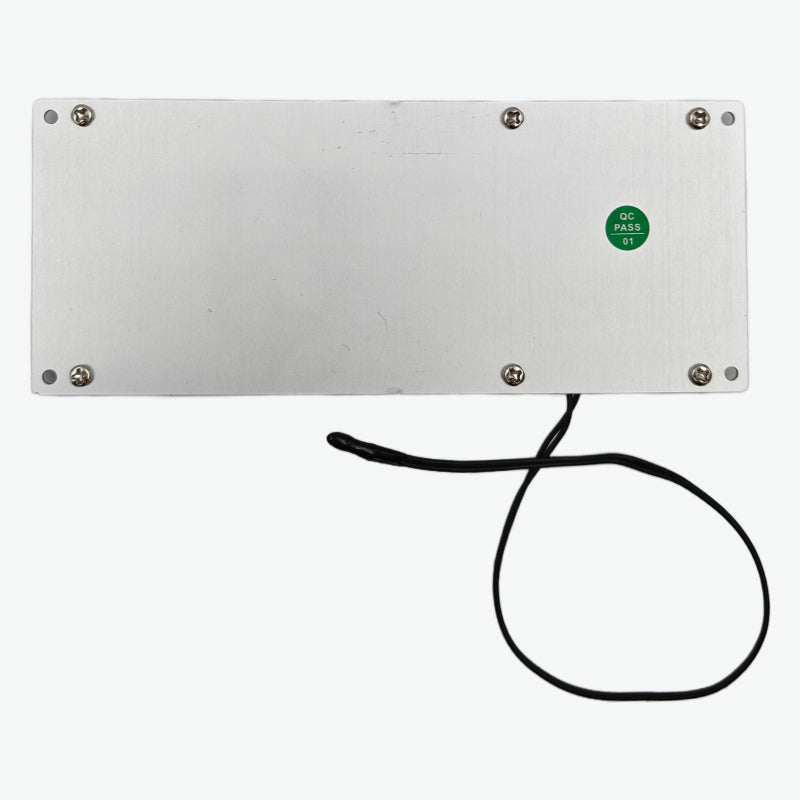

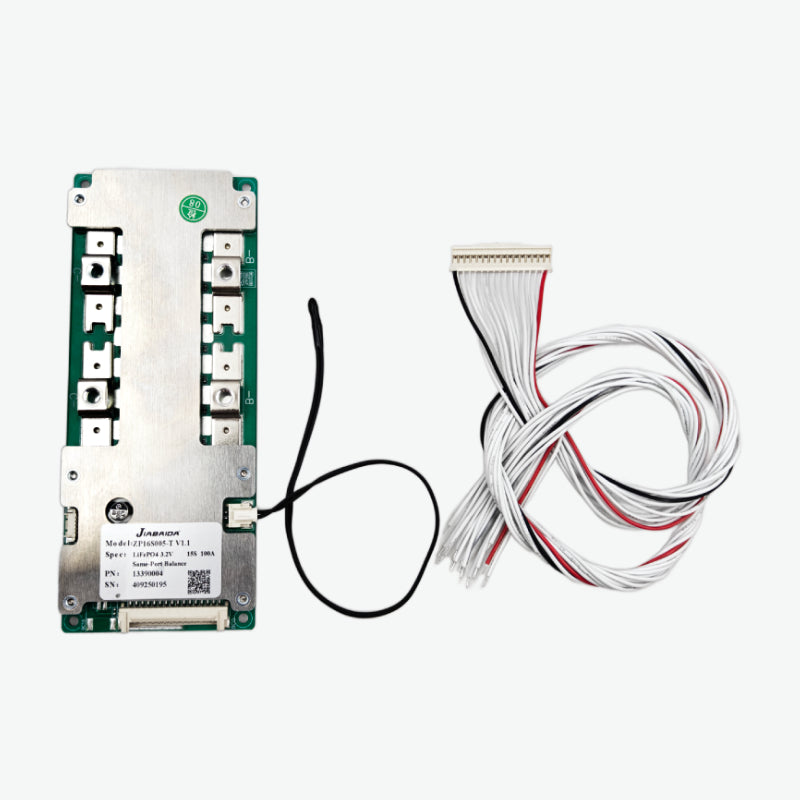

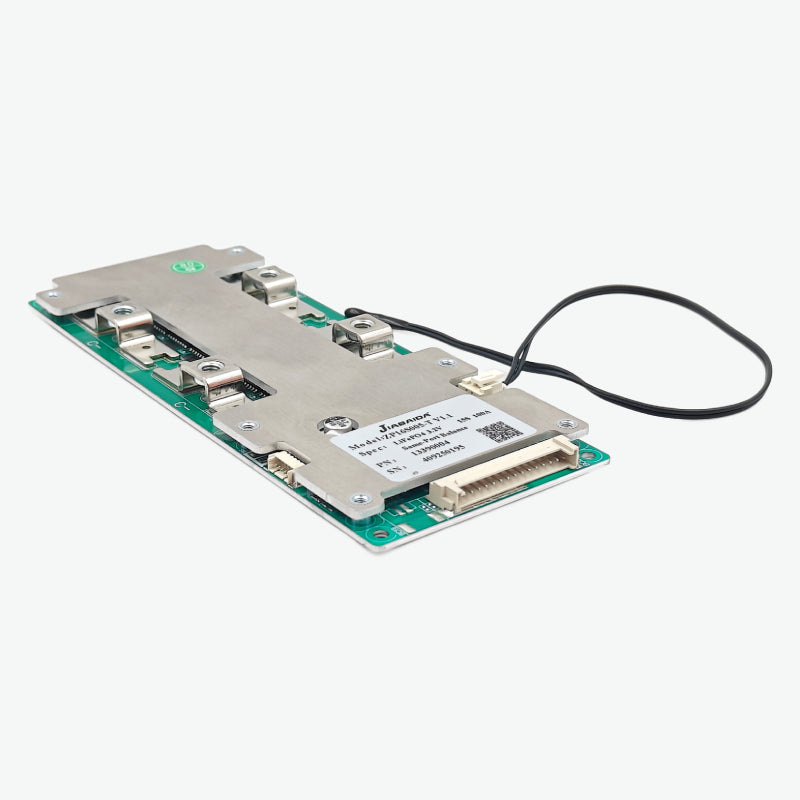

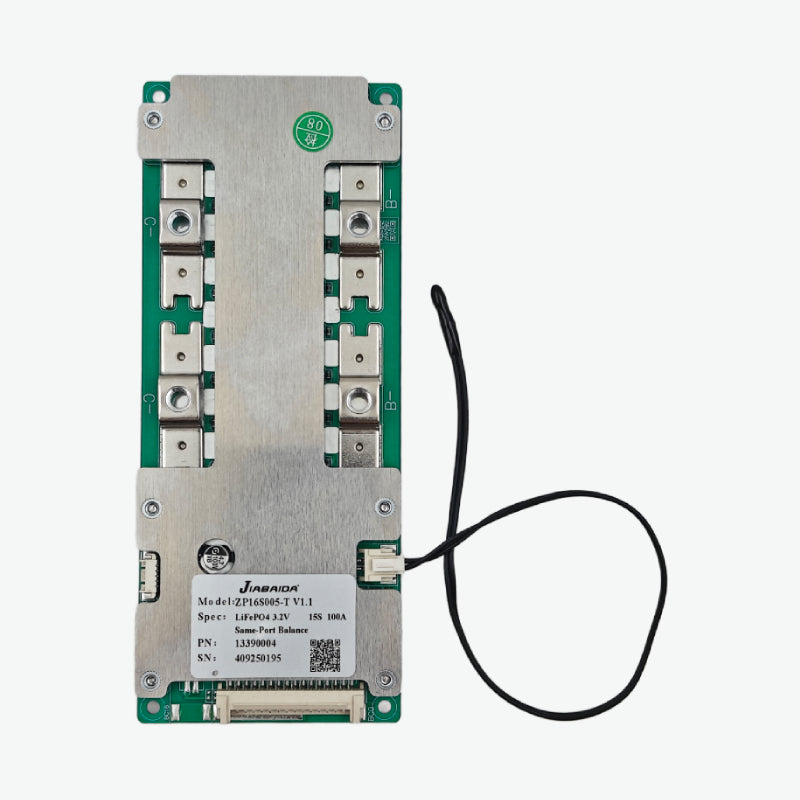

Jiabaida (JBD) LiFePo4 15S 48V 100A Battery Management System - BMS Protection Board
SKU:
BCL-QC3075
Availability:
13
In Stock
- Rs. 2,980.00
- Rs. 2,980.00
- Unit price
- per
Subtotal:
Rs. 2,980.00
Description
xJiabaida (JBD) LiFePo4 15S 48V 100A BMS is a high-performance Battery Management System built on the ZP16S005 hardware, tailored for 15-cell LiFePo4 battery packs in high-load applications. It features passive balancing, and robust multi-level protection including overcharge, over-discharge, overcurrent, and short-circuit safeguards. Designed to deliver reliable and efficient battery management, this BMS is ideal for electric vehicles, solar energy storage, and high-capacity power tools.
Jiabaida (JBD) LiFePo4 15S 48V 100A BMS Features:
- High 100A continuous discharge capability
- Intelligent passive cell balancing
- Protection against over-voltage, under-voltage, overcurrent, and short circuit
- ZP16S005 hardware ensures stable, accurate operation
- Ideal for high-demand LiFePo4 battery systems
Jiabaida (JBD) LiFePo4 15S 48V 100A BMS Specification:
| Specification | Value |
|---|---|
| Model | ZP16S005 |
| Supported Cells | 15S (LiFePo4) |
| Nominal Voltage (V) | 48V |
| Charge Voltage (V) | 54.75V |
| Charge Current (A) | 30A |
| Continuous Discharge Current (A) | 100A |
| Balance Current (mA) | 30 ±5 |
| Overcharge Detect Voltage (V) | 3.75 ±0.05 |
| Overcharge Release Voltage (V) | 3.55 ±0.05 |
| Over Discharge Detect Voltage (V) | 2.20 ±0.1 |
| Over Discharge Release Voltage (V) | 2.50 ±0.1 |
| Operating Temperature (°C) | -20 to 70 |
| Dimensions (mm) | 160 x 65 x 8 |
Package Includes:
1 x Jiabaida (JBD) LiFePo4 15S 48V 100A Battery Management System - BMS Protection Board
