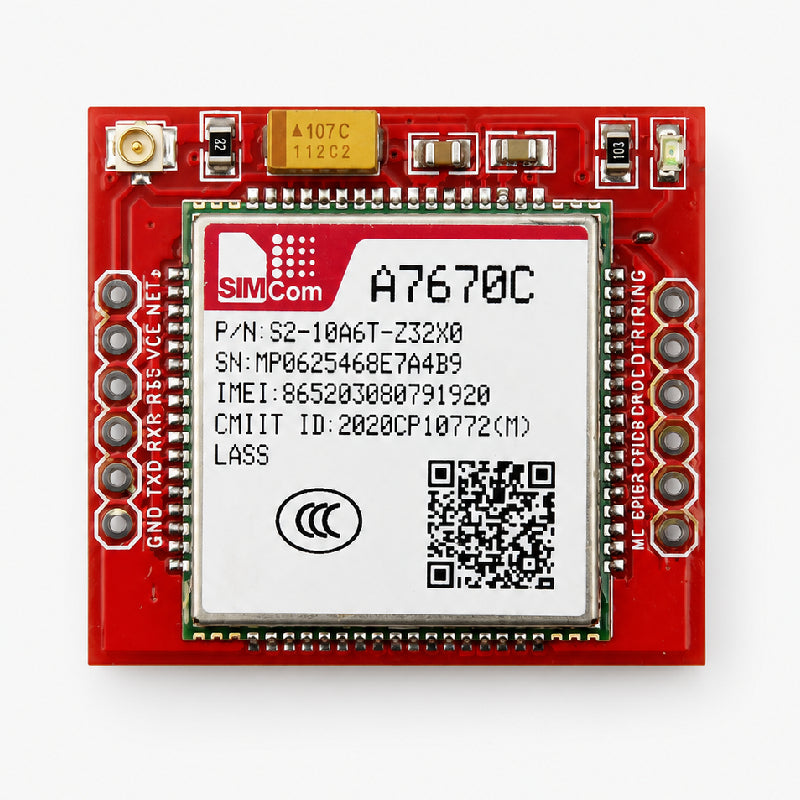

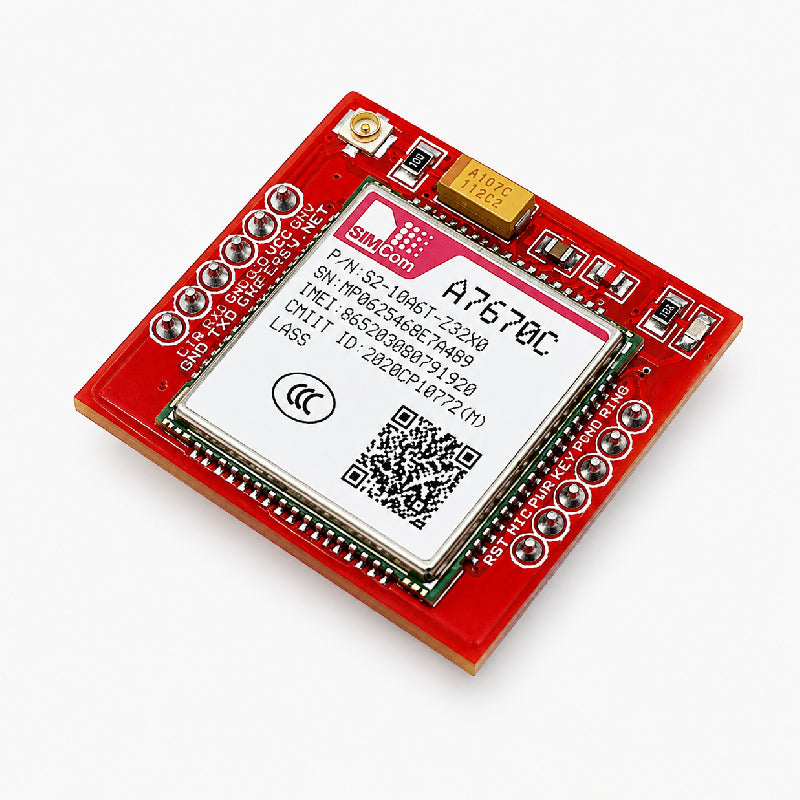

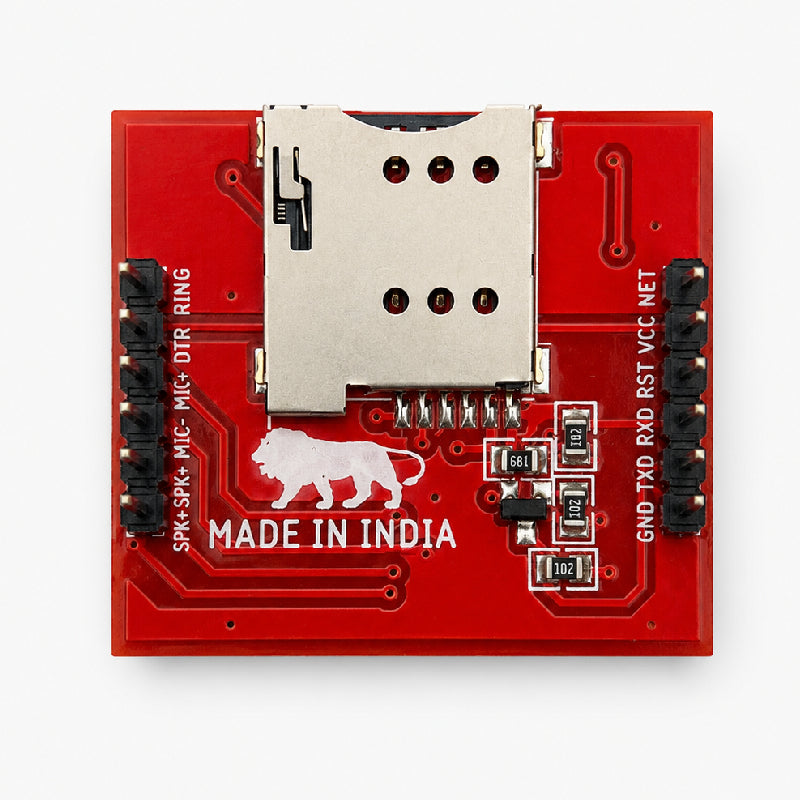

SIMA7670C 4G GSM Breakout Board (Red PCB)
SKU:
MOD-QC5837
Availability:
50
In Stock
-
- Rs. 985.00
- Unit price
- per
Subtotal:
Rs. 985.00
Description
xSIMA7670C 4G GSM Breakout Board (Red PCB) is a high-performance Cat-1 LTE development board designed for IoT, telecommunication, remote monitoring, GPS tracking, and embedded applications. Powered by the SIMCOM A7670C 4G LTE module, it supports LTE-TDD and LTE-FDD communication modes, offering reliable high-speed wireless connectivity and easy integration with microcontrollers and computers through a serial interface.
Features:
- Cat-1 LTE Communication Module
- Supports LTE-TDD and LTE-FDD Networks
- Up to 10Mbps Downlink Speed
- Up to 5Mbps Uplink Speed
- On-Board SIMCOM A7670C 4G LTE Chip
- Serial Interface for Easy Communication
- AT Command Control Support
- Low Power Consumption Design
- Sleep Mode Support
- Compatible with Windows, Linux, and Android
- Suitable for IoT and Embedded Applications
Specifications:
| Parameter | Value |
|---|---|
| Product Type | 4G GSM Breakout Board |
| Module | SIMCOM A7670C |
| Network Type | 4G LTE Cat-1 |
| Communication Mode | LTE-TDD / LTE-FDD |
| Input Voltage | 3.4V – 4.2V DC |
| Downlink Speed | Up to 10 Mbps |
| Uplink Speed | Up to 5 Mbps |
| Interface | UART Serial |
| Control Method | AT Commands |
| Maximum Current Consumption | 300 mA |
| Sleep Mode Current | < 10 mA |
| Supported Operating Systems | Windows 7 / 8 / 10, Linux, Android |
| PCB Color | Red |
Also Check These Product:-
SIMA7670C 4G GSM Breakout Board
SIMA7670E 2G/4G GSM Breakout Board
SIM800C USB to GSM GPRS Module with Bluetooth Computer Control
Package Includes:
1 x SIMA7670C 4G GSM Breakout Board (Red PCB)
