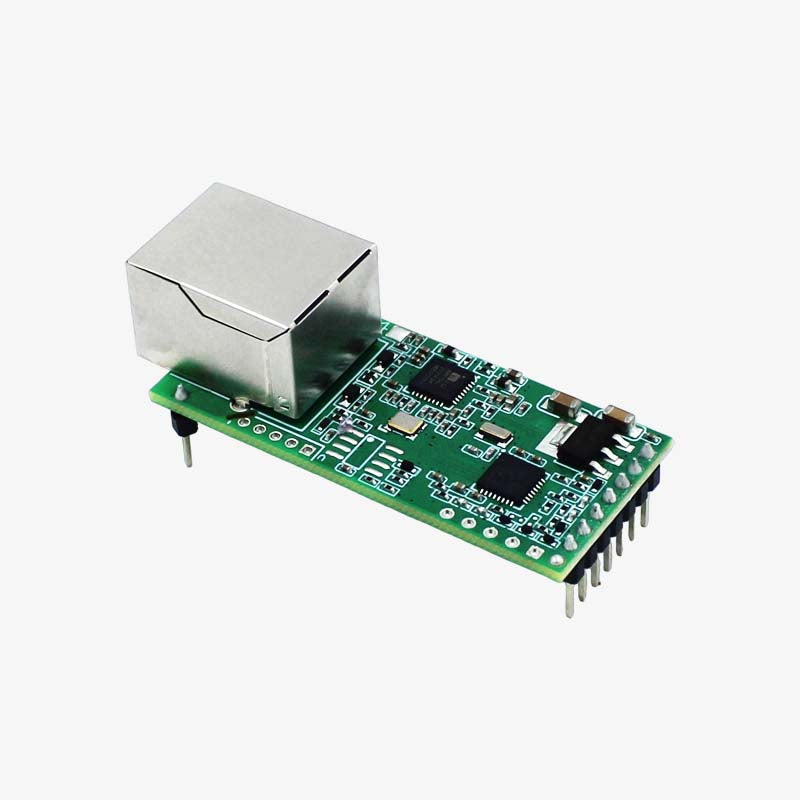

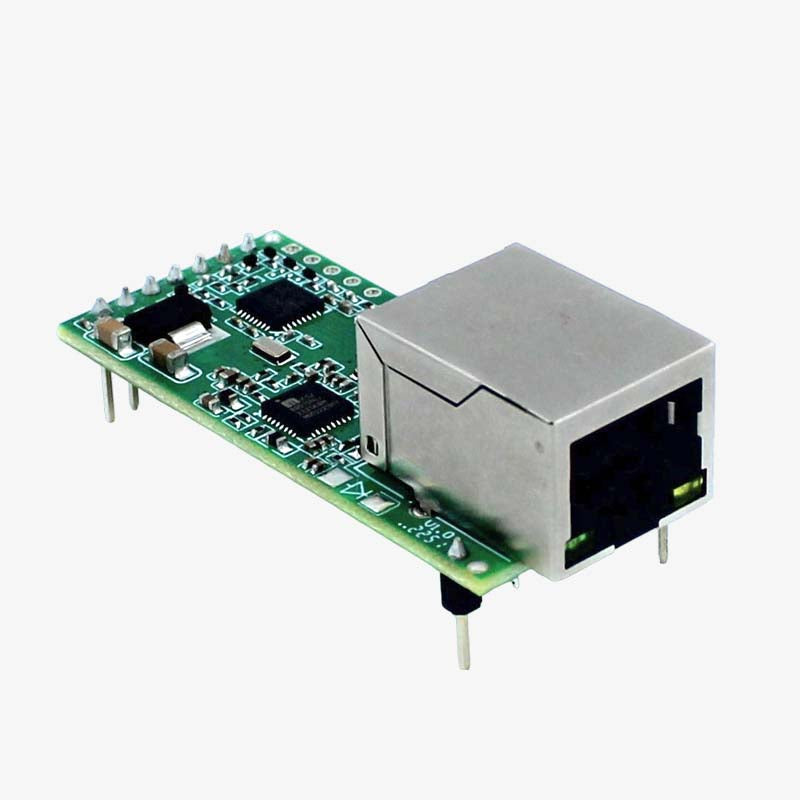

USR-TCP232-T2 UART TTL/ Serial to Ethernet Converter Module - RJ45 Ethernet UART TTL Module

Upgrade your connectivity with the UART TTL/Serial to Ethernet Converter USR-TCP232-T2 Module. This advanced module allows you to seamlessly bridge the gap between UART serial communication and Ethernet networks. Transform your devices into network-enabled powerhouses, enabling remote access and control. Ideal for industrial automation, remote monitoring, and IoT applications, this module opens up a world of possibilities for seamless data exchange. Experience reliable and efficient communication with the USR-TCP232-T2 Module.

Features:

1. DHCP &DNS, automatically obtain an IP address and query IP address through serial setting protocol
2. Set parameters through webpage and serial AT command
3. Upgrade firmware via network
4. Auto-MDI/MDIX, RJ45 port with 10/100Mbps
5. Serial port baud rate from 600 bps to 460.8 Kbps, Check bit of None,Odd,Even,Mark and Space
6. Work mode: TCP Server, TCP Client, UDP Client, UDP Server, httpsD Client
7. Support virtual serial port and provide corresponding software USR-VCOM
8. Heartbeat package mechanism to ensure connection is reliable, put an end to dead link
9. User-defined registration package mechanism, check connection status and use as custom packet header
10. Under TCP Server mode, Client number ranges from 1 to 16; default number is 4
11. The global unique MAC address bought from IEEE, user can define MAC address
12. Provide PC TCP/IP socket programming example such as VB,C++,Delphi, Android and IOS

Specifications:

• Protection: built-in 1.5KV electromagnetic isolation

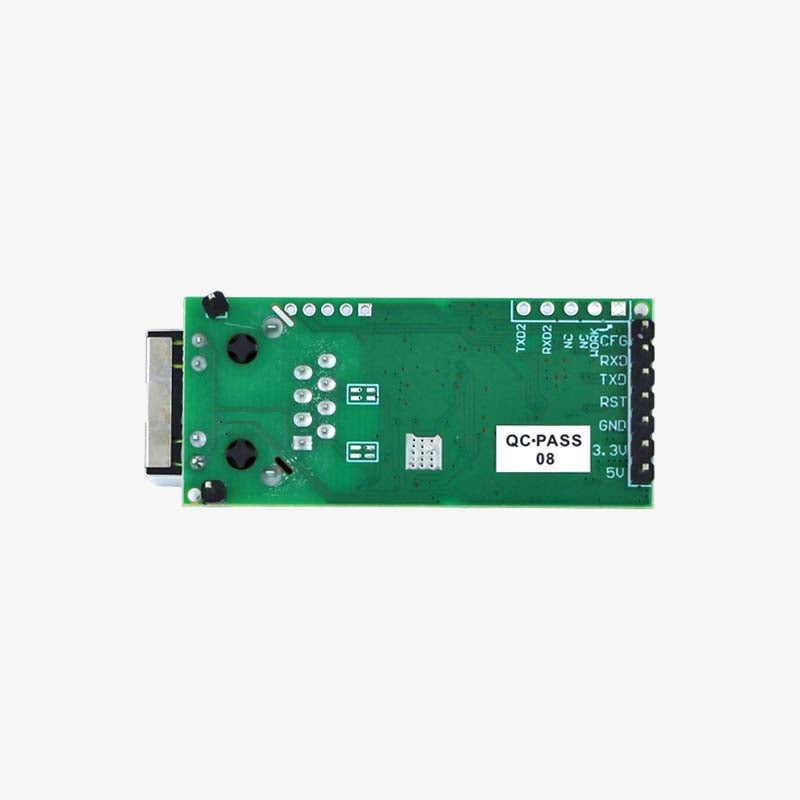

• Interface: 3.3V TTL (2.54mm pitch pinheader)
• Power supply: 3.3V DC or 5V DC (via different pin)
• Operating current: 150mA (avg)/160mA (max)
• Operating temperature: -25~75°C
• Power consumption: <1W
• Storage condition: -40~105°C, 5~95%RH
• Dimension: 55 x 22.6 x 15 (mm)

Package Includes:

1 x Serial to Ethernet Converter USR-TCP232-T2 Module
