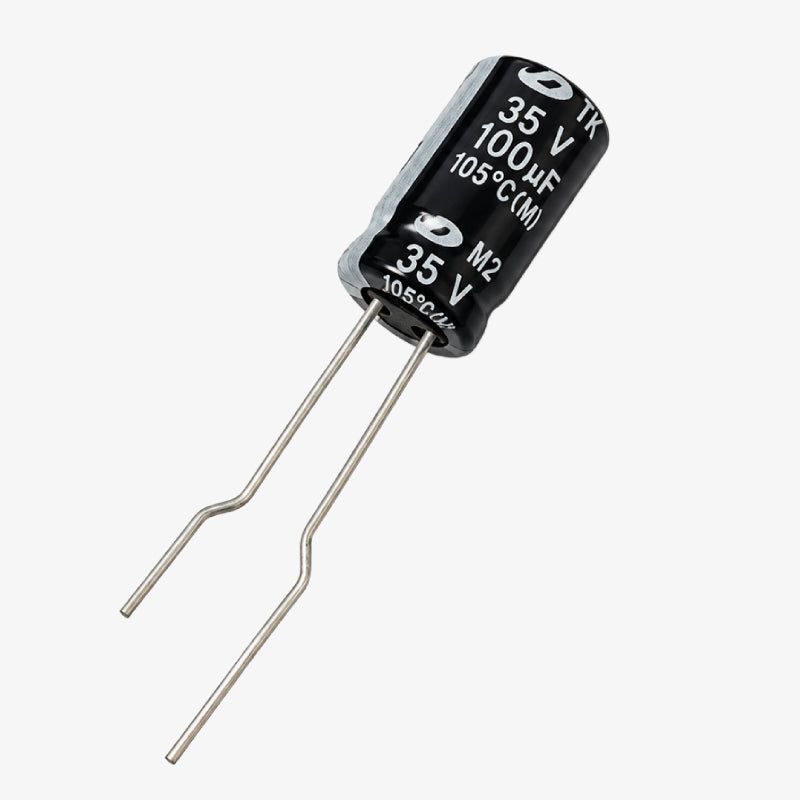

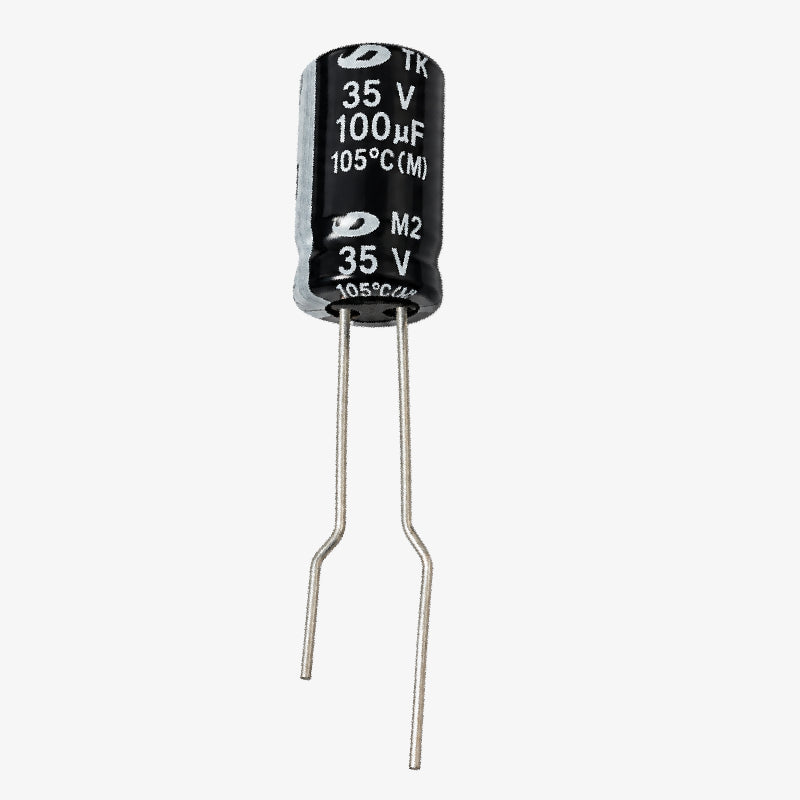

Samwha 100uF 35V Radial Electrolytic Capacitor - Through Hole Package
SKU:
CMP-QC6226
Availability:
250
In Stock
-
- Rs. 6.00
- Unit price
- per
Subtotal:
Rs. 6.00
Description
xSamwha 100uF 35V Radial Electrolytic Capacitor - Through Hole Package is a high-quality polarized aluminum electrolytic capacitor designed for power supply filtering, voltage smoothing, ripple reduction, decoupling, and energy storage. This Samwha radial capacitor features a compact through-hole design and is suitable for PCB assembly, electronic repairs, power supplies, amplifiers, and general-purpose electronic circuits.
Features:
- Genuine Samwha aluminum electrolytic capacitor.
- 100µF capacitance.
- 35V DC rated voltage.
- ±20% capacitance tolerance.
- Radial polarized construction.
- Through-hole mounting for PCB installation.
- Compact 6.3mm diameter cylindrical body.
- Approx. 11mm body height.
- 2.5mm terminal pitch.
- Suitable for power supply filtering and smoothing.
- Useful for ripple reduction and decoupling applications.
- Suitable for electronic repair, DIY projects, amplifiers, and power supply circuits.
- RoHS compliant.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Radial Electrolytic Capacitor |
| Manufacturer | Samwha |
| Series | RD |
| Capacitor Type | Aluminum Electrolytic |
| Capacitance | 100µF |
| Rated Voltage | 35V DC |
| Capacitance Tolerance | ±20% |
| Polarity | Polarized |
| Mounting Type | Through Hole / THT |
| Lead Configuration | Radial |
| Number of Terminals | 2 |
| Body Diameter | 6.3mm |
| Body Height | 11mm |
| Terminal Pitch | 2.5mm |
| Operating Temperature | -55°C to +105°C |
| Ripple Current | Approx. 160mA @ 120Hz |
| Lifetime | Approx. 2000 Hours |
| Terminal Material | Tin (Sn) |
| RoHS | Yes |
| Package Shape | Cylindrical |
| Application | Filtering, Smoothing, Decoupling, Energy Storage |
Also Check These Products:-
1000uF 10V Radial Electrolytic Capacitor - Through Hole Package
100uF 450V Radial Electrolytic Capacitor - Through Hole Package
15uF 450V Radial Electrolytic Capacitor - Through Hole Package
10uF 450V Radial Electrolytic Capacitor - Through Hole Package
Package Includes:
1 x Samwha 100uF 35V Radial Electrolytic Capacitor - Through Hole Package
