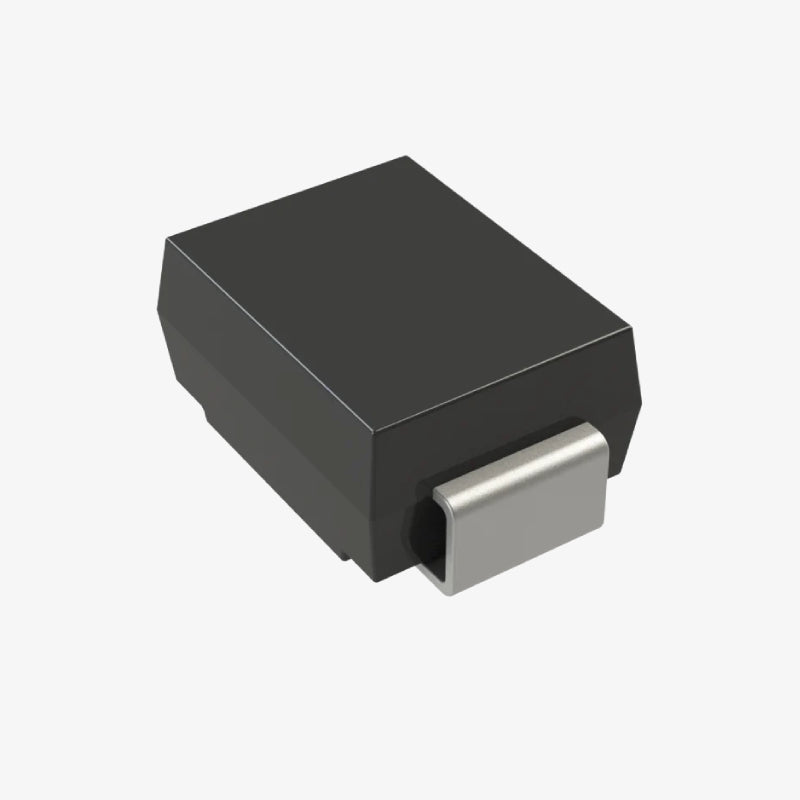

The S5M 5A Glass Passivated Rectifier - SMD Package is built for reliable AC to DC rectification in compact surface-mount applications. Its low-profile JEDEC DO-214AA package ensures stable performance for automated assembly and high-current circuits. Ideal for power supplies, inverters, and automotive or telecommunication applications.
Features:
- Low-profile SMD package suitable for automated placement
- Glass passivated chip junction for enhanced durability
- Low forward voltage drop and leakage current for efficient operation
- High forward surge capability with high-temperature soldering compliance
Specifications:
- Maximum Repetitive Peak Reverse Voltage (VRRM): 1000 V
- Maximum RMS Voltage (VRMS): 700 V
- Maximum DC Blocking Voltage (VDC): 1000 V
- Maximum Average Forward Rectified Current (IF(AV)): 5.0 A
- Peak Forward Surge Current (IFSM): 100 A
- Forward Voltage (VF) at 5 A: 0.98 – 1.10 V
- Maximum Reverse Current (IR) at 25°C: 5 µA
- Maximum Reverse Current (IR) at 125°C: 50 µA
- Typical Junction Capacitance (CJ): 60 pF
- Thermal Resistance Junction to Lead (RθJL): 20 °C/W
- Operating Temperature Range (TJ, TSTG): -55°C to +150°C
Package Includes:
10 pcs × S5M 5A Glass Passivated Rectifier - SMD Package
