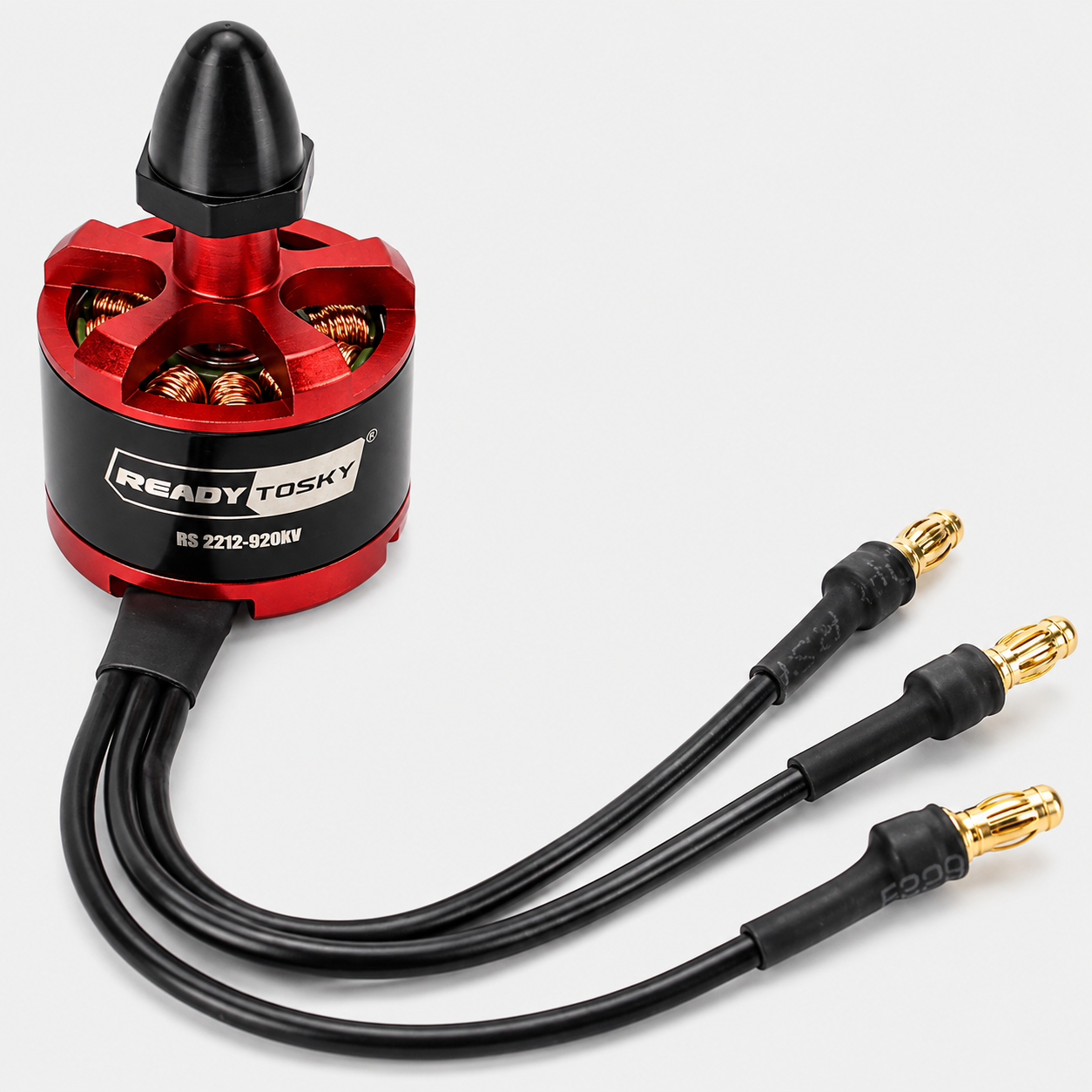

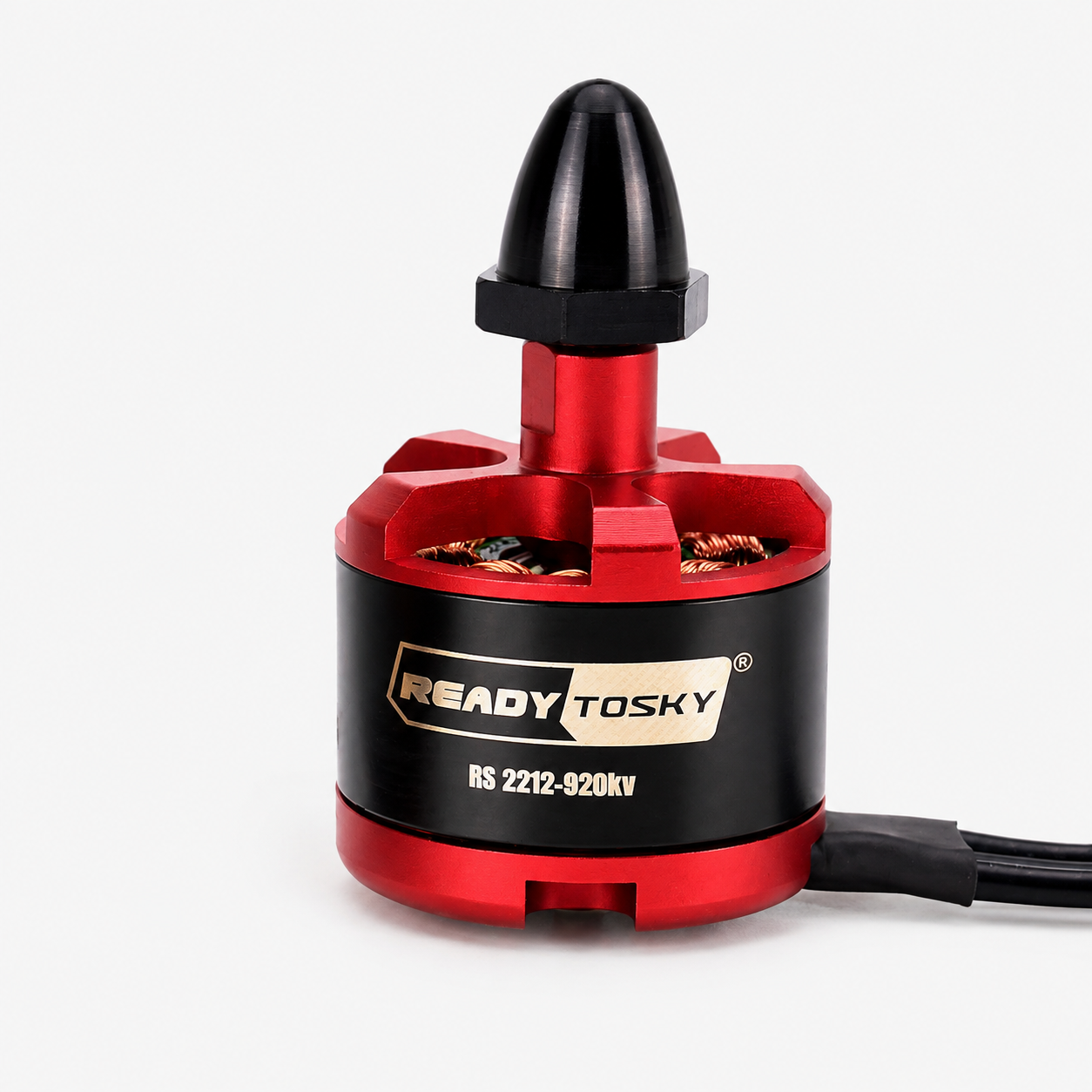

ReadyToSky RS2212 920KV Brushless High Speed DC Motor for Drone (CW)

Brand: ReadyToSky
SKU: MTR-QC6072
Availability: 20 In Stock
Rs. 662.00
Subtotal: Rs. 662.00
Description
Description
x

This RS2212 920KV Brushless High Speed DC Motor for Drone (CW) is a high-efficiency brushless outrunner motor designed for quadcopters, multicopters, fixed-wing aircraft, and other RC aerial platforms. Featuring a 920KV rating, precision-balanced rotor, and high-quality bearings, it delivers smooth operation, excellent thrust, and reliable performance. The clockwise (CW) rotation design makes it suitable for use with compatible propellers in drone propulsion systems.

Features:

  1. High-performance 920KV brushless outrunner motor.
  2. Clockwise (CW) rotation for compatible drone configurations.
  3. High-efficiency design for longer flight time.
  4. Precision-balanced rotor for smooth and stable operation.
  5. High-quality bearings reduce vibration and noise.
  6. Strong permanent magnets for improved torque and efficiency.
  7. Lightweight aluminum alloy housing.
  8. Suitable for 3S–4S LiPo battery operation.
  9. Compatible with a wide range of ESCs and propellers.
  10. Ideal for quadcopters, hexacopters, fixed-wing aircraft, and DIY drone projects.

Specifications:

Parameter Value
Product Type Brushless DC Outrunner Motor
Model RS2212
KV Rating 920KV
Rotation Direction Clockwise (CW)
Motor Configuration 12N14P
Stator Size 22 × 12mm
Shaft Diameter 3.17mm
Shaft Length Approximately 12mm
Motor Diameter 27.5mm
Motor Height 30mm
Operating Voltage 11.1V – 14.8V DC (3S–4S LiPo)
Recommended ESC 20A – 30A
Maximum Continuous Current 18A
Maximum Power 250W
Recommended Propeller 1045, 1047, 1147 (Application Dependent)
Bearing Type Dual Precision Ball Bearings
Mounting Hole Pattern 16 × 19mm
Connector Type 3-Phase Silicone Wires
Weight Approximately 55g
Applications Quadcopters, Hexacopters, Multirotors, Fixed-Wing RC Aircraft, UAVs, DIY Drone Projects


Also Check These Out:

5010 750KV High Torque Brushless Motor for Drone

RS2205 2300KV Brushless High Speed DC Motor for Drone (CW)

RS2205 2300KV Brushless High Speed DC Motor for Drone (CCW)

RS2205 2700KV Brushless High Speed DC Motor for Drone (CCW)

Package Includes:

1 × ReadyToSky RS2212 920KV Brushless High Speed DC Motor for Drone (CW)
