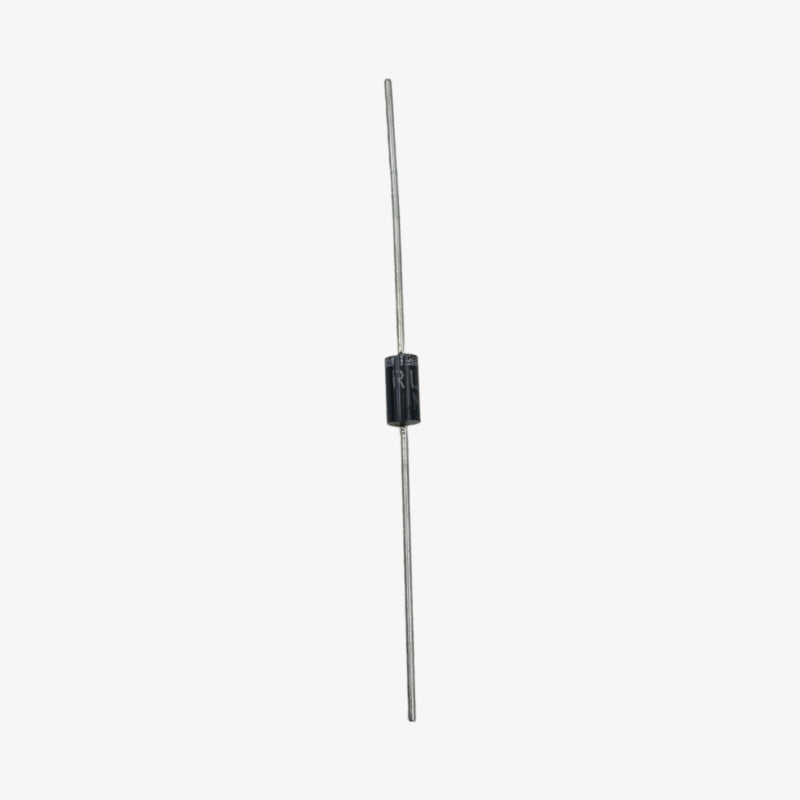

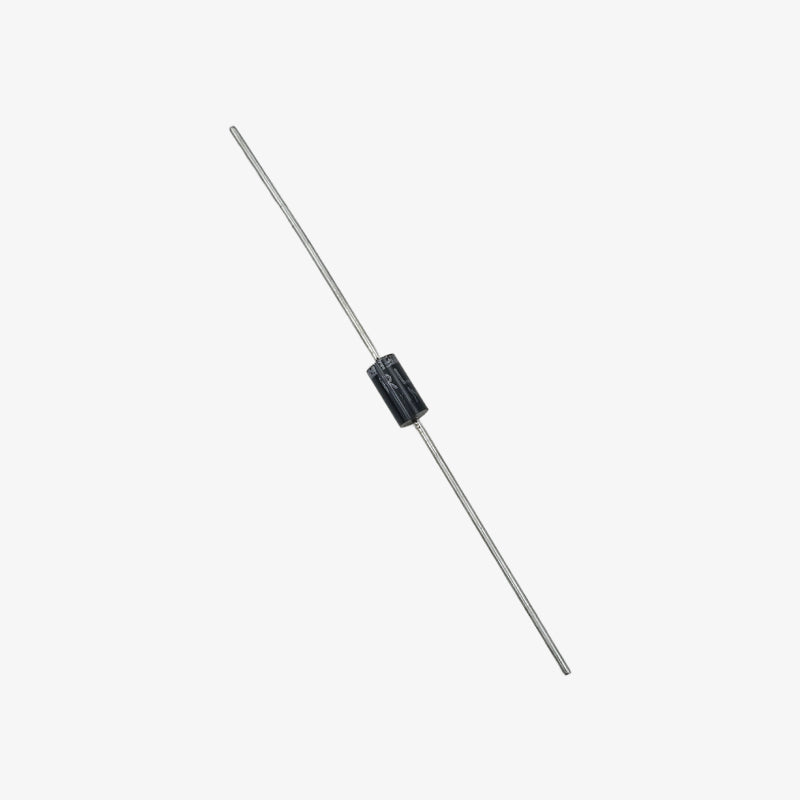

The RL207 General Purpose Silicon Rectifier Diode 2A is designed for dependable AC to DC rectification in general power applications. Its molded DO-15 body ensures consistent thermal stability under varied load conditions. Ideal for adapters, chargers, and low frequency rectifier circuits.
Features:
- Provides strong 2A rectification for medium-power conversion tasks
- Maintains stable conduction with controlled forward voltage behavior
- Constructed with a durable DO-15 body for improved thermal reliability
- Engineered with flame-retardant materials for enhanced operational safety
Specifications:
- Maximum Peak Reverse Voltage (VRRM): 1000 V
- Maximum RMS Voltage: 700 V
- Maximum DC Blocking Voltage: 1000 V
- Average Forward Rectified Current (IO): 2.0 A
- Peak Forward Surge Current (IFSM): 70 A
- Forward Voltage at 2A (VF): 1.0 V
- Peak Reverse Current at 25°C (IR): 5 µA
- Peak Reverse Current at 100°C (IR): 50 µA
- Typical Junction Capacitance: 20 pF
- Thermal Resistance (RθJA): 40 °C/W
- Operating Temperature Range: -65°C to +125°C
- Package Type: DO-15 molded plastic
- Packing Qty: 3000
Package Includes:
1 × RL207 General Purpose Silicon Rectifier Diode 2A
