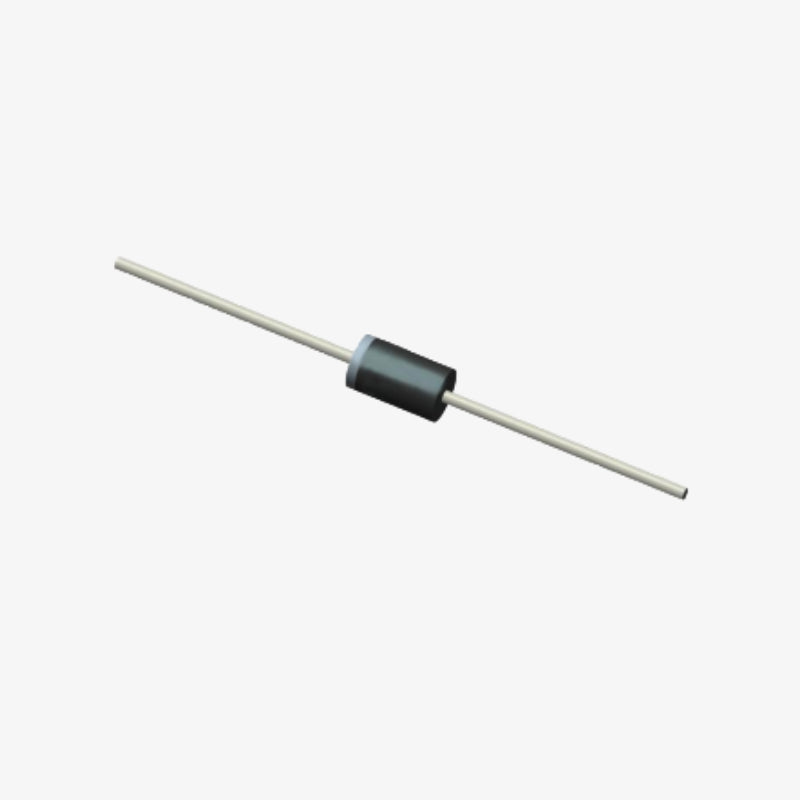

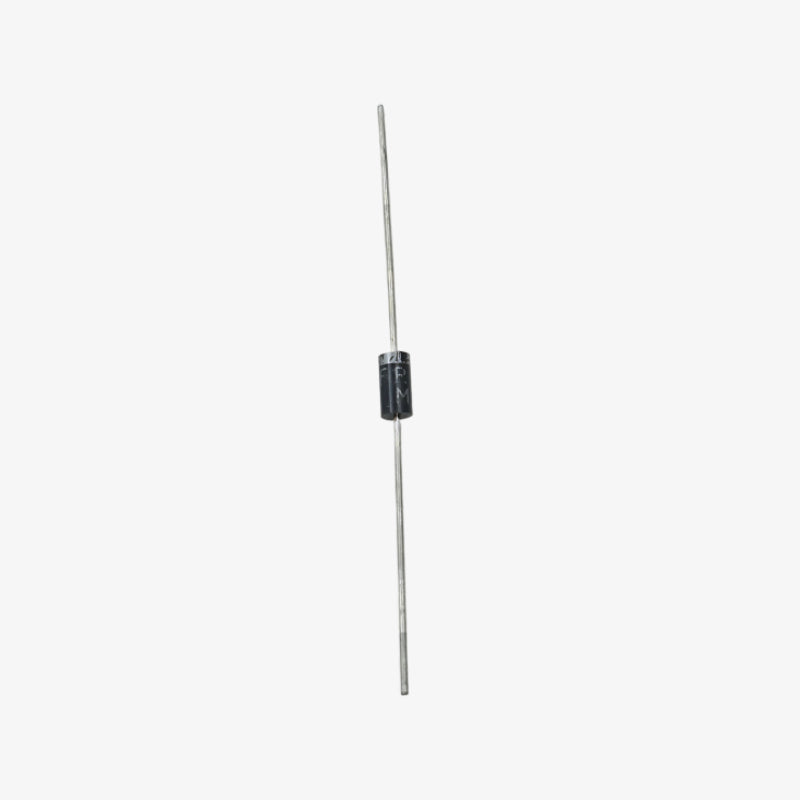

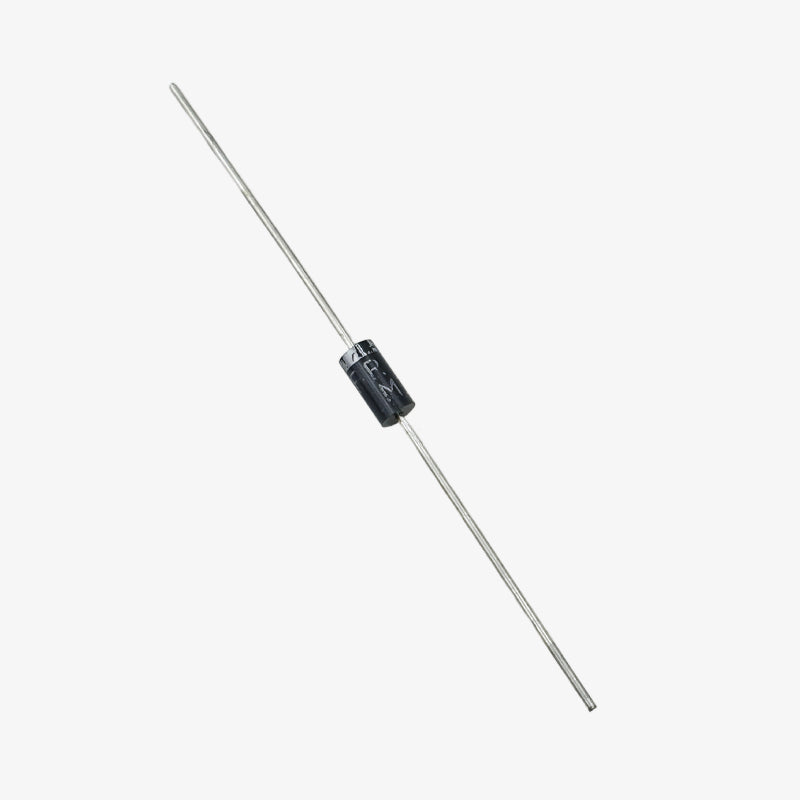

RL157 General Purpose Silicon Rectifier Diode 1.5A
SKU:
CMP-QC3706
Availability:
2980
In Stock
- Rs. 3.00
- Rs. 3.00
- Unit price
- per
Subtotal:
Rs. 3.00
Description
xThe RL157 General Purpose Silicon Rectifier Diode 1.5A is built for stable AC to DC rectification in standard power applications. Its molded structure ensures dependable operation across varied loads. Ideal for chargers, adapters, and low-frequency rectifier circuits.
Features:
- Supports high-current rectification with reliable overload endurance
- Delivers stable performance with low forward voltage characteristics
- Built with a molded DO-15 body offering strong thermal and mechanical stability
- Designed with flame-retardant UL 94V-0 epoxy for enhanced safety
Specifications:
- Maximum Peak Reverse Voltage (VRRM): 1000 V
- Maximum RMS Voltage: 700 V
- Maximum DC Blocking Voltage: 1000 V
- Average Forward Rectified Current (IAV): 1.5 A
- Peak Forward Surge Current (IFSM): 50 A
- Instantaneous Forward Voltage at 1.5A (VF): 1.0 V
- DC Reverse Current at 25°C (IR): 5 µA
- DC Reverse Current at 100°C (IR): 50 µA
- Typical Junction Capacitance: 20 pF
- Typical Thermal Resistance (RθJA): 50 °C/W
- Operating Temperature Range: -65°C to +150°C
- Package Type: DO-15, axial leads
- Package Size: 3000pcs
Package Includes:
1 × RL157 General Purpose Silicon Rectifier Diode 1.5A
