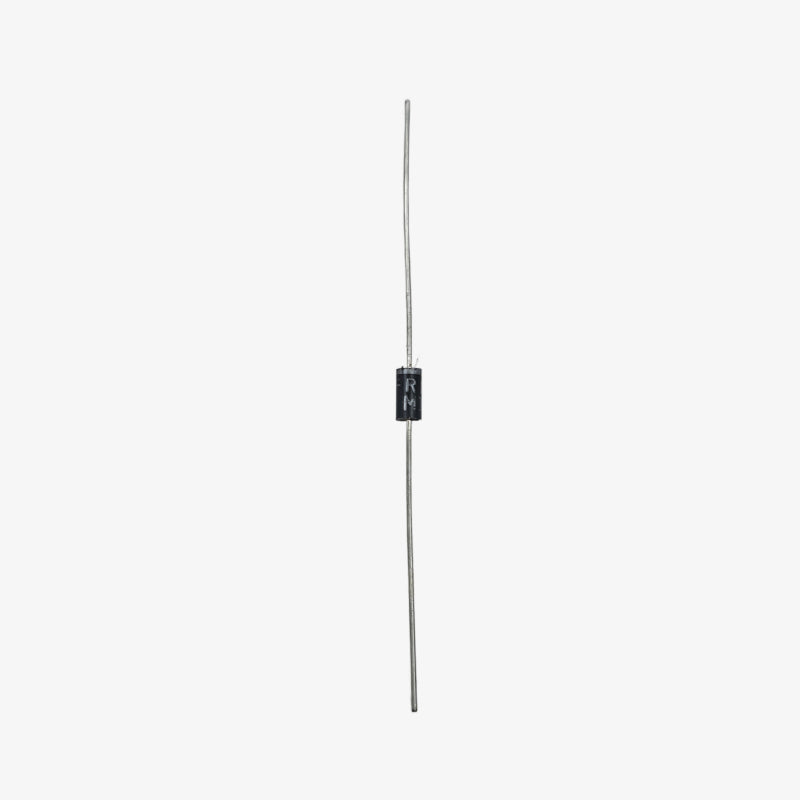

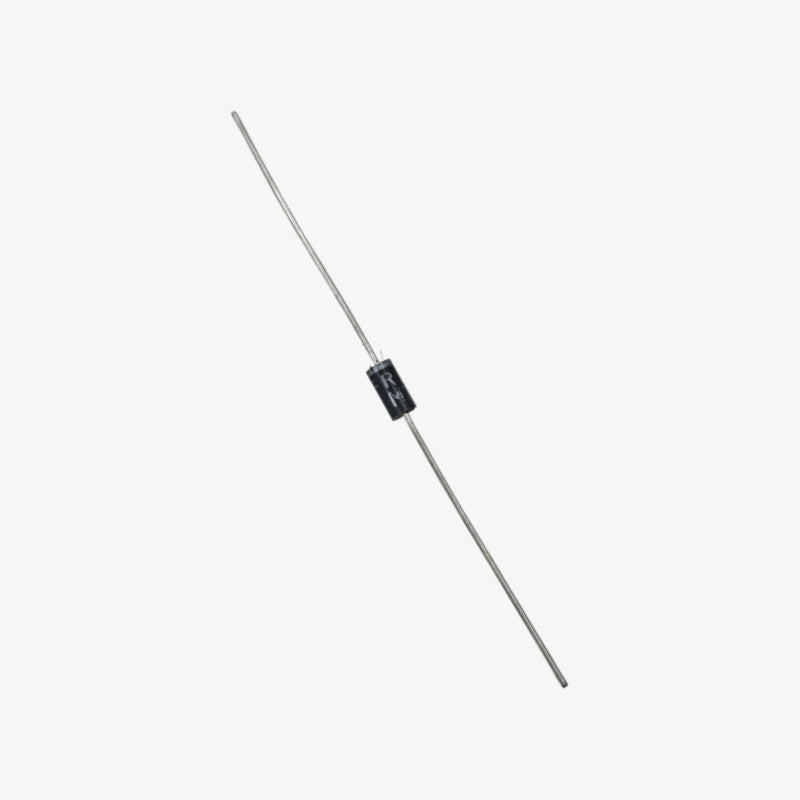

RL107 General Purpose Silicon Rectifier Diode 1A
SKU:
CMP-QC3704
Availability:
4991
In Stock
- Rs. 2.00
- Rs. 2.00
- Unit price
- per
Subtotal:
Rs. 2.00
Description
xThe RL107 General Purpose Silicon Rectifier Diode 1A is built for stable AC to DC rectification in standard power applications. Its molded structure ensures dependable operation across varied loads. Ideal for chargers, adapters, and low-frequency rectifier circuits.
Features:
- Provides reliable rectification with strong surge handling
- Maintains stable performance with low reverse leakage
- Built with a sturdy A-405 molded plastic body
- Uses Pb-Free materials with UL 94V-0 rated construction
Specifications:
- Maximum Peak Reverse Voltage (VRRM): 1000 V
- Maximum RMS Voltage (VRMS): 700 V
- Average Forward Current (IAV): 1.0 A
- Peak Forward Surge Current (IFSM): 30 A
- Forward Voltage at 1A (VF): 1.1 V
- Reverse Current (IR): 5 µA at 25°C, 50 µA at 100°C
- Junction Capacitance: 15 pF
- Thermal Resistance (RθJA): 50 °C/W
- Operating Temperature: -65 to +175 °C
Package Includes:
1 × RL107 General Purpose Silicon Rectifier Diode 1A
