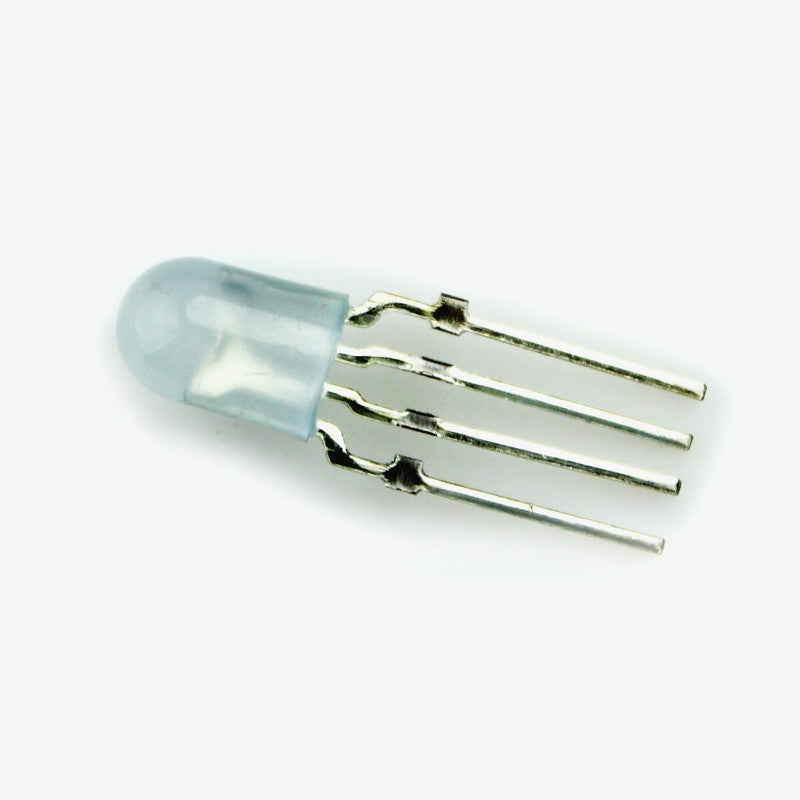

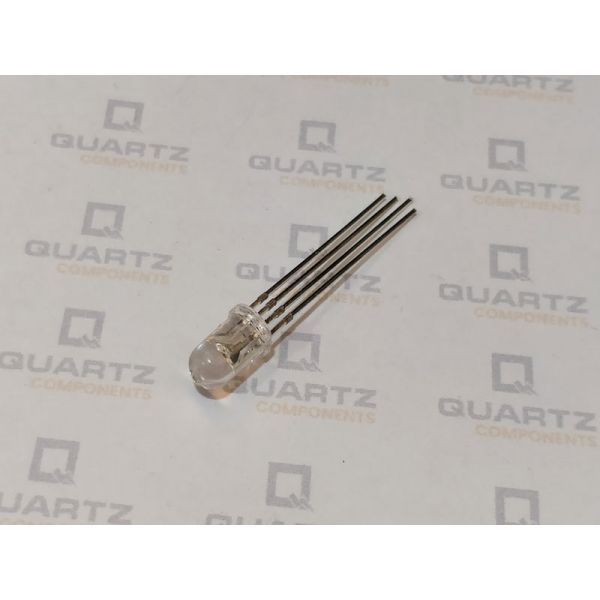

RGB LED - 5mm RGB LED - 5mm

QC0217

251 In stock

Rs. 3.00
-
+
Rs. 3.00
(inc. GST)
[Delivery: 2 to 5 days]

The 4 leg RGB LED is an ideal component that can be used in projects that require multicolor displays. A single RGB LED serves the purpose of three individual different colour LEDs. The RGB name stands for Red colour, Blue colour, and Green colour respectively. To produce more colours, the RGB LED can colour mix the three primary colours (RGB) through Pulse Width Modulation (PWM). This component can be easily configured in a common anode connection, where the ground is connected to the positive terminal and the three other pins are connected to the negative terminal.

Pinout diagram of the RGB LED

RGB-LED


PIN DESCRIPTION of RGB LED

RGB-PIN



Specifications of RGB LED

  • Ideal for Multicolor displays
  • Low current consumption
  • 5mm diameter
  • LED Type : Water Clear/ Diffused
  • View Angle: Water Clear 360 degrees; Diffused 250 degrees
  • Luminous Flux :4-5LM
  • Operating Temperature is -24 - 85 °C
  • Wavelength :- RED : 625nm; Green: 520nm; Blue: 467nm
  • Forward Current :-  Red: 20 mA; Green: 20 mA; Blue: 20 mA
  • Forward Voltage :- Red: 1.8V – 2.2V;  Green: 3.0V – 3.4V;  Blue: 3.0 V – 3.4V
  • Luminous intensity :- Red: 800 mcd;  Green: 4000 mcd;  Blue: 900 mcd
  • To prolong the lifespan of the LED, the input current should be below 20mA.



Additional Resources

Package Includes

1 x RGB LED - 5mm
